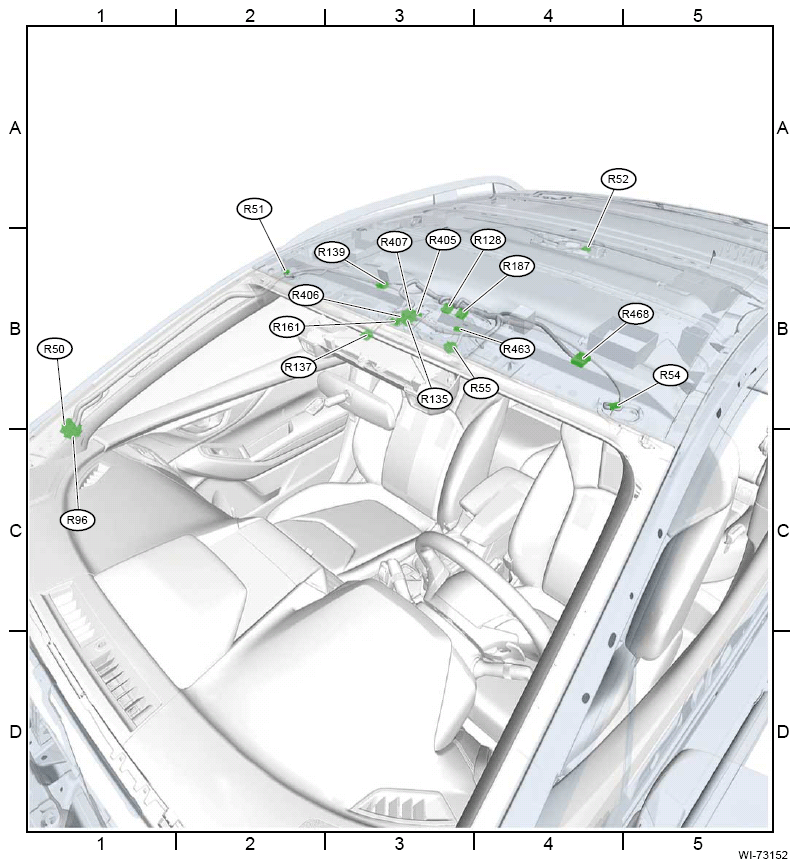

Roof Cord: Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| R50 |
18 |
|
B-1 |
i157 |
Instrument panel wiring harness |
| R51 |
2 |
|
B-2 |
|
Vanity mirror light RH |
| R52 |
3 |
|
B-4 |
|
Room light |
| R54 |
2 |
|
B-4 |
|
Vanity mirror light LH |
| R55 |
8 |
|
B-3 |
|
Sunroof unit |
| R96 |
14 |
|
C-1 |
i19 |
Instrument panel wiring harness |
| R128 |
5 |
|
B-3 |
|
Sunroof switch (slide) |
| R135 |
6 |
|
B-3 |
R406 |
Stereo camera cover adapter cord |
| R137 |
16 |
|
B-3 |
|
Stereo camera |
| R139 |
5 |
|
B-3 |
|
Rearview mirror |
| R161 |
4 |
Gr |
B-3 |
|
Warning box |
| R187 |
5 |
B |
B-3 |
|
Sunroof switch (tilt) |
| R405 |
16 |
|
B-3 |
R407 |
Stereo camera cover adapter cord |
| R406 |
6 |
Gr |
B-3 |
R135 |
Pre-collision brake off & lane departure warning off switch |
| R407 |
16 |
|
B-3 |
R405 |
Roof cord |
| R463 |
8 |
|
B-3 |
|
Telematics button |
| R468 |
16 |
|
B-4 |
AD24 |
Adapter cord |
