Remote Engine Start System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
G13614194Courtesy of SUBARU OF AMERICA, INC.

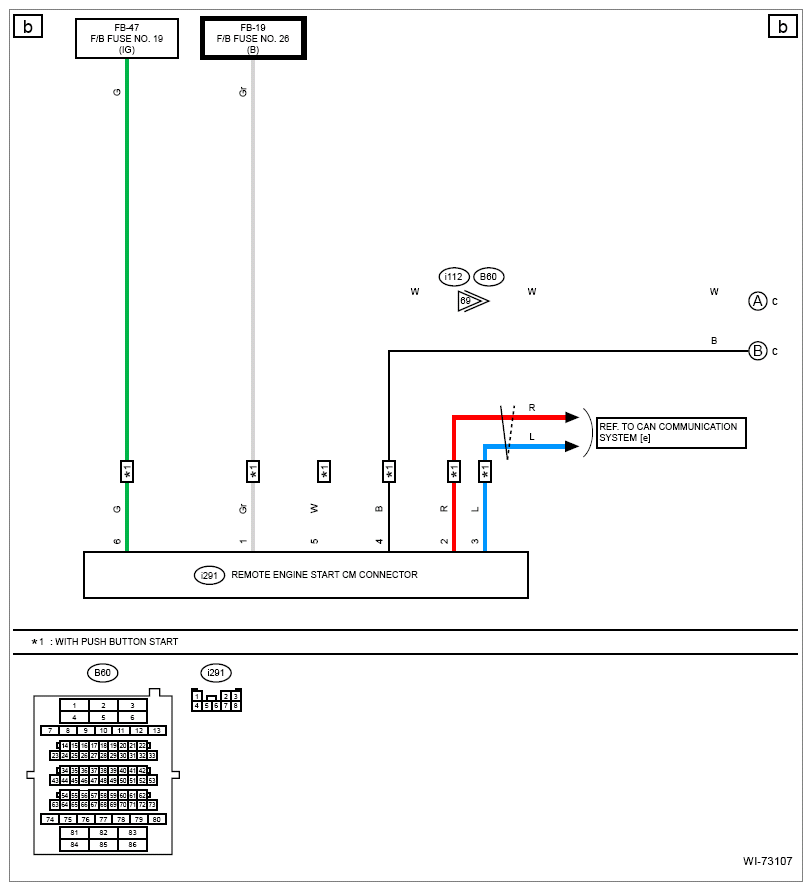

G12399817Courtesy of SUBARU OF AMERICA, INC.
G13614196Courtesy of SUBARU OF AMERICA, INC.
G13614197Courtesy of SUBARU OF AMERICA, INC.

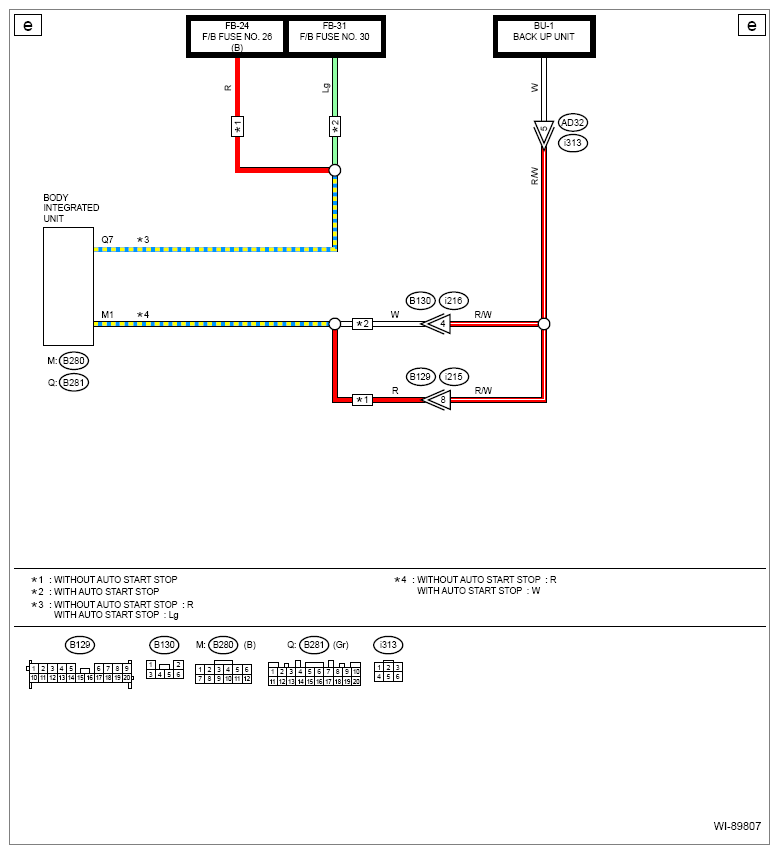

G13940518Courtesy of SUBARU OF AMERICA, INC.
