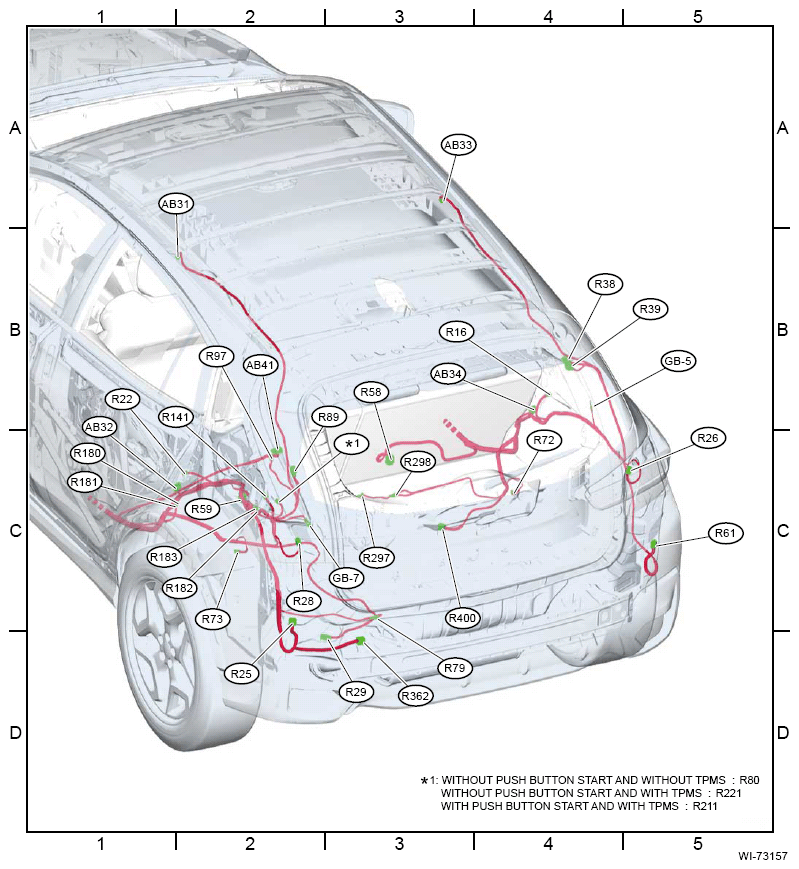

Rear Wiring Harness
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB31 |
2 |
B |
B-2 |
|
Curtain airbag module LH |
| AB32 |
4 |
Y |
C-2 |
|
Curtain airbag sensor LH |
| AB33 |
2 |
B |
A-3 |
|
Curtain airbag module RH |
| AB34 |
4 |
Y |
B-4 |
|
Curtain airbag sensor RH |
| AB41 |
2 |
Y |
C-2 |
|
Satellite safing sensor |
| R16 |
4 |
Gr |
B-4 |
|
Rear door switch RH |
| R22 |
4 |
Gr |
C-2 |
|
Rear door switch LH |
| R25 |
10 |
B |
C-2 |
|
Radar sensor LH (master) |
| R26 |
4 |
Gr |
C-5 |
|
Rear combination light RH |
| R28 |
4 |
Gr |
C-2 |
|
Rear combination light LH |
| R29 |
3 |
B |
D-3 |
|
Rear vehicle height sensor |
| R38 |
14 |
|
B-4 |
D34 |
Rear gate cord (RH) |
| R39 |
8 |
|
B-4 |
D35 |
| R58 |
6 |
Gr |
C-3 |
|
Fuel pump ASSY |
| R59 |
4 |
Gr |
C-2 |
|
Fuel sub level sensor |
| R61 |
10 |
B |
C-5 |
|
Radar sensor RH (slave) |
| R72 |
2 |
Gr |
C-4 |
|
Rear ABS wheel speed sensor RH |
| R73 |
2 |
Gr |
C-2 |
|
Rear ABS wheel speed sensor LH |
| R79 |
8 |
|
C-3 |
|
Trailer connector |
| R80 |
12 |
|
C-2 |
|
Keyless entry control module (without push button start) |
| R89 |
8 |
|
C-2 |
D6 |
Rear gate cord (LH) |
| R97 |
1 |
|
C-2 |
AN18 |
Antenna |
| R141 |
2 |
|
Gr |
C-2 |
Luggage room light |
| R180 |
4 |
|
C-2 |
|
J/C |
| R181 |
4 |
|
C-2 |
|
| R182 |
4 |
|
C-2 |
|
| R183 |
4 |
|
C-2 |
|
| R211 |
12 |
|
C-2 |
|
TPMS control module |
| R221 |
12 |
|
C-2 |
|
TPMS & keyless entry control module |
| R297 |
3 |
|
C-3 |
|
Keyless access interior antenna (center) |
| R298 |
3 |
|
C-3 |
|
Keyless access interior antenna (rear) |
| R362 |
8 |
|
B |
D-3 |
Sonar sensor cord |
| R368 |
| R400 |
8 |
|
Gr |
C-3 |
Leak check valve ASSY |
| GB-5 |
- |
- |
B-4 |
|
- |
| GB-7 |
- |
- |
C-2 |
|
- |
