Navigation System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

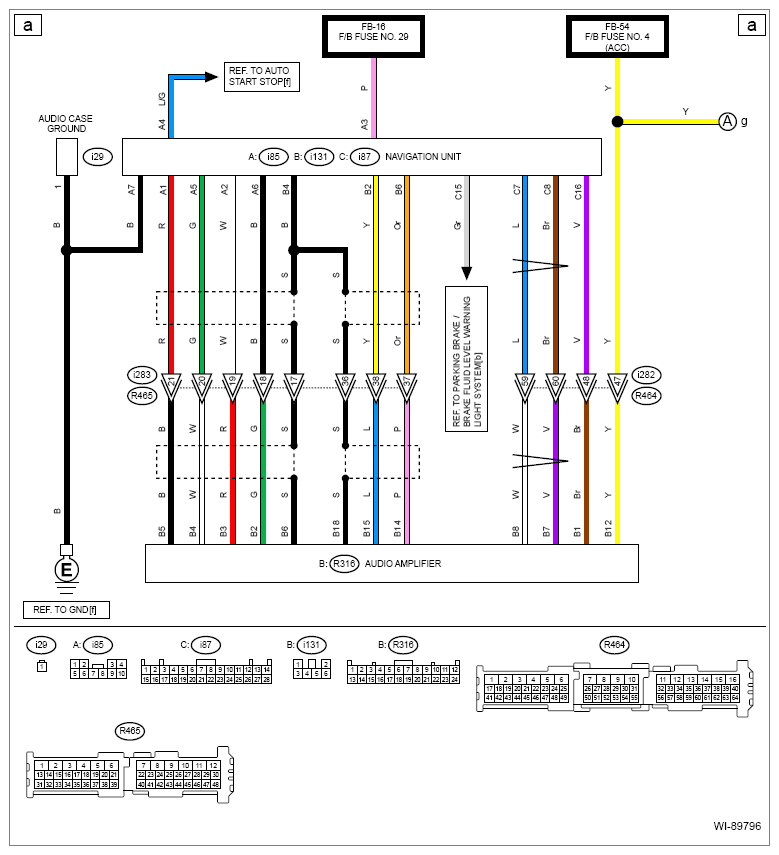

G13940483

Courtesy of SUBARU OF AMERICA, INC.

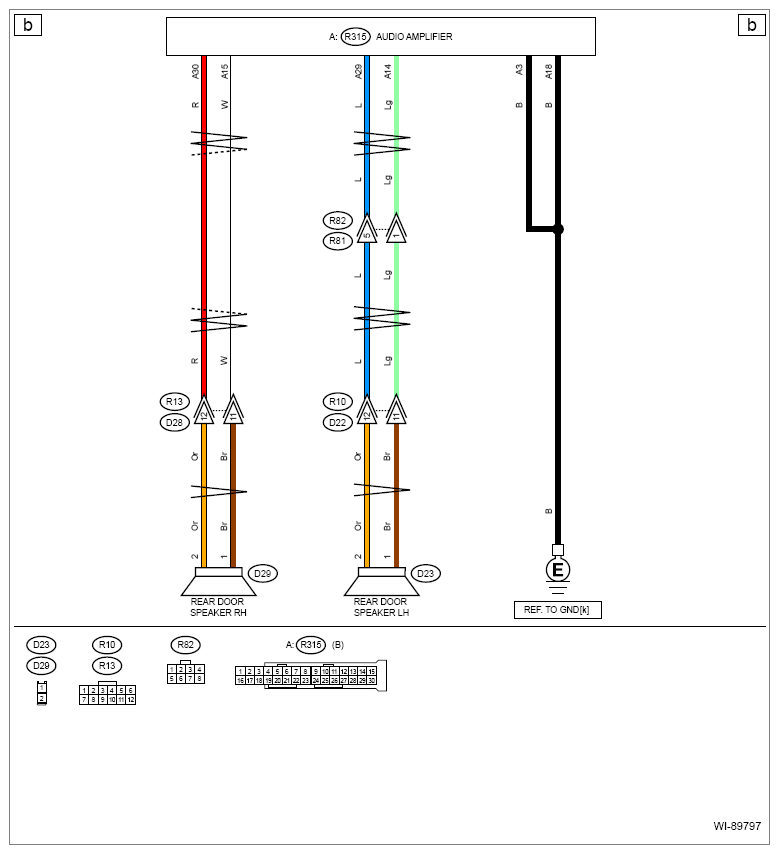

G13940484

Courtesy of SUBARU OF AMERICA, INC.

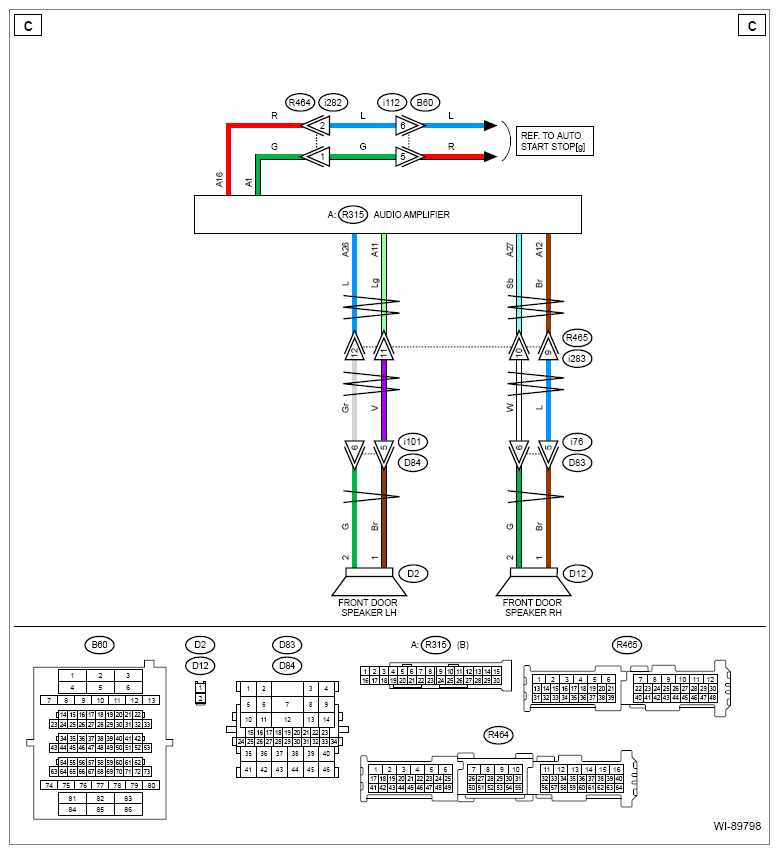

G13940485

Courtesy of SUBARU OF AMERICA, INC.

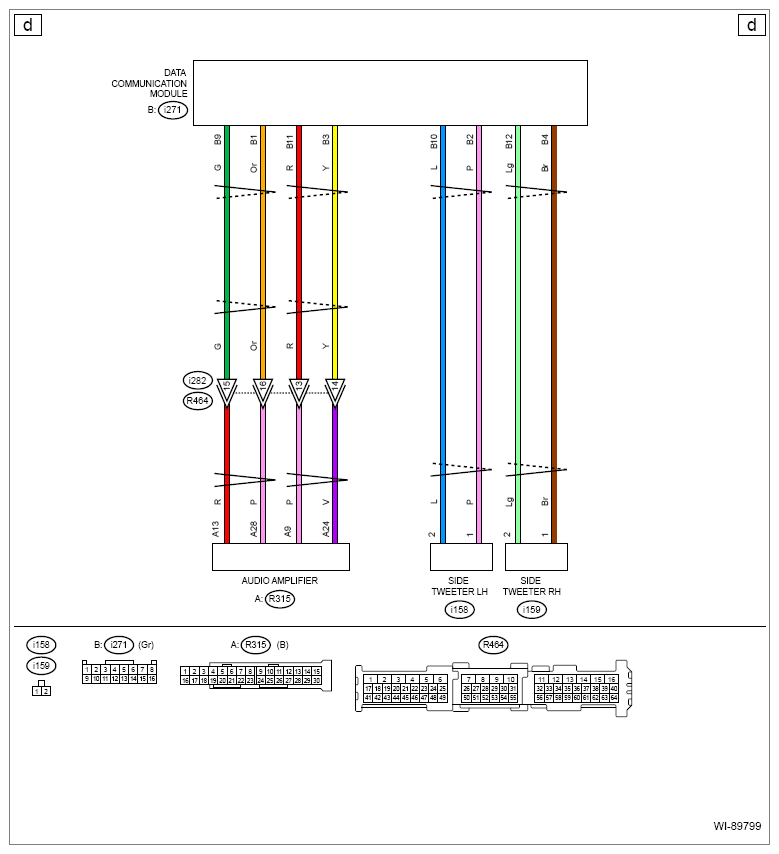

G13940486

Courtesy of SUBARU OF AMERICA, INC.

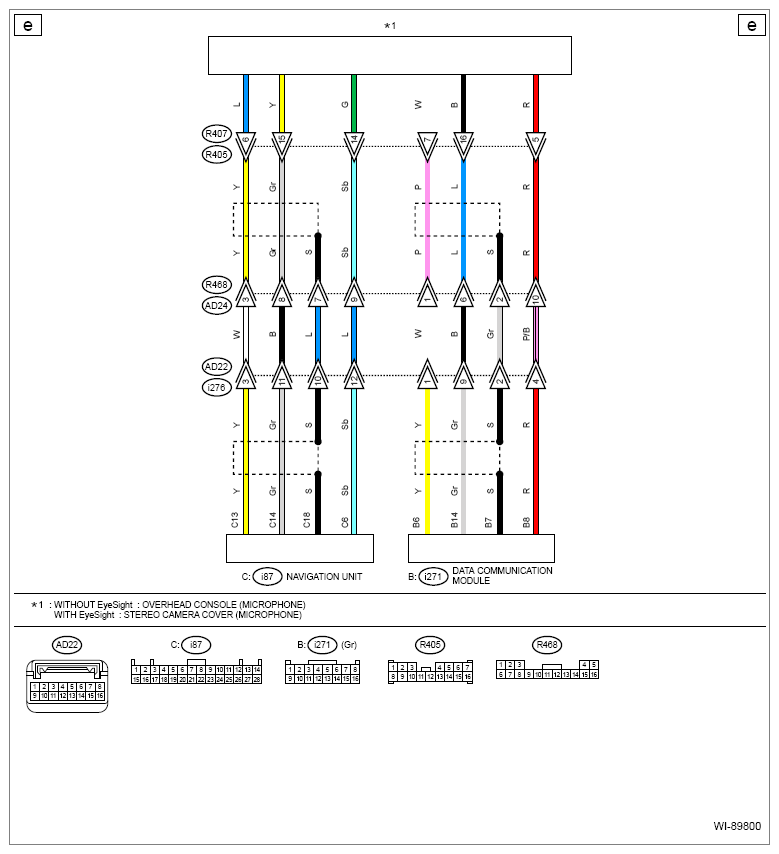

G13940487

Courtesy of SUBARU OF AMERICA, INC.

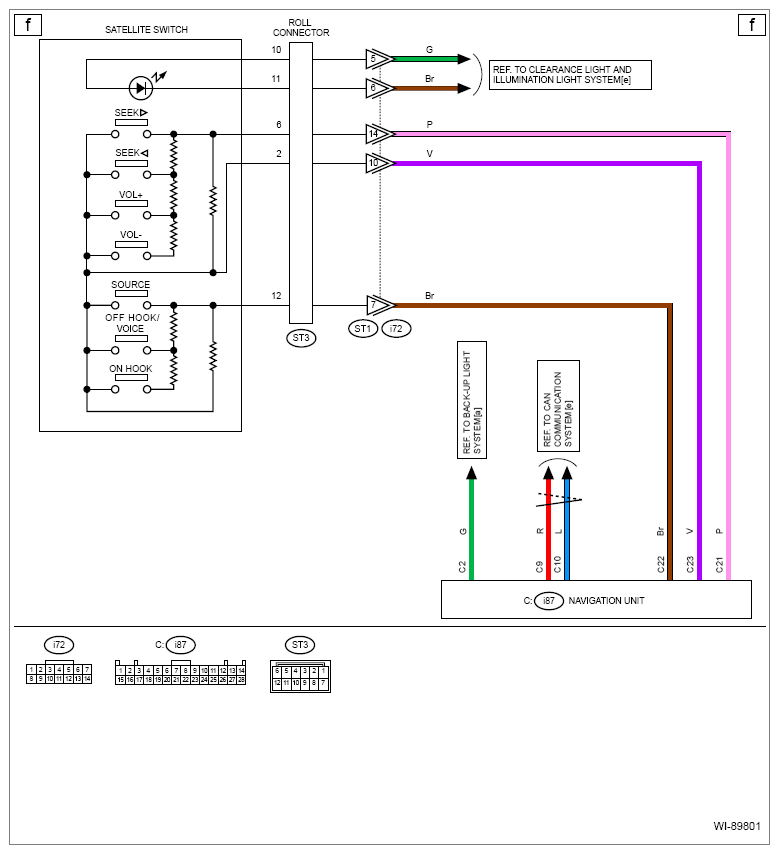

G13940488

Courtesy of SUBARU OF AMERICA, INC.

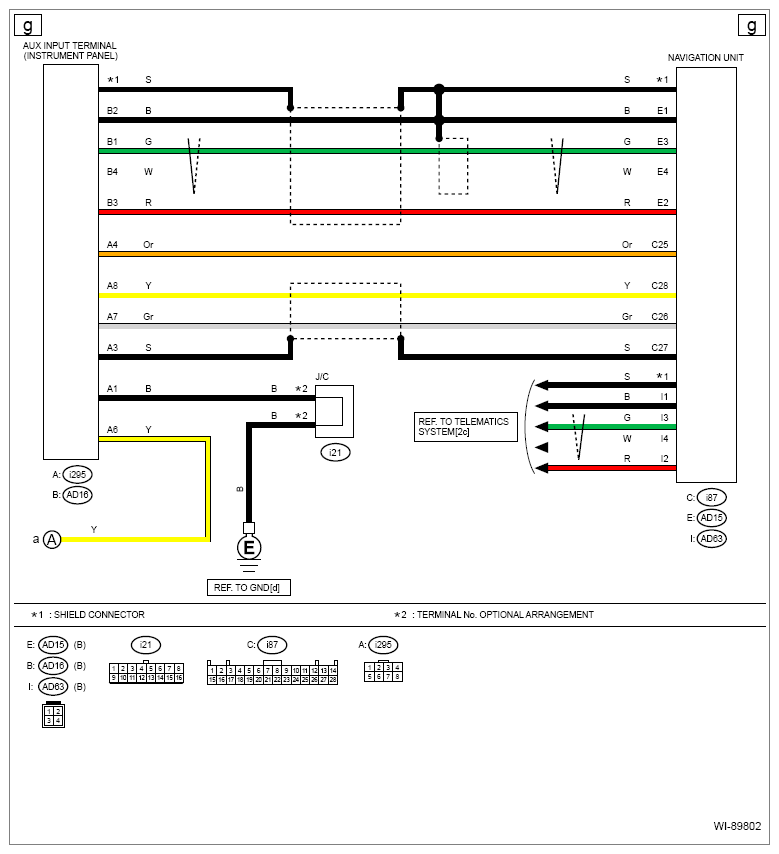

G13940489

Courtesy of SUBARU OF AMERICA, INC.

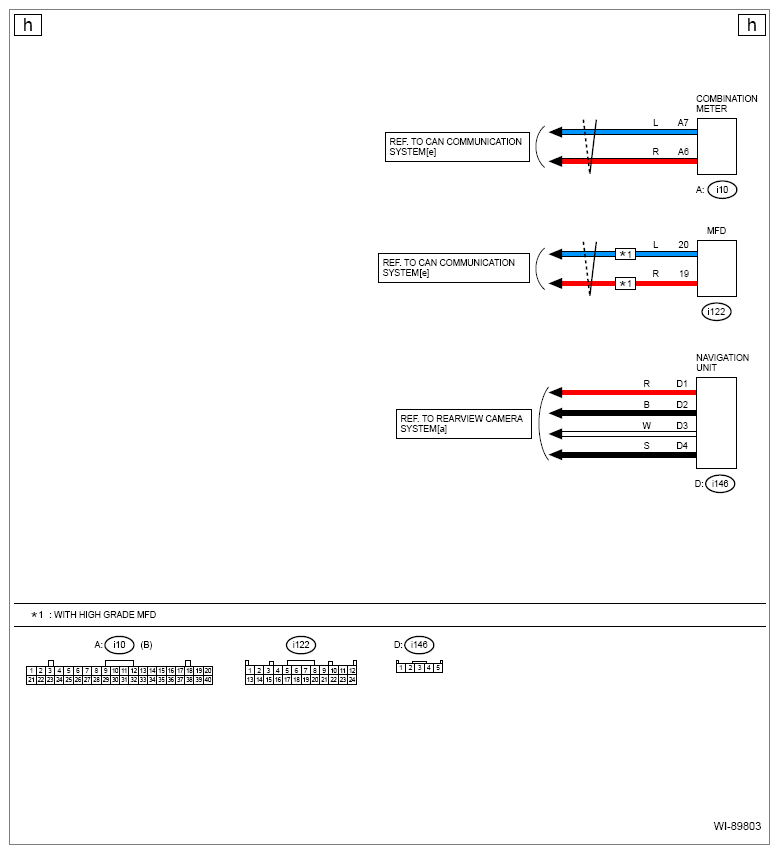

G13940490

Courtesy of SUBARU OF AMERICA, INC.

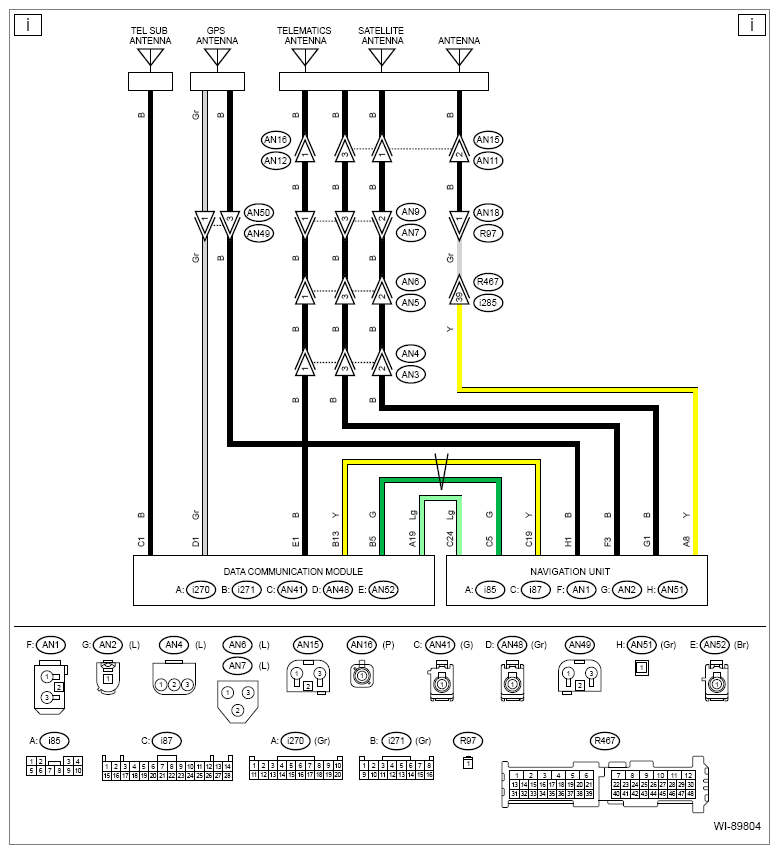

G13940491

Courtesy of SUBARU OF AMERICA, INC.
