Interior Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

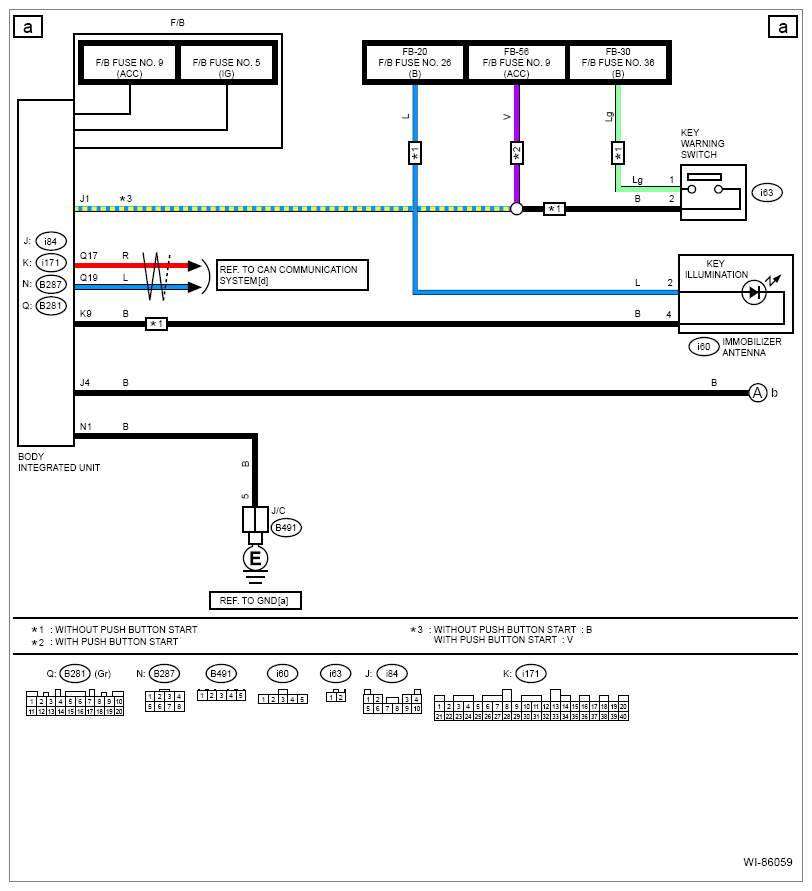

G13614126Courtesy of SUBARU OF AMERICA, INC.

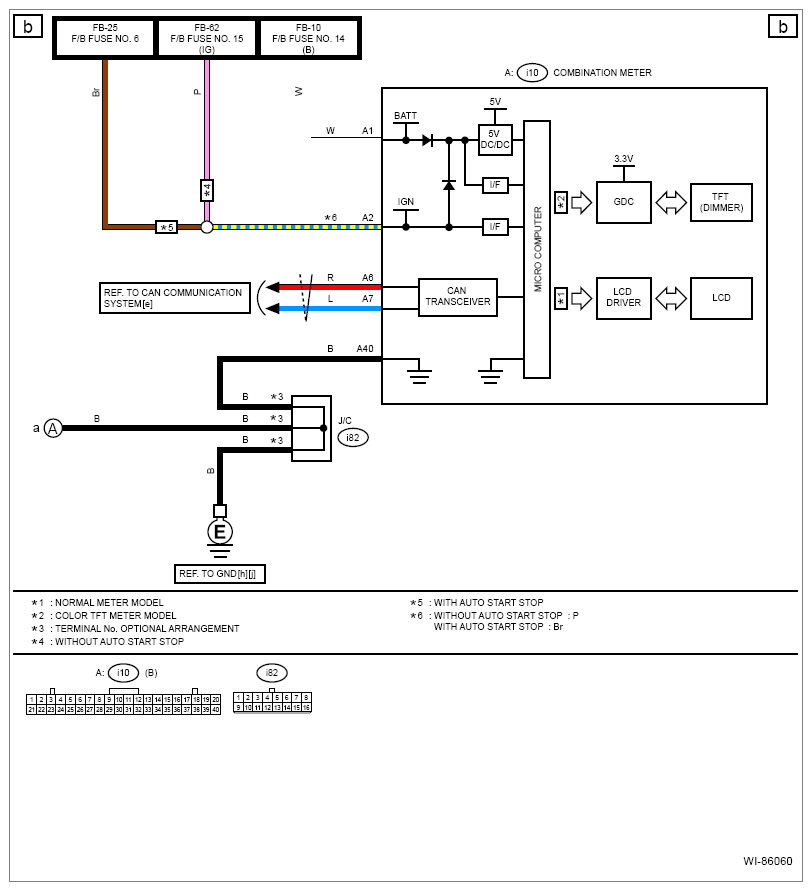

G13614127Courtesy of SUBARU OF AMERICA, INC.

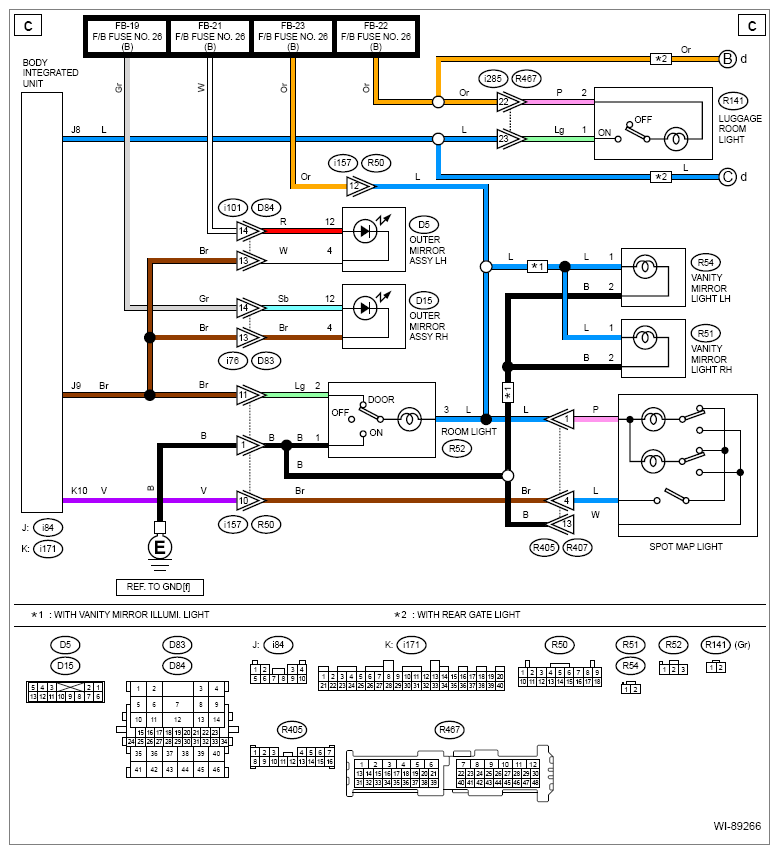

G13940456Courtesy of SUBARU OF AMERICA, INC.

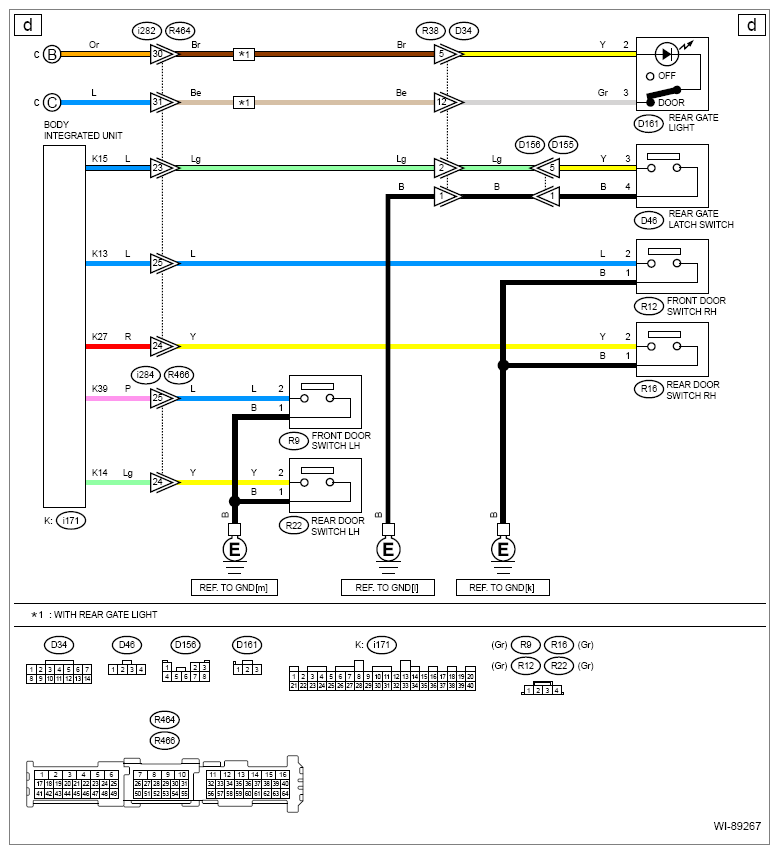

G13940457Courtesy of SUBARU OF AMERICA, INC.

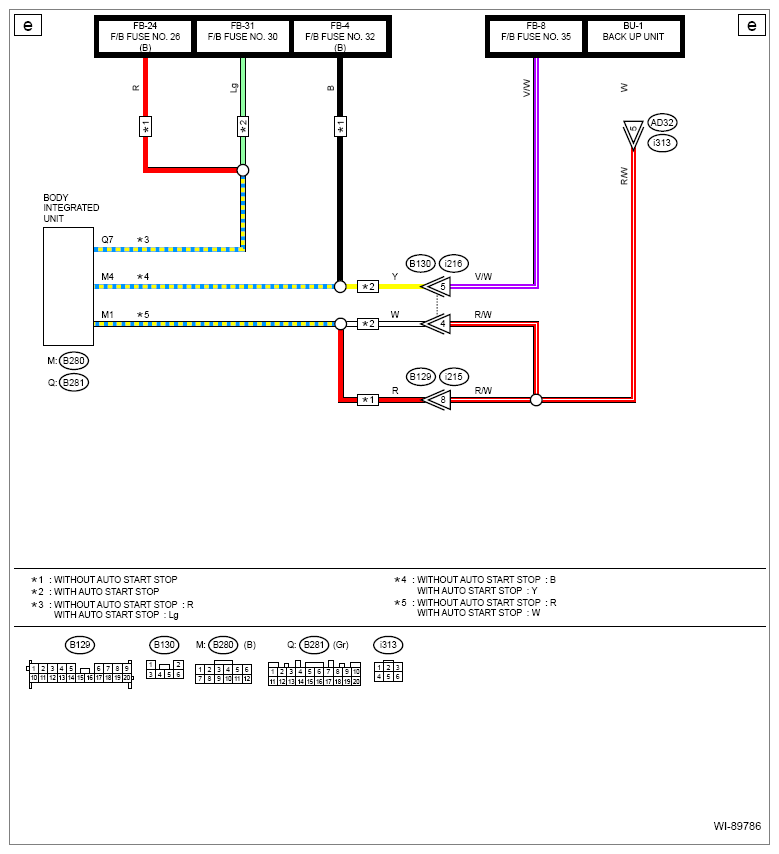

G13940458Courtesy of SUBARU OF AMERICA, INC.
