With Push Button Start

WARNING: This page is about a different variant/trim than selected.

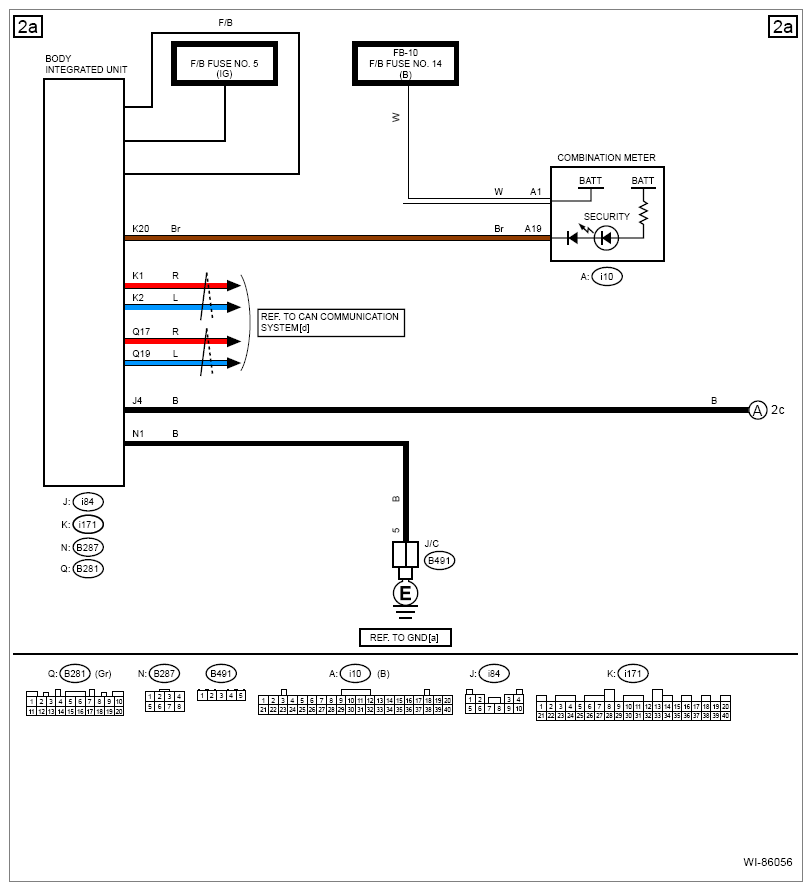

G13614122Courtesy of SUBARU OF AMERICA, INC.

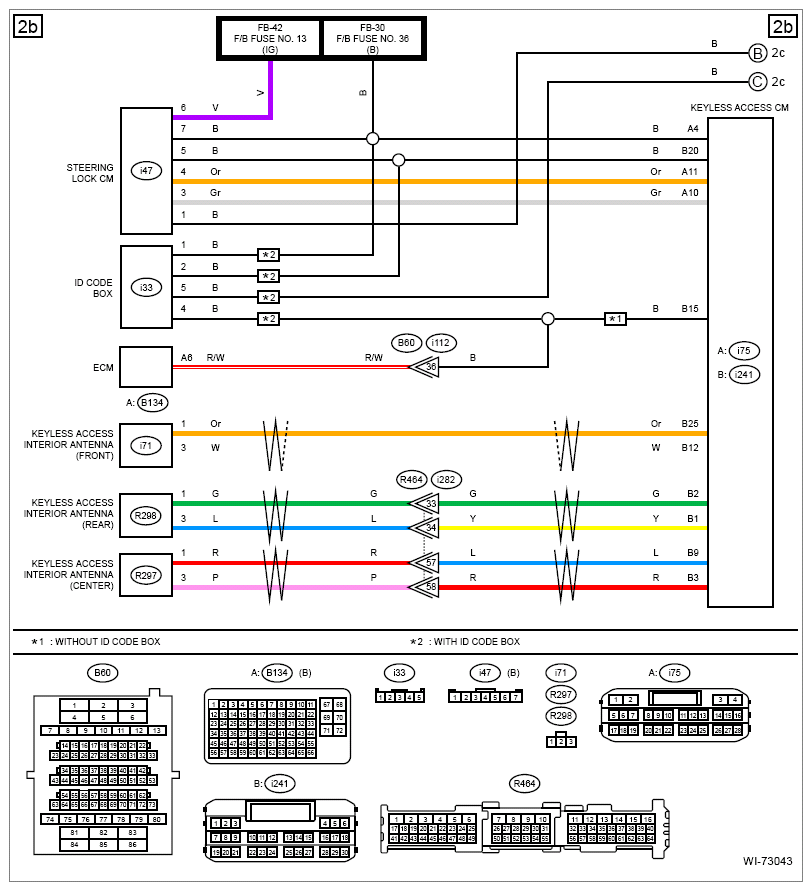

G12399753Courtesy of SUBARU OF AMERICA, INC.

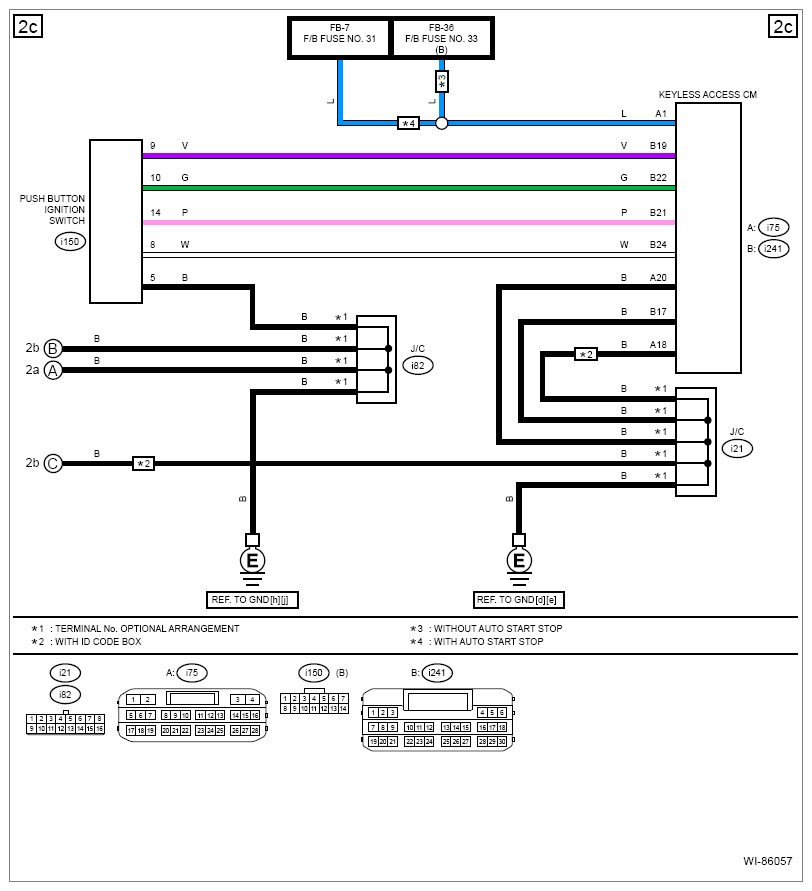

G13614124Courtesy of SUBARU OF AMERICA, INC.

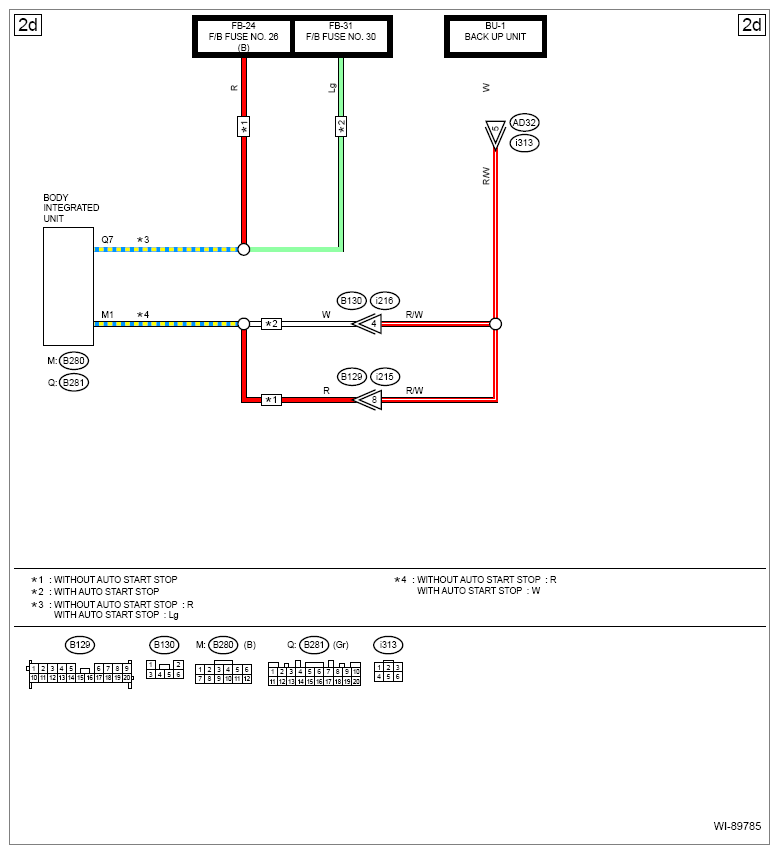

G13940453Courtesy of SUBARU OF AMERICA, INC.
