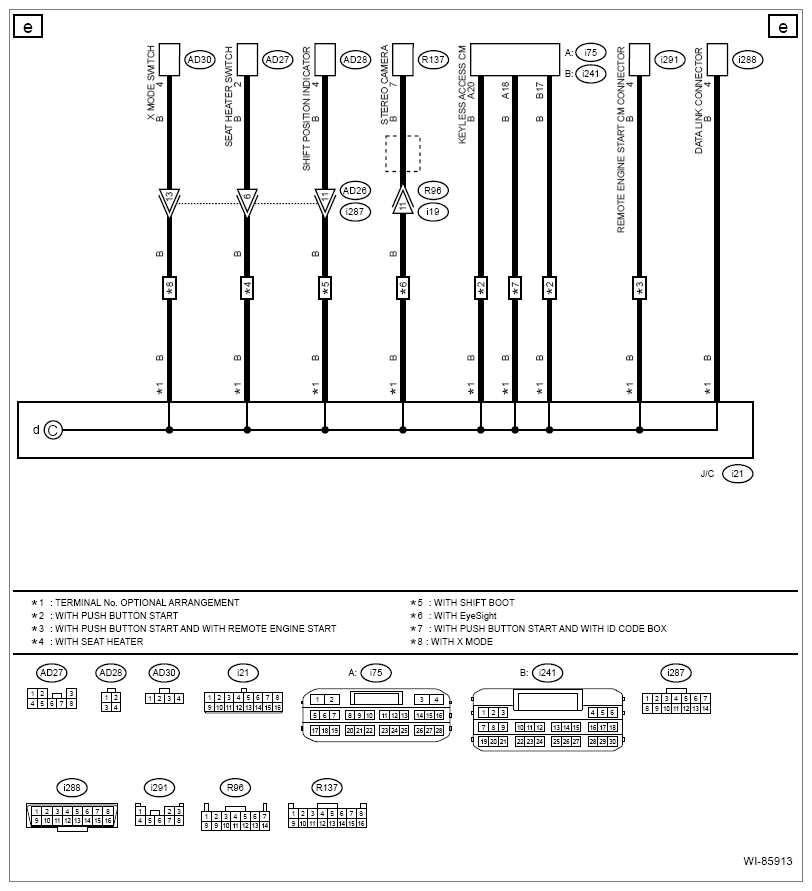

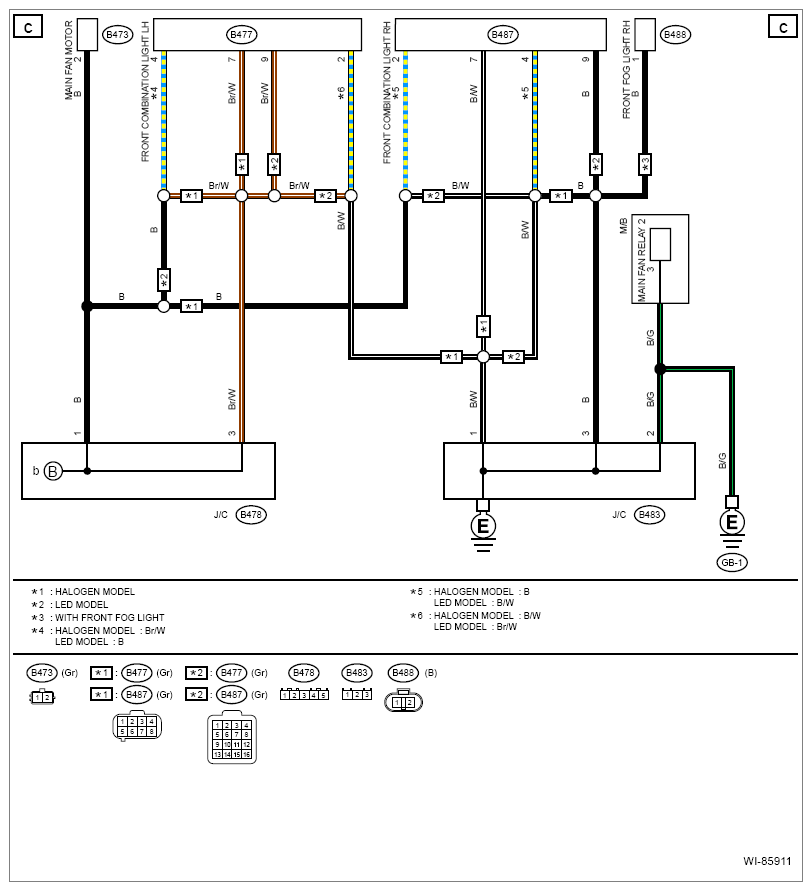

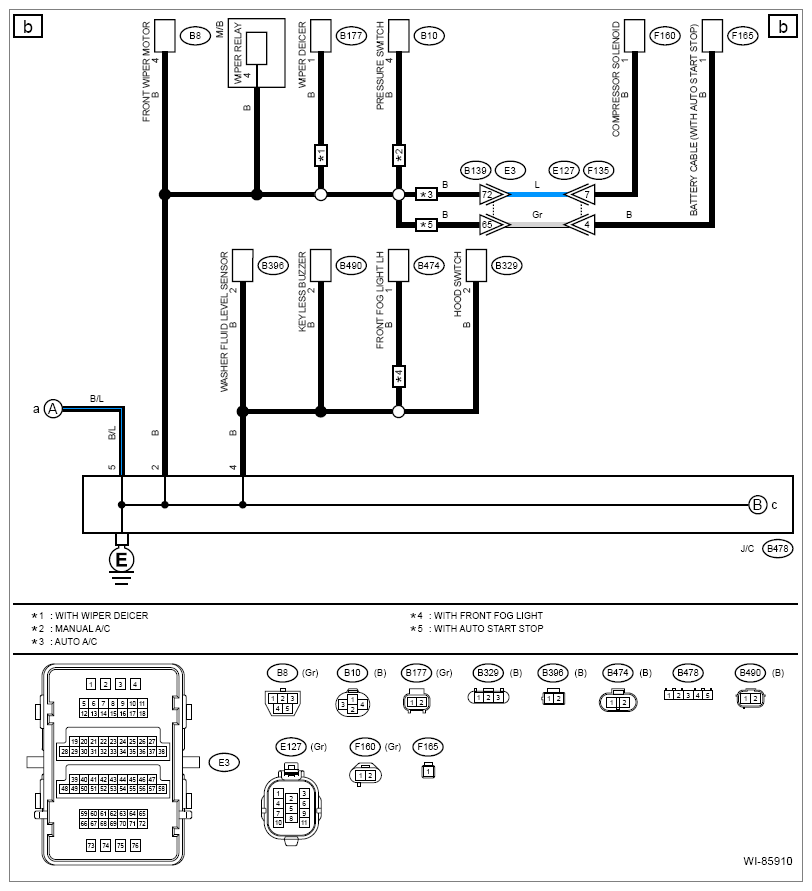

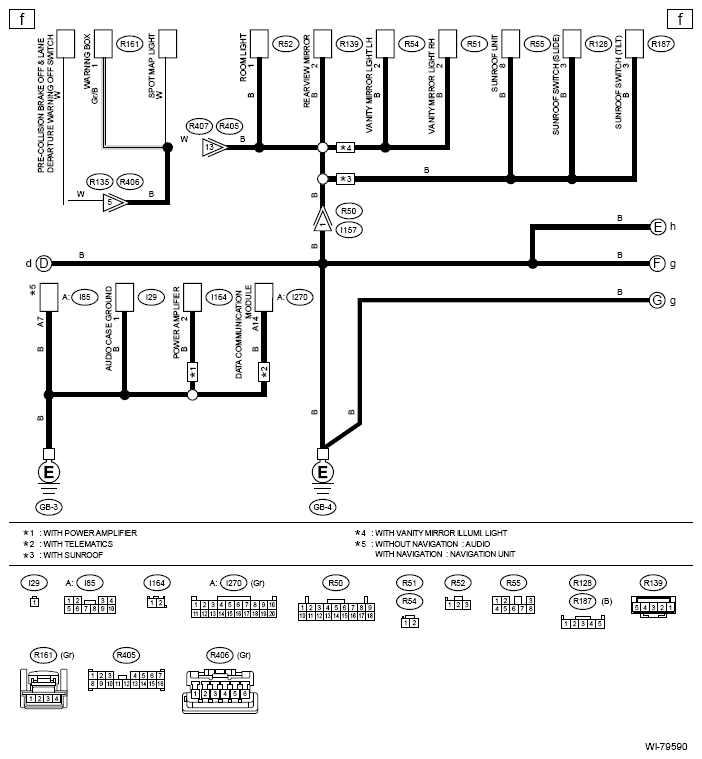

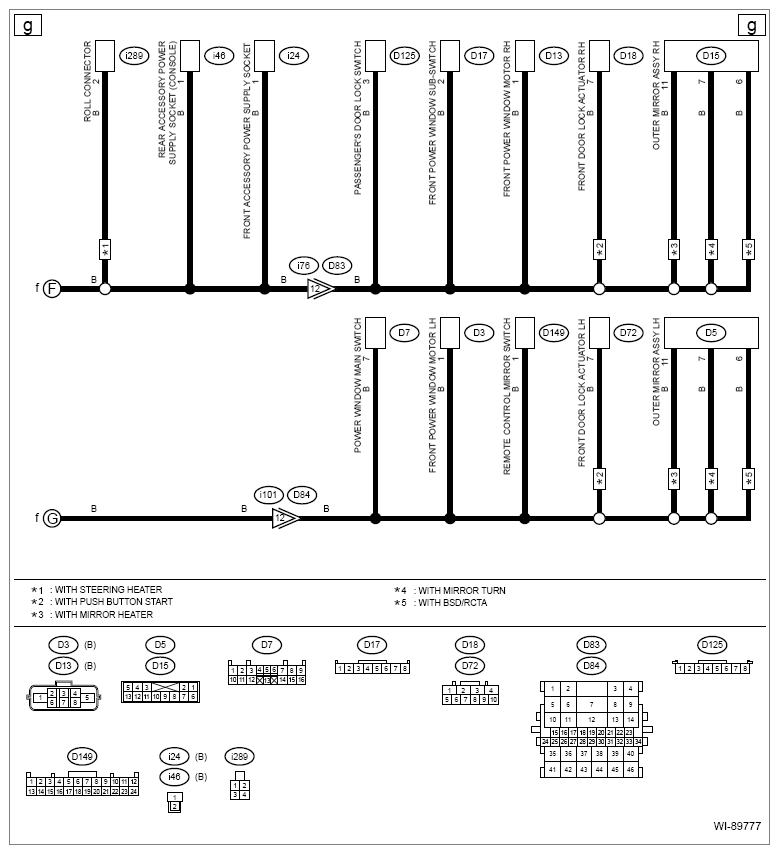

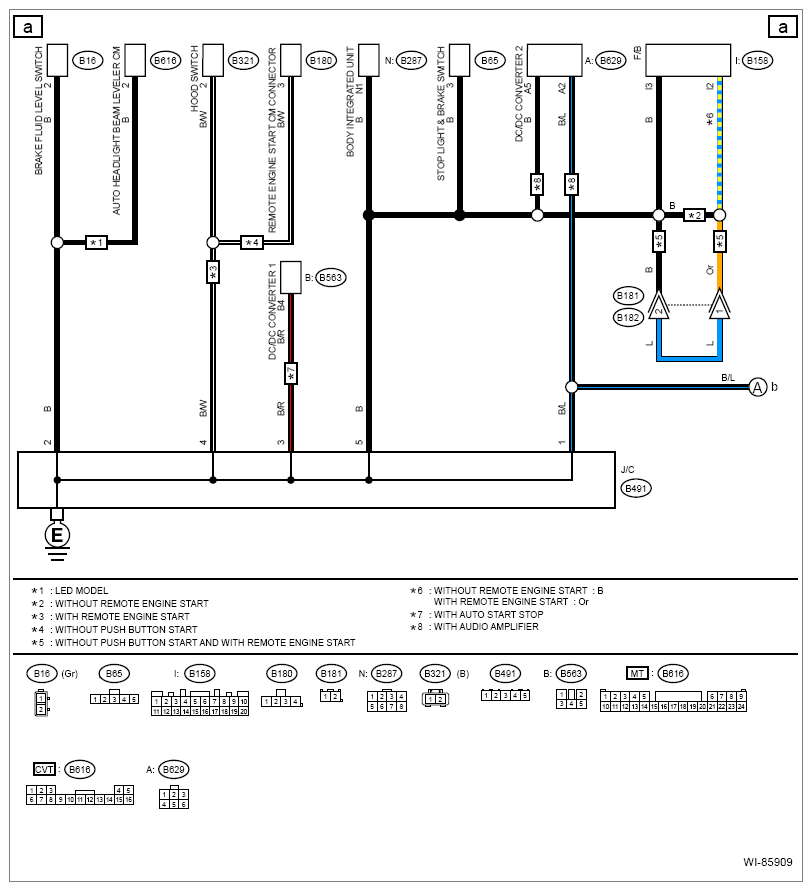

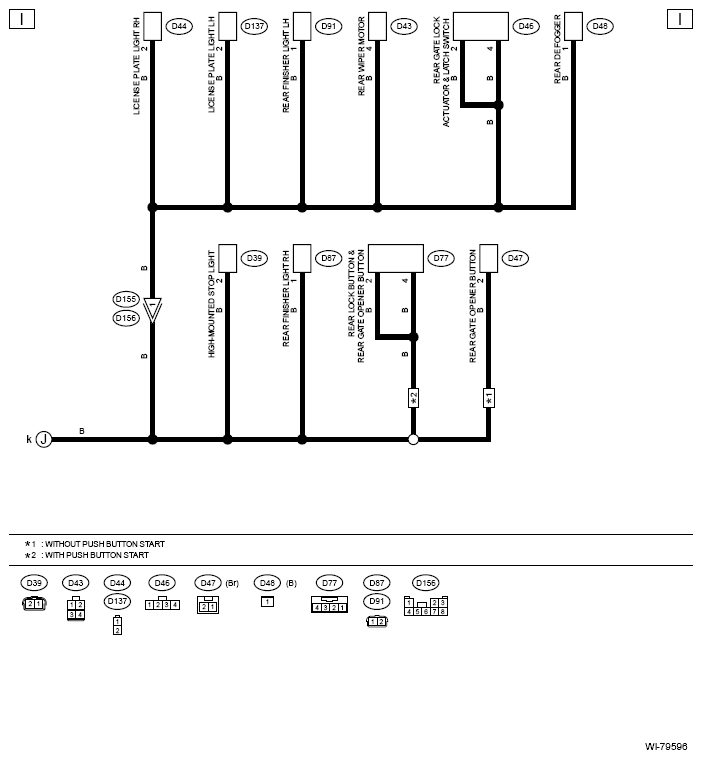

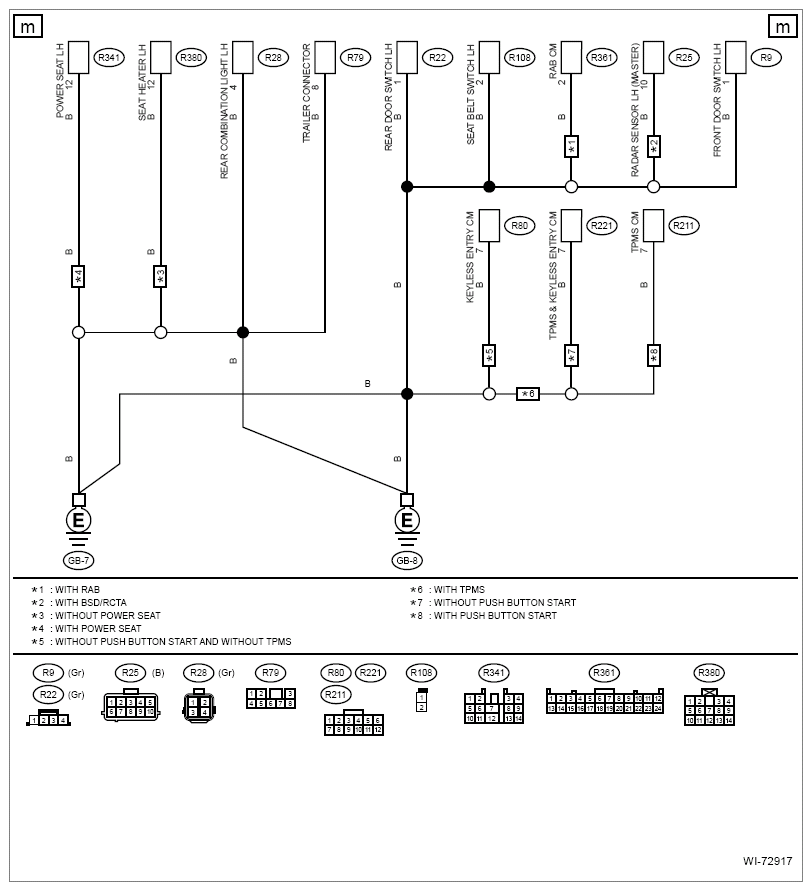

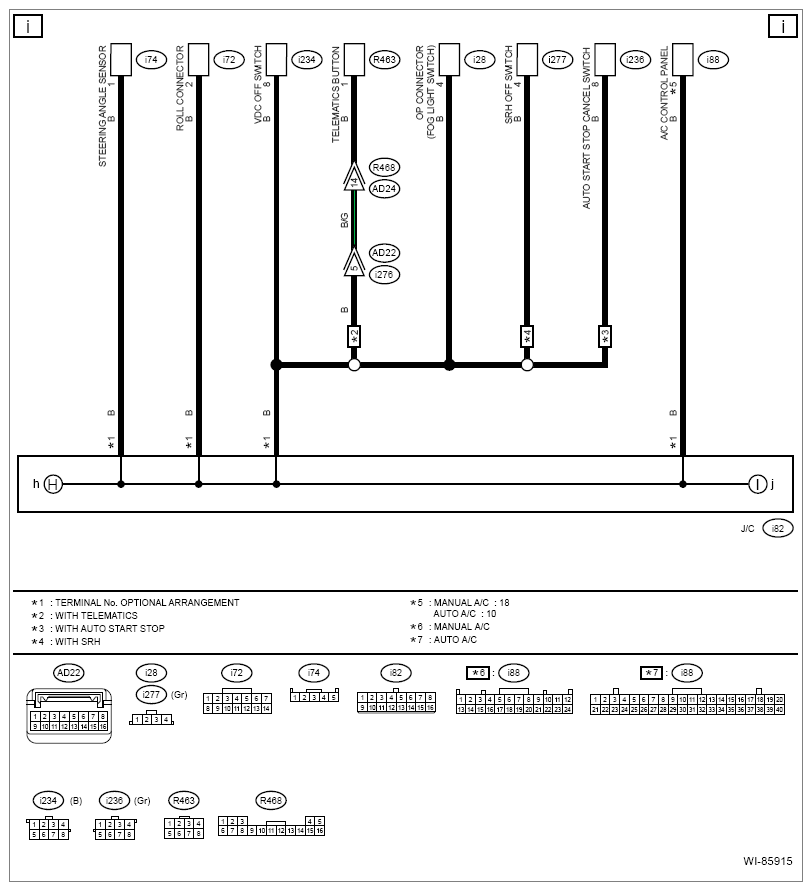

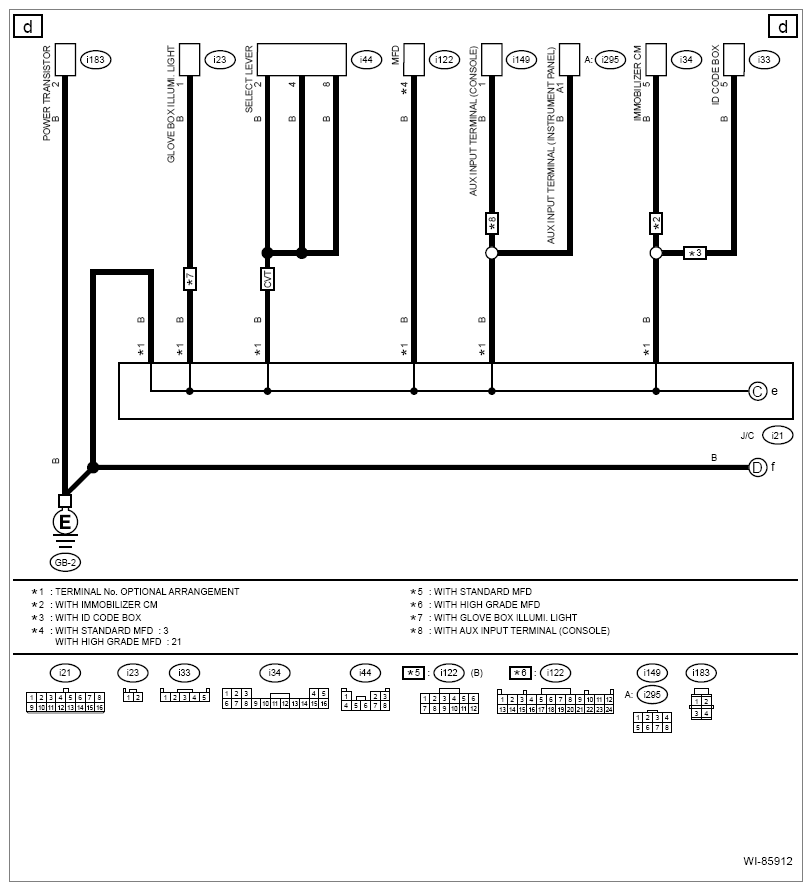

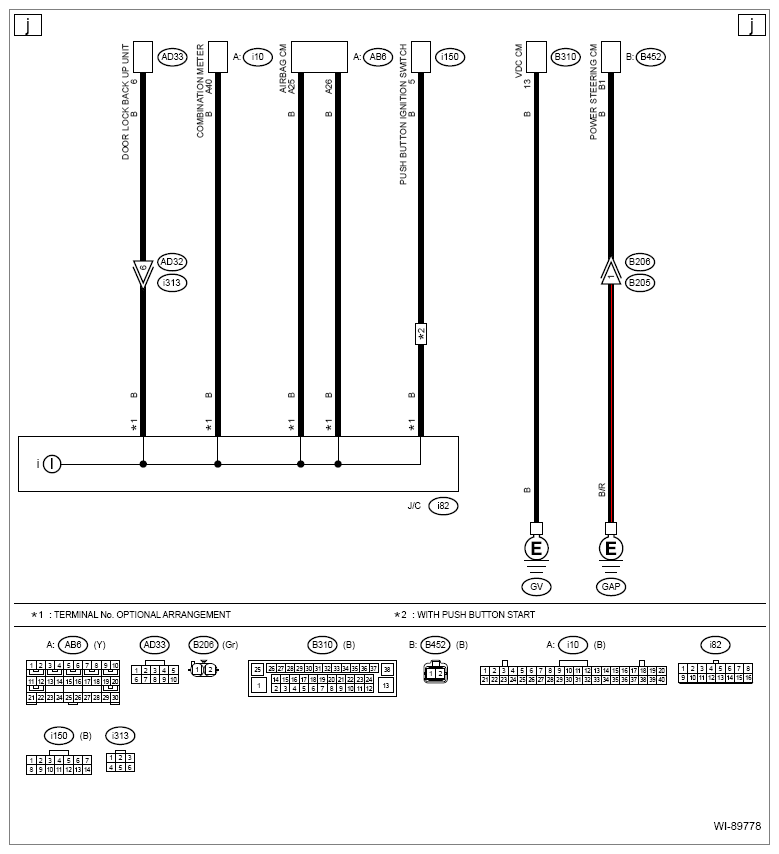

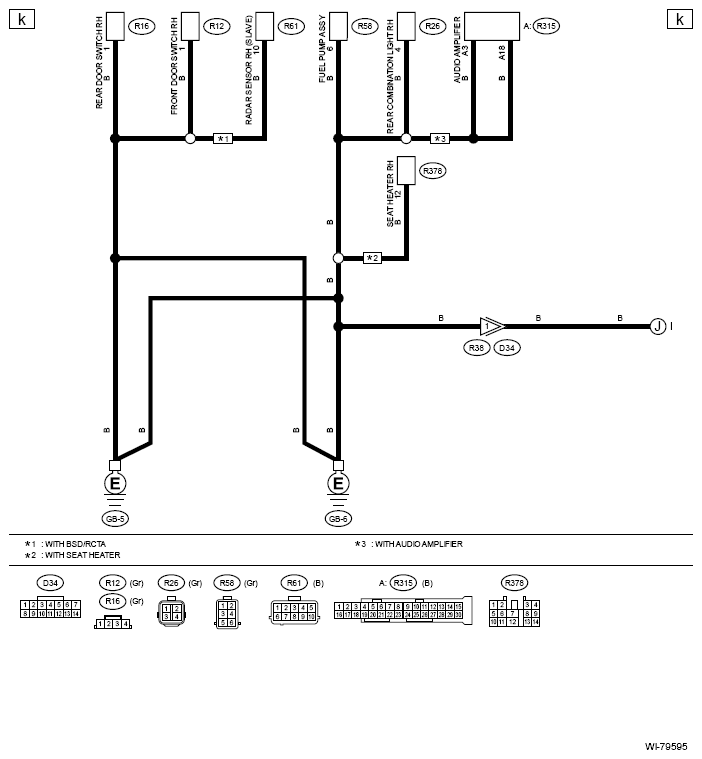

Ground Circuit: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
