Engine Compartment Side

WARNING: This page is about a different variant/trim than selected.

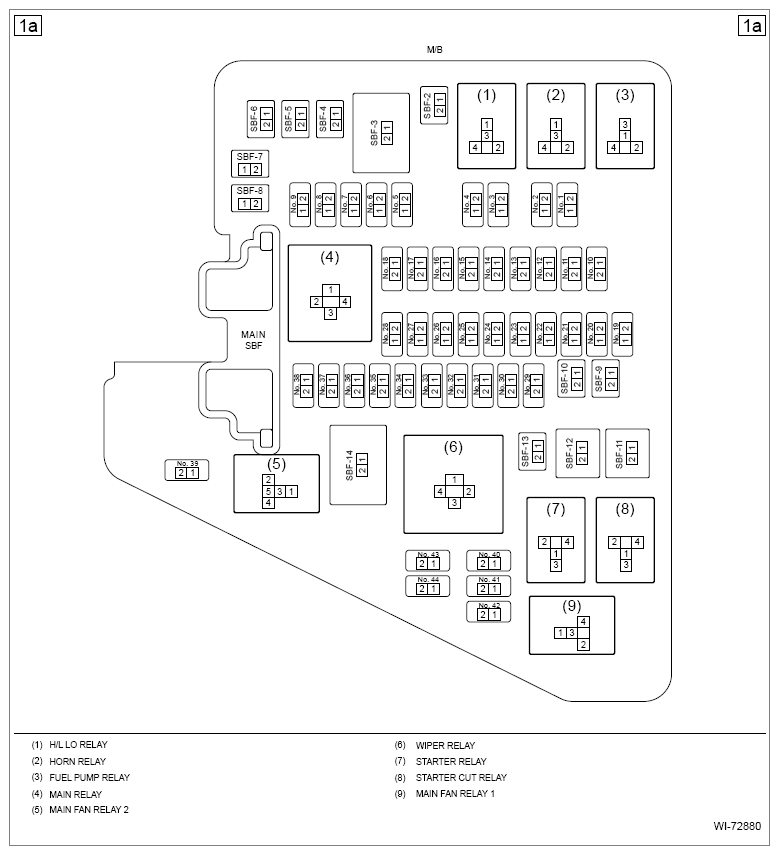

Fig 1: Engine Compartment Fuse And Relay Identification (1 Of 2)
G13940219Courtesy of SUBARU OF AMERICA, INC.
ENGINE COMPARTMENT RELAY IDENTIFICATION (1 OF 2)

Relay Description
H/L Lo Relay
Horn Relay
Fuel Pump Relay
Main Relay
Main Fan Relay 2
Wiper Relay
Starter Relay
Starter Cut Relay
Main Fan Relay 1

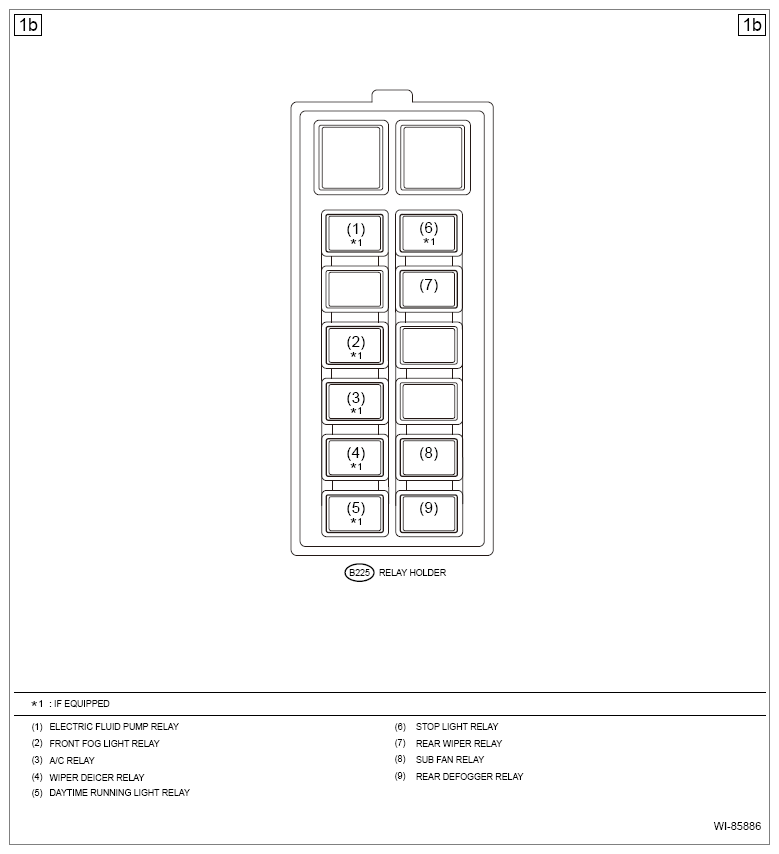

Fig 2: Engine Compartment Fuse And Relay Identification (2 Of 2)
G13940220Courtesy of SUBARU OF AMERICA, INC.
ENGINE COMPARTMENT RELAY IDENTIFICATION (2 OF 2)

Relay Description
Electric Fuel Pump Relay
Front Fog Light Relay
A/C Relay
Wiper Deicer Relay
Daytime Running Light Relay
Stop Light Relay
Rear Wiper Relay
Sub Fan Relay
Rear Defogger Relay
