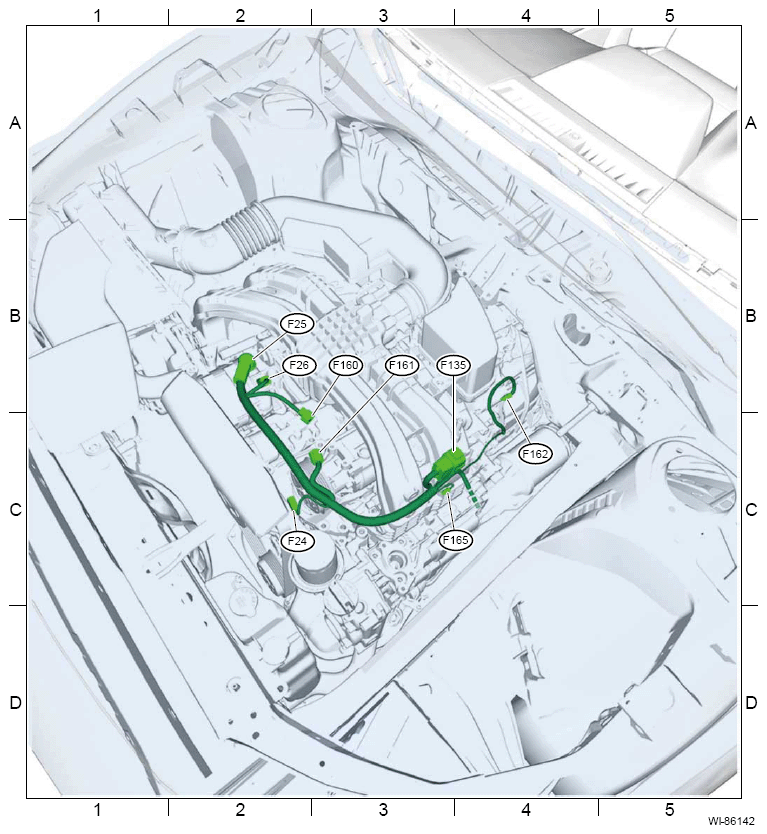

Front Wiring Harness: Location
WARNING: This page is about a different variant/trim than selected.
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| F24 | 1 | Gr | C-2 | Magnet clutch | |||
| F25 | - | V | B-2 | Generator terminal B | |||
| F26 | 1 | B | B-2 | Generator | |||
| F135 | 11 | Gr | C-3 | E127 | Engine wiring harness | ||
| F160 | 2 | Gr | C-3 | Compressor solenoid | |||
| F161 | 3 | Gr | C-3 | Flow sensor | |||
| F162 | 1 | B | B-4 | Starter motor | |||
| F165 | 1 | (1) | C-3 | Battery cable (with auto start stop) | |||
|
|||||||
