EyeSight System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

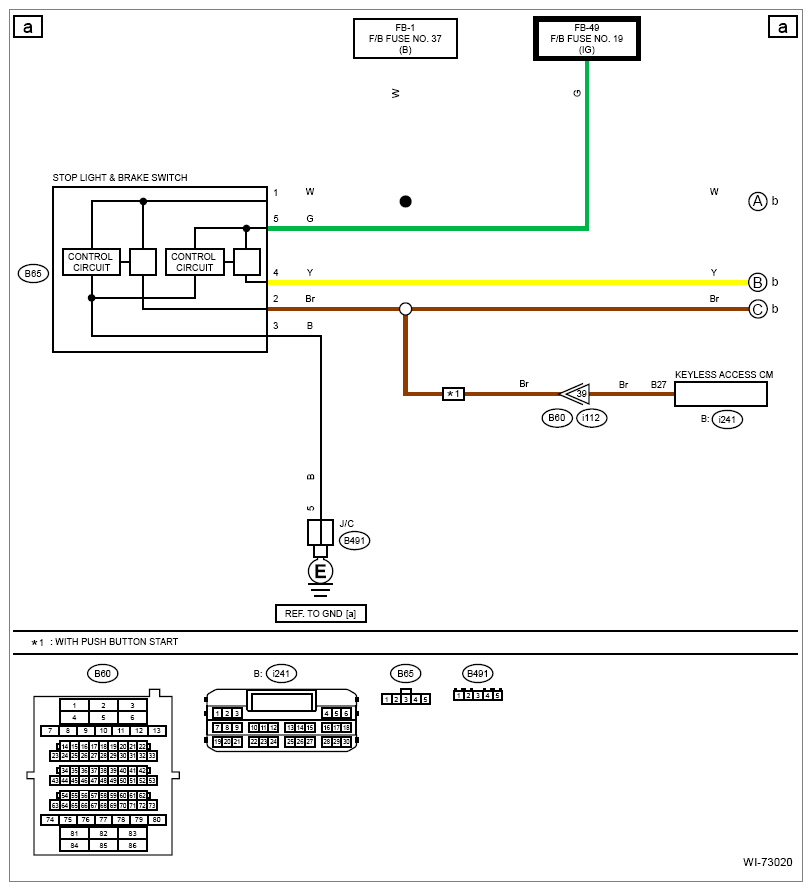

G12399730Courtesy of SUBARU OF AMERICA, INC.

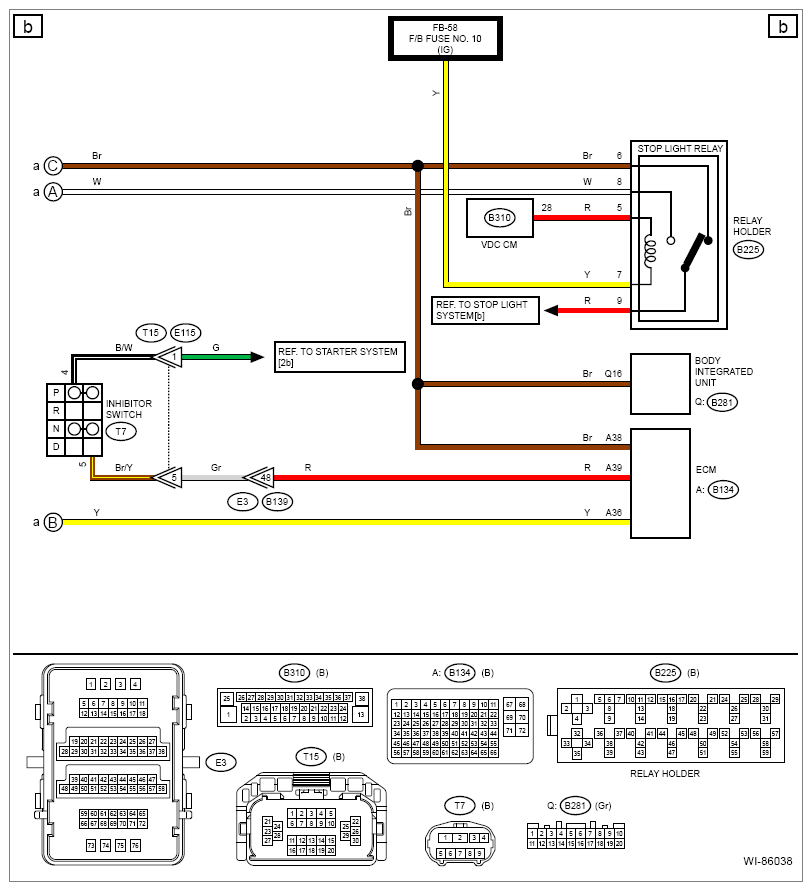

G13614097Courtesy of SUBARU OF AMERICA, INC.

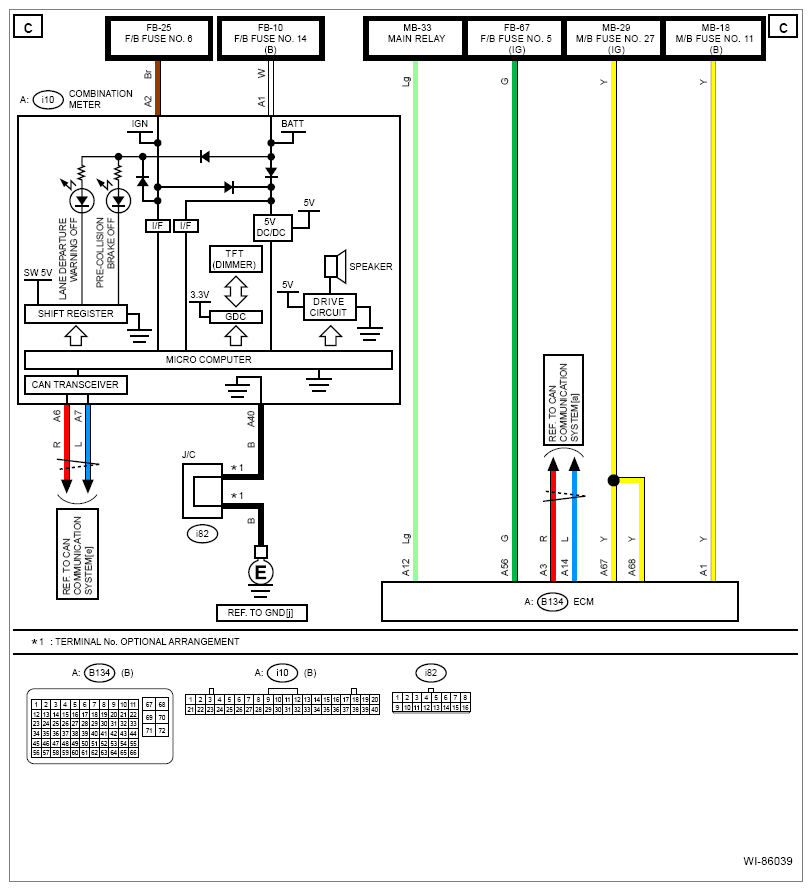

G13614098Courtesy of SUBARU OF AMERICA, INC.

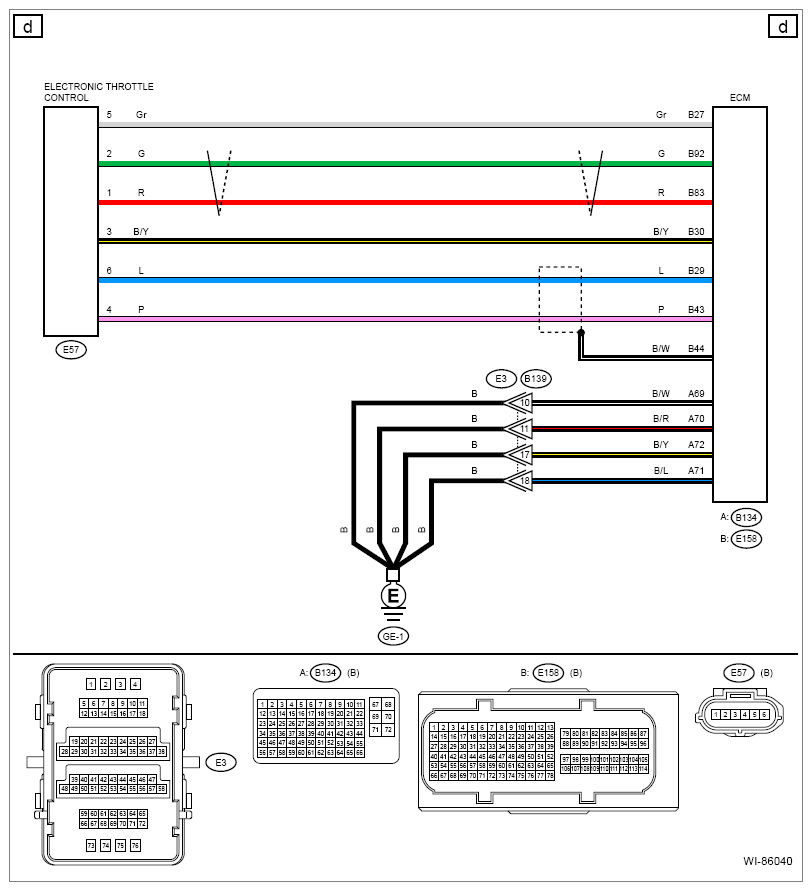

G13614099Courtesy of SUBARU OF AMERICA, INC.

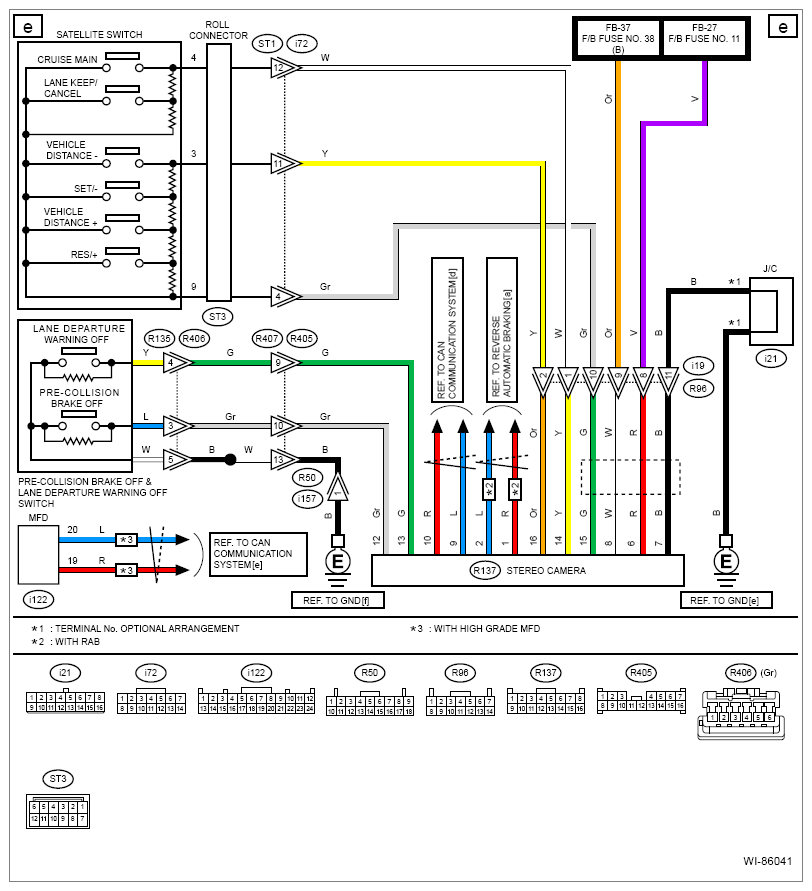

G13614100Courtesy of SUBARU OF AMERICA, INC.
