Section 1 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except HEV))
>>
Cruise Control System
>>
Wiring Diagram

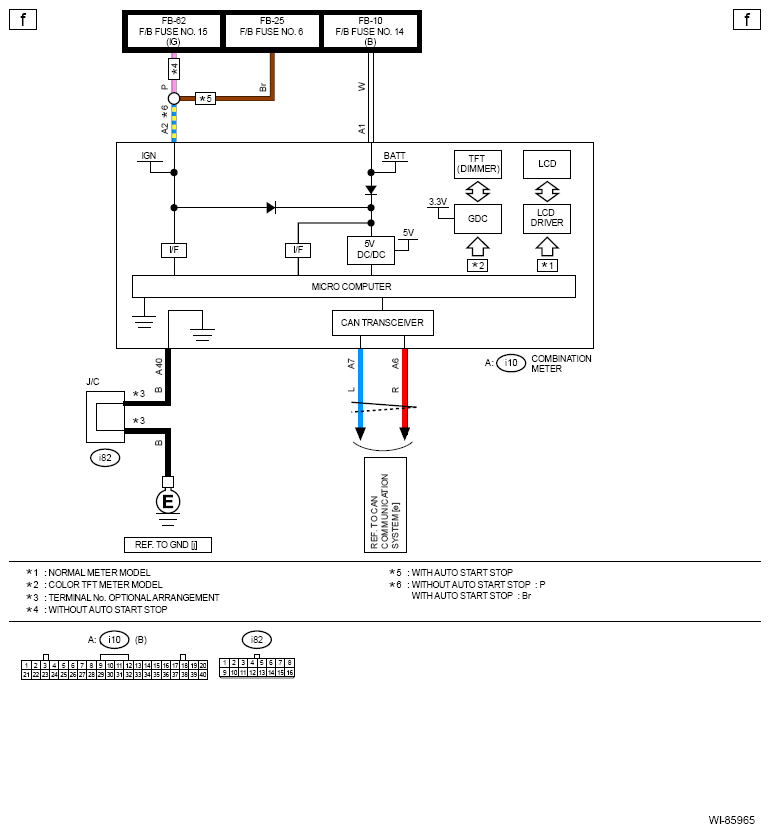

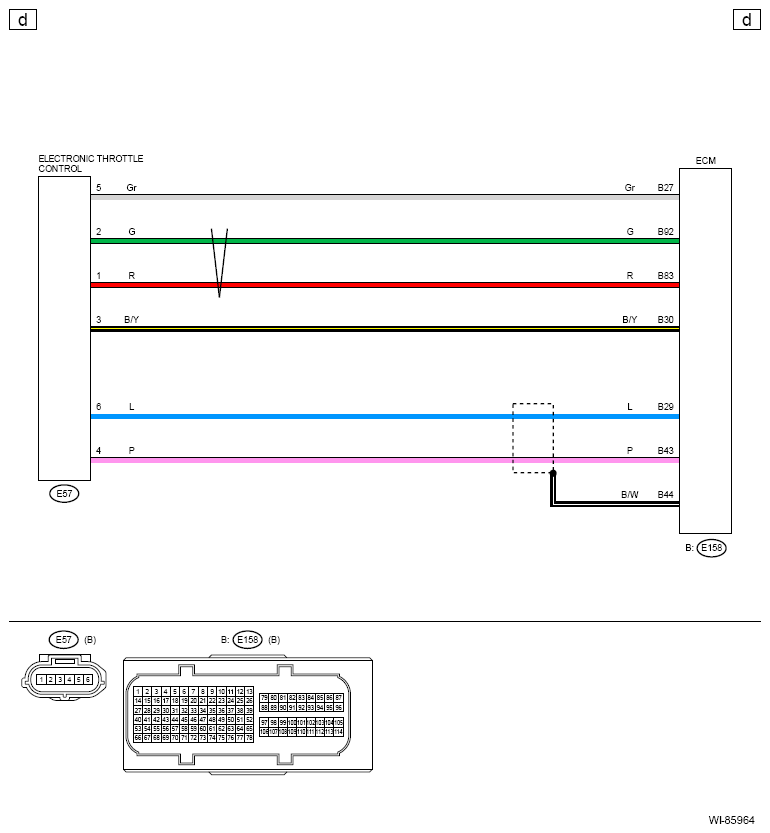

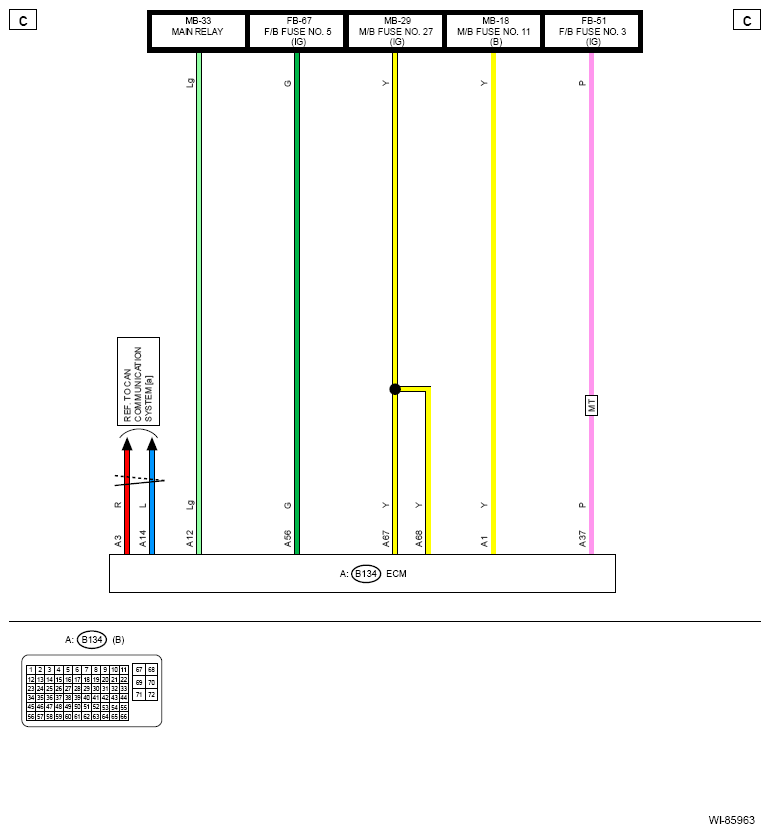

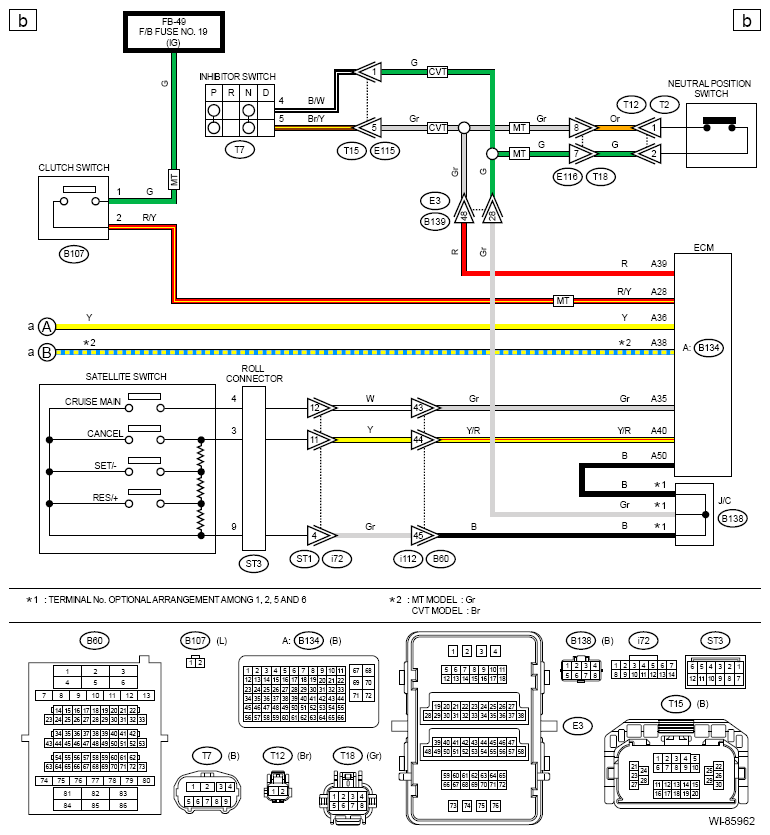

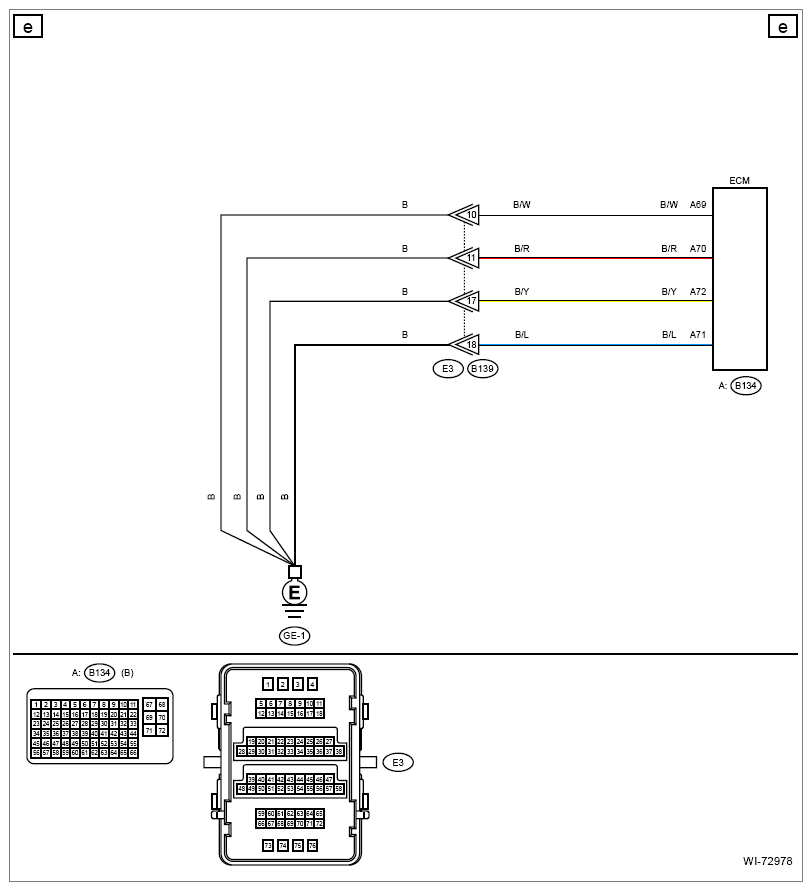

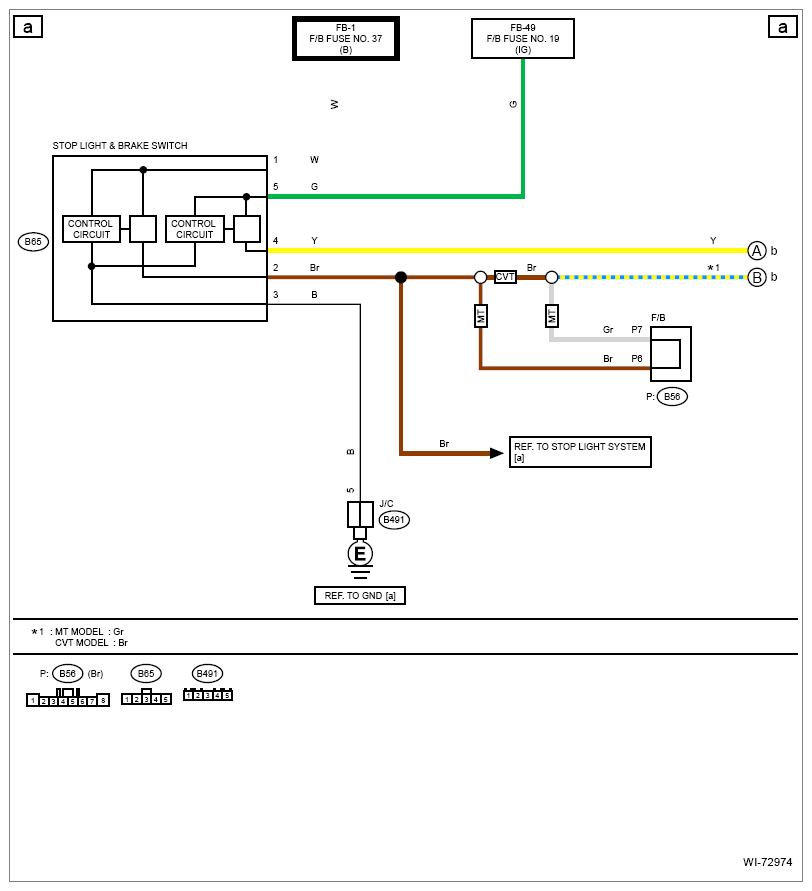

Cruise Control System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
