Section 1 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except HEV))
>>
Coolant Temperature System
>>
Wiring Diagram

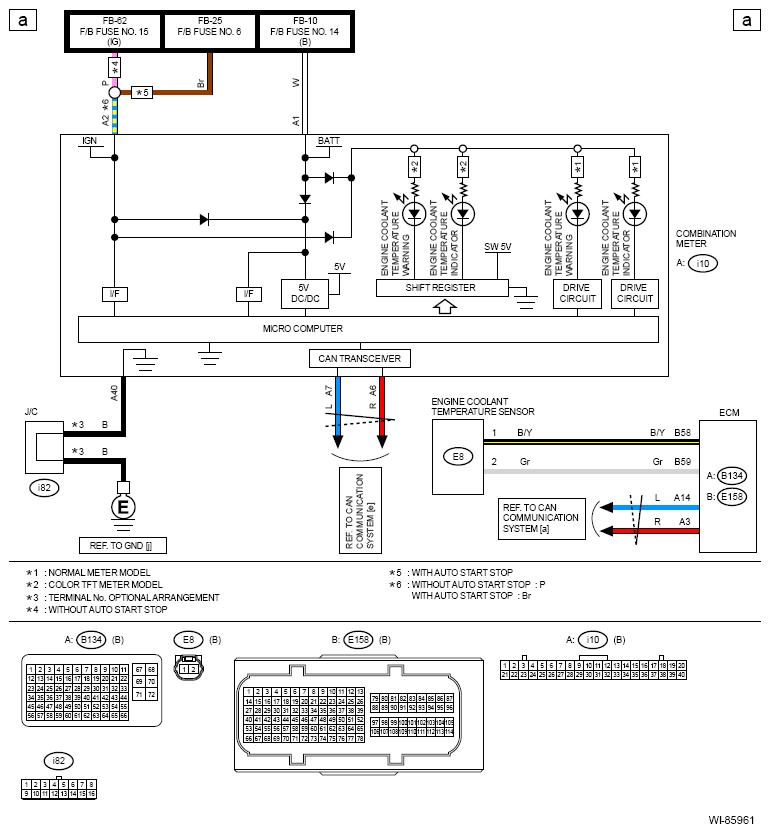

Coolant Temperature System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
