Normal Meter Model

WARNING: This page is about a different variant/trim than selected.
G12399672Courtesy of SUBARU OF AMERICA, INC.
G13614005Courtesy of SUBARU OF AMERICA, INC.

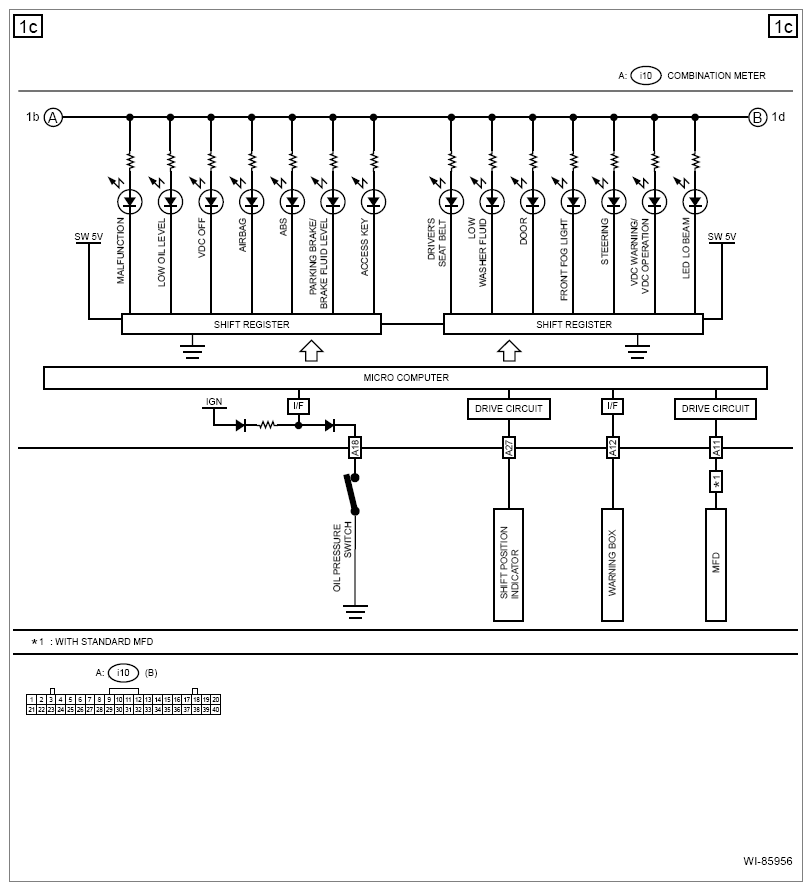

G13614006Courtesy of SUBARU OF AMERICA, INC.

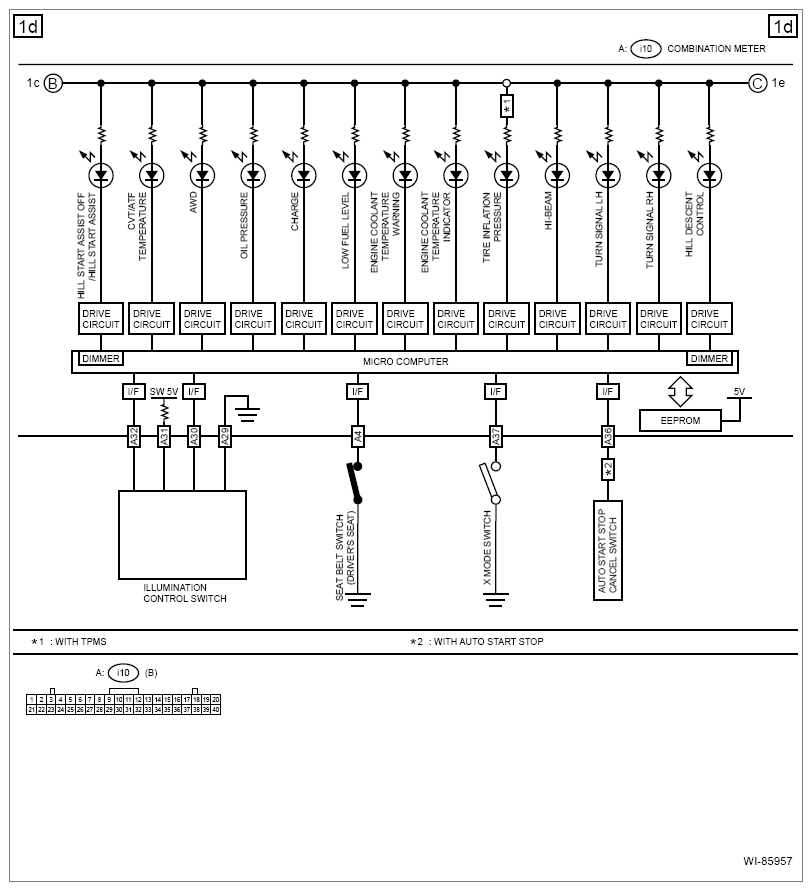

G13614007Courtesy of SUBARU OF AMERICA, INC.

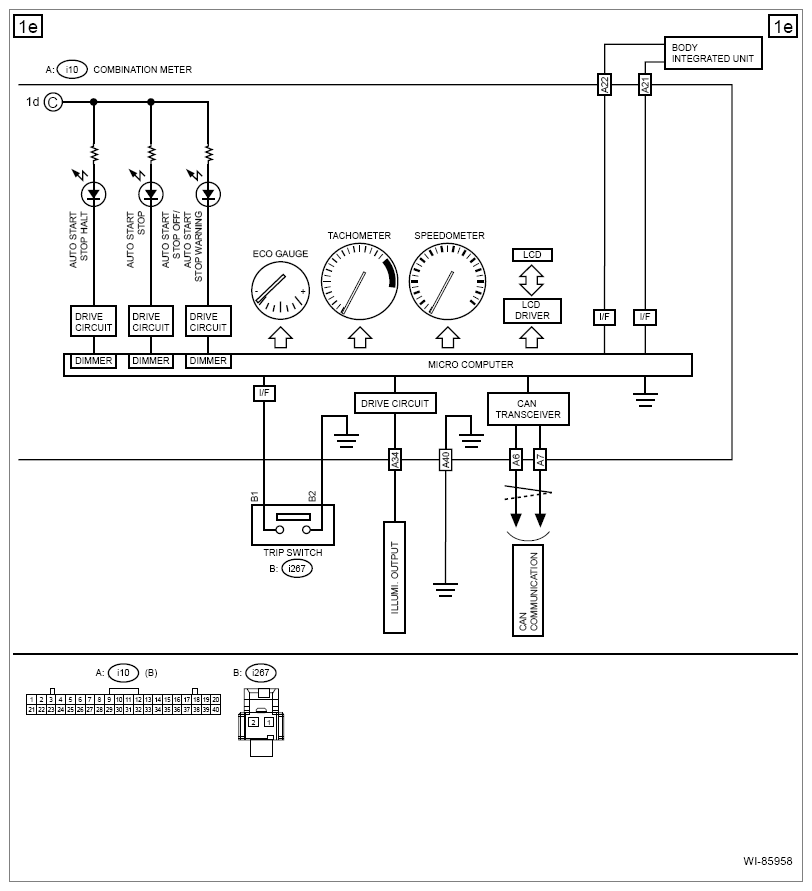

G13614008Courtesy of SUBARU OF AMERICA, INC.
