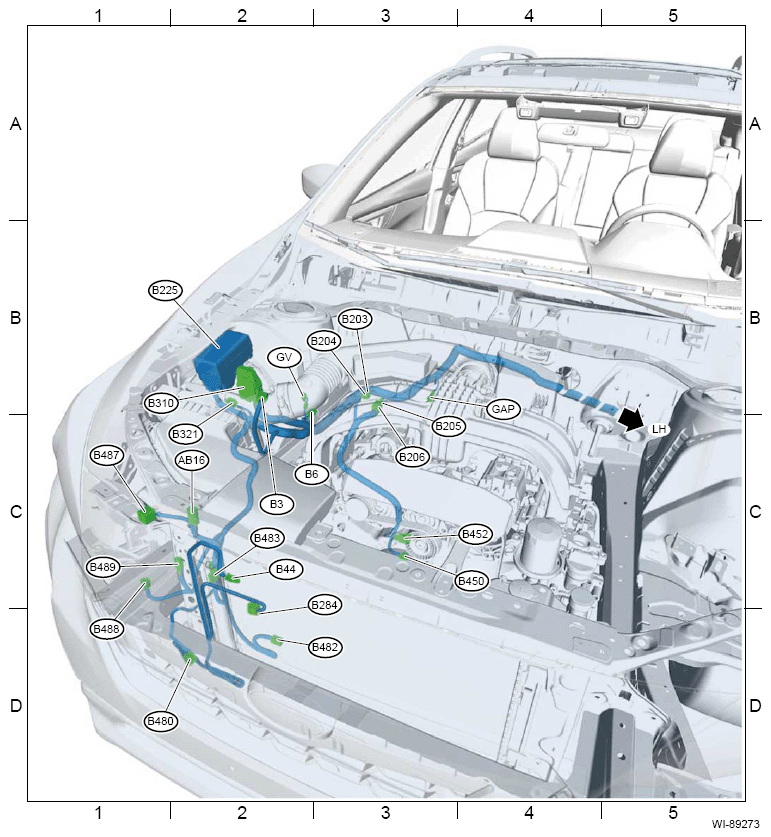

Bulkhead Wiring Harness (In Engine Compartment) RH: Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB16 |
2 |
Y |
C-2 |
|
Front sub sensor RH |
| B3 |
4 |
B |
B-2 |
|
Mass air flow & intake air temperature sensor |
| B6 |
2 |
Gr |
B-2 |
|
Front ABS wheel speed sensor RH |
| B44 |
1 |
B |
C-2 |
|
Horn LH |
| B203 |
3 |
Br |
B-3 |
B204 |
Electrical power steering harness |
| B204 |
3 |
Br |
B-3 |
B203 |
Bulkhead wiring harness |
| B205 |
2 |
Gr |
B-3 |
B206 |
Electrical power steering harness |
| B206 |
2 |
Gr |
B-3 |
B205 |
Bulkhead wiring harness |
| B225 |
59 |
B |
B-2 |
|
Relay holder |
| B284 |
4 |
B |
D-2 |
|
Front view monitor camera |
| B310 |
38 |
B |
B-2 |
|
VDC control module |
| B321 |
2 |
B |
B-2 |
|
Hood switch |
| B450 |
10 |
B |
C-3 |
|
Power steering control module |
| B452 |
2 |
B |
|
C-3 |
| B480 |
2 |
B |
D-2 |
|
Ambient sensor |
| B482 |
2 |
Gr |
D-2 |
|
Sub fan motor |
| B483 |
3 |
|
C-2 |
|
J/C |
| B487 |
8 |
Gr |
C-1 |
|
Front combination light RH (halogen model) |
| 16 |
Gr |
C-1 |
|
Front combination light RH (LED model) |
| B488 |
2 |
B |
C-1 |
|
Front fog light RH |
| B489 |
1 |
B |
C-2 |
|
Horn RH |
| GAP |
- |
- |
B-3 |
|
- |
| GV |
- |
- |
B-2 |
|
- |
