Blind Spot Detection/Rear Cross Traffic Alert: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

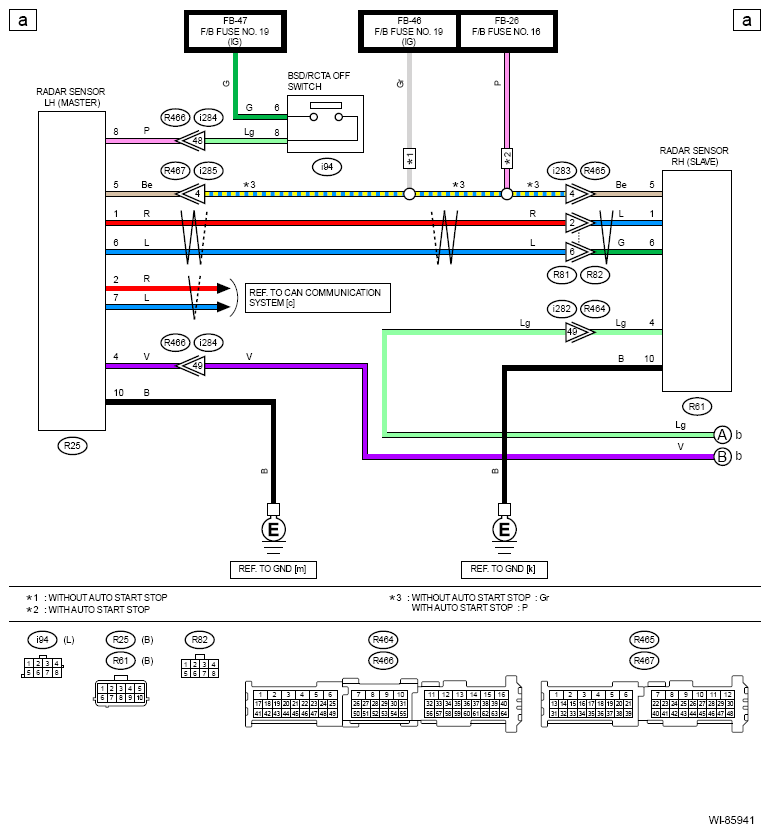

G13613985Courtesy of SUBARU OF AMERICA, INC.
G13613986Courtesy of SUBARU OF AMERICA, INC.
