Auto Start Stop: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

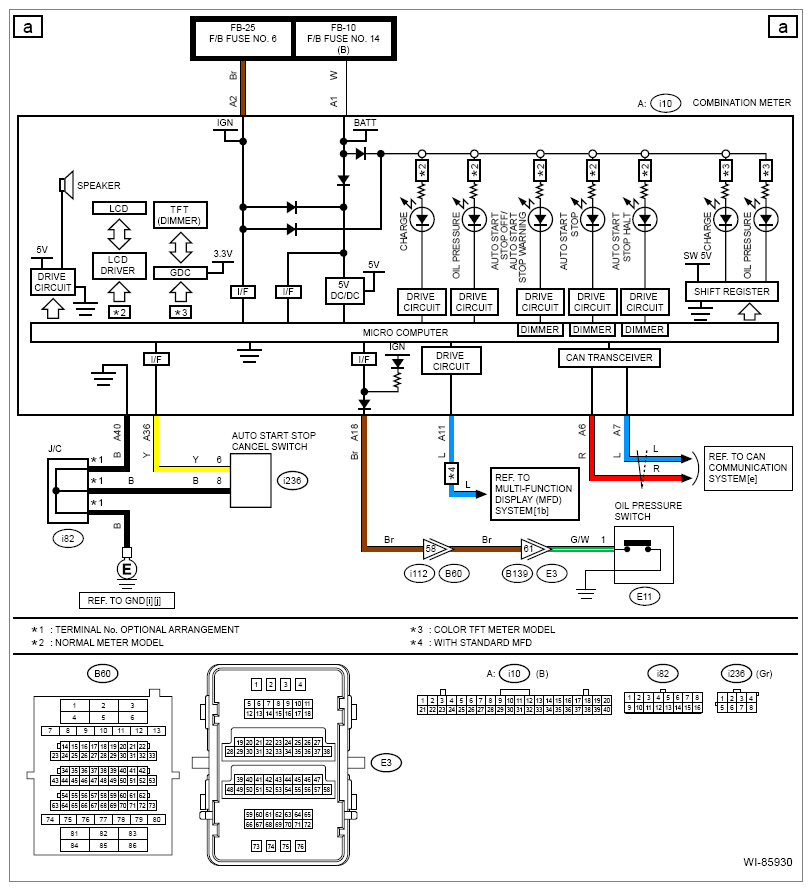

G13613974

Courtesy of SUBARU OF AMERICA, INC.

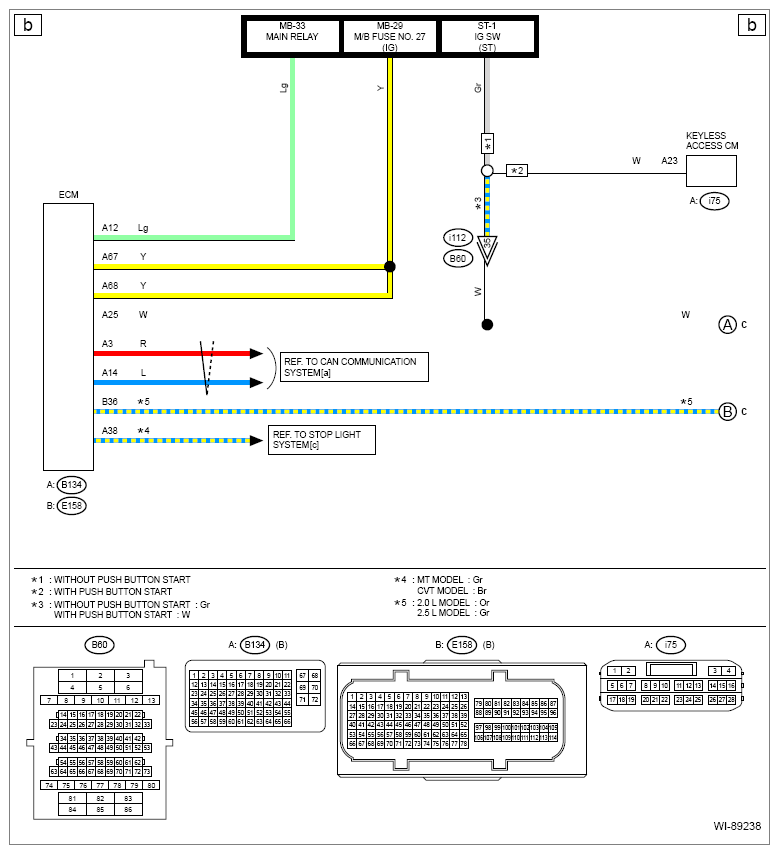

G13940286

Courtesy of SUBARU OF AMERICA, INC.

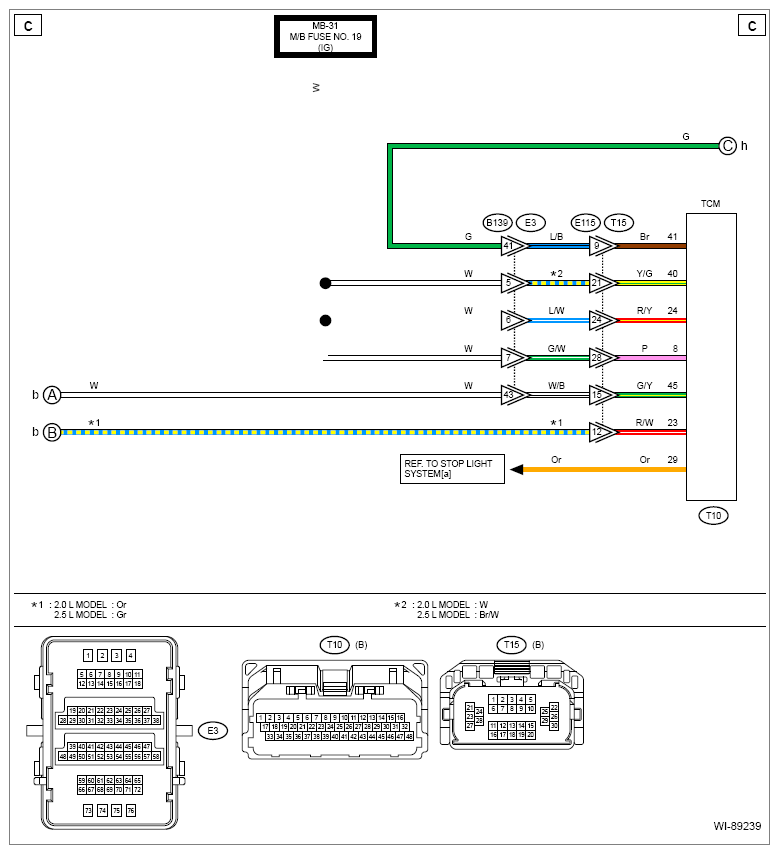

G13940287

Courtesy of SUBARU OF AMERICA, INC.

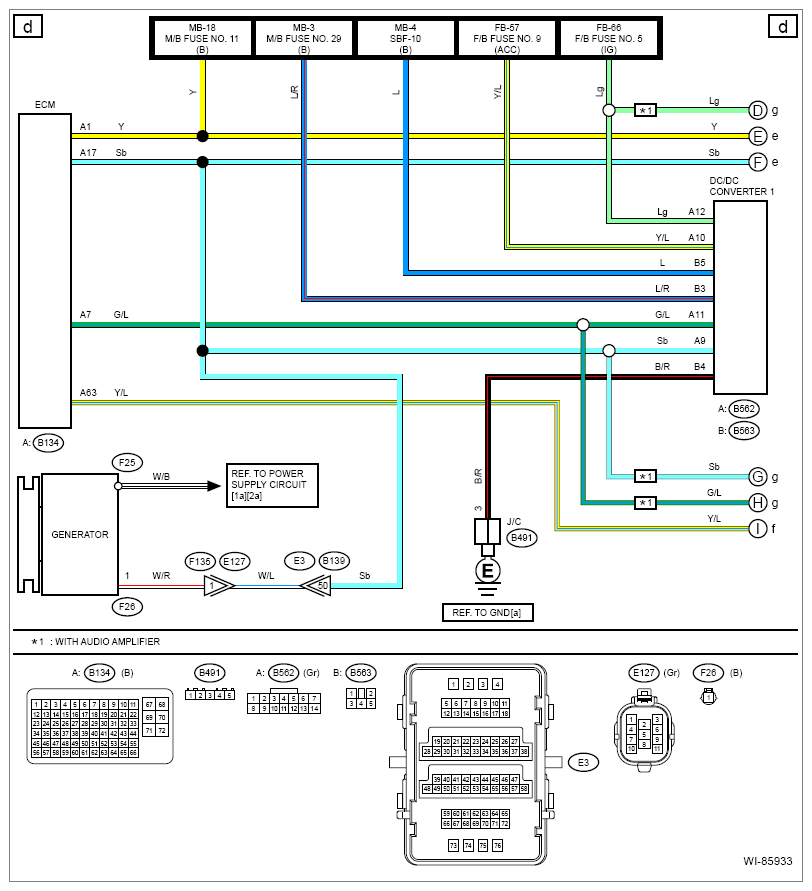

G13613977

Courtesy of SUBARU OF AMERICA, INC.

G13613978

Courtesy of SUBARU OF AMERICA, INC.

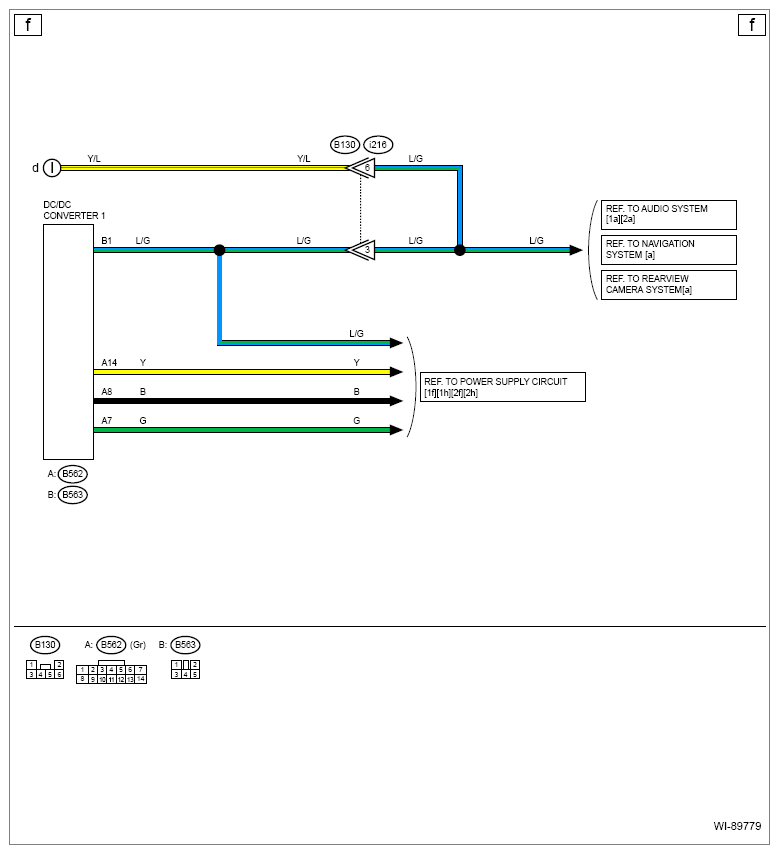

G13940290

Courtesy of SUBARU OF AMERICA, INC.

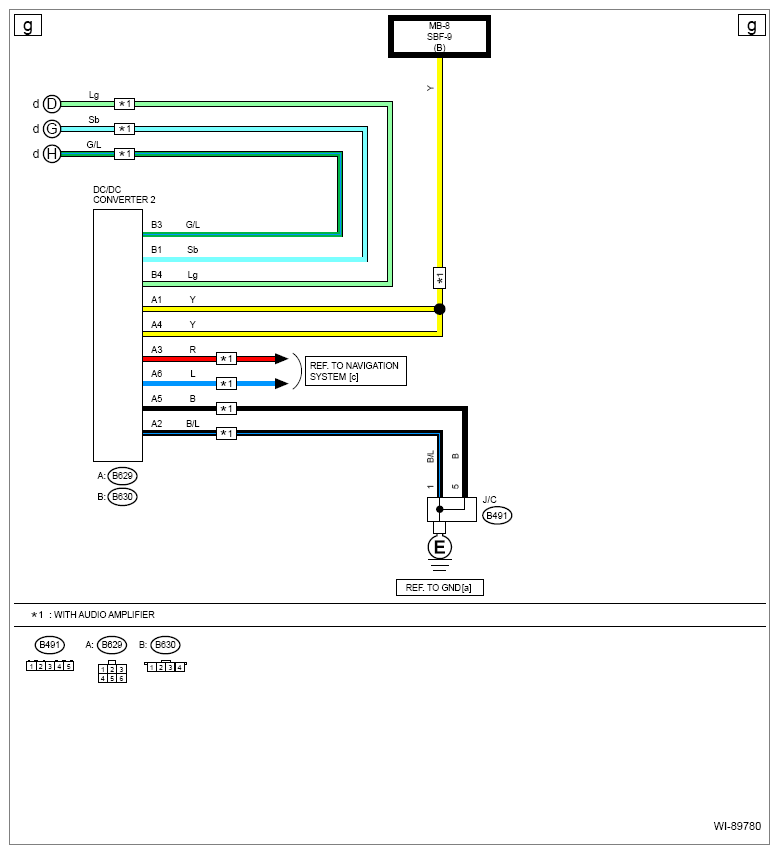

G13940291

Courtesy of SUBARU OF AMERICA, INC.

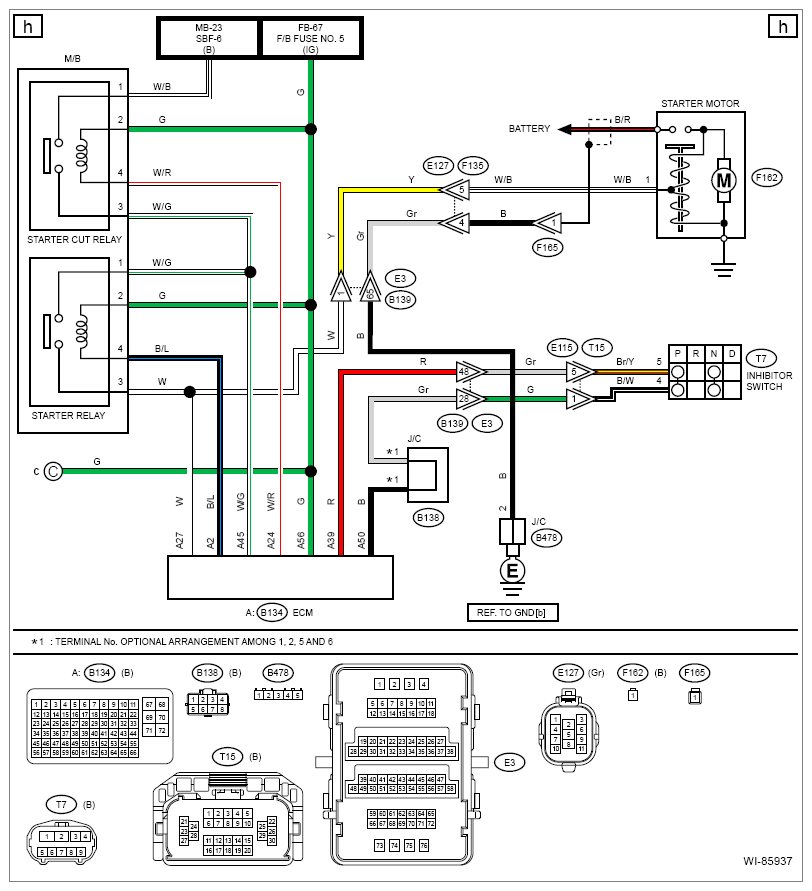

G13613981

Courtesy of SUBARU OF AMERICA, INC.

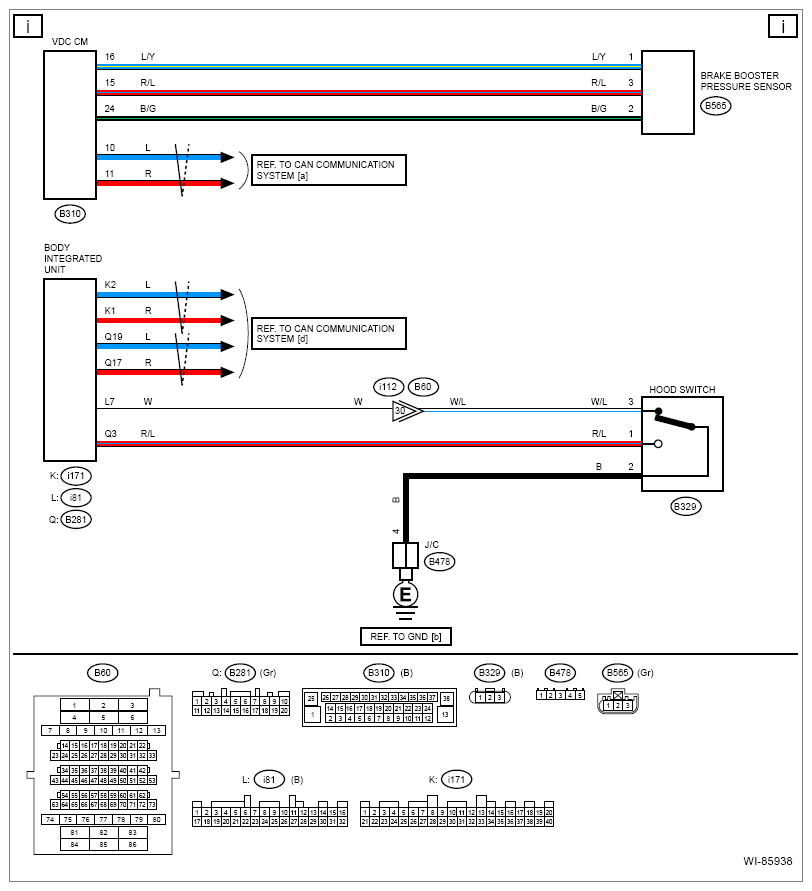

G13613982

Courtesy of SUBARU OF AMERICA, INC.
