Section 1 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except HEV))
>>
Audio System
>>

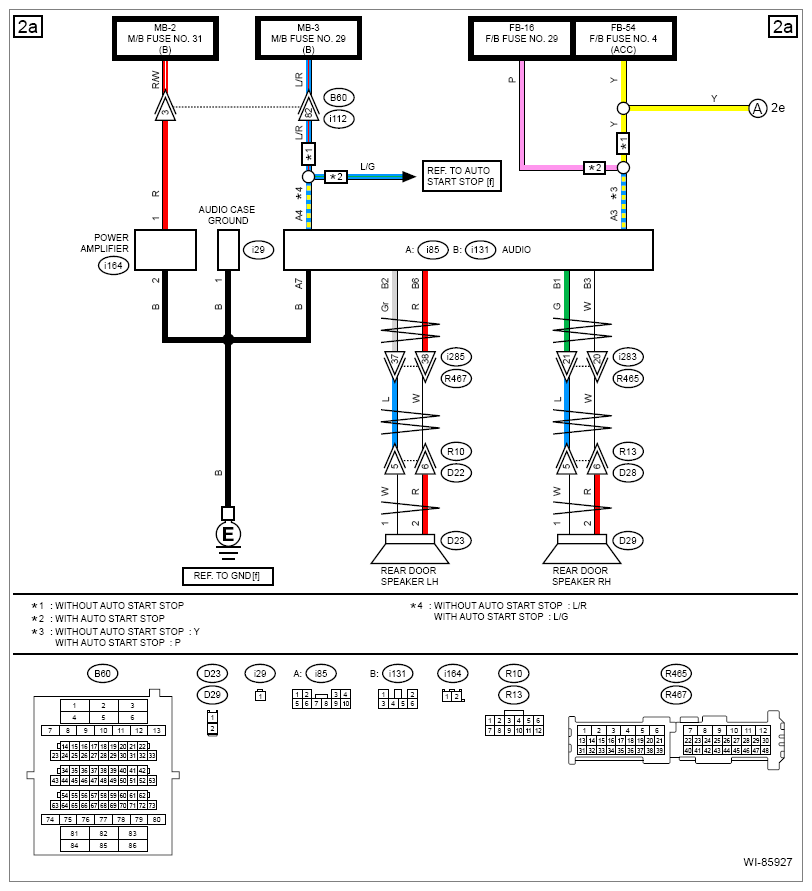

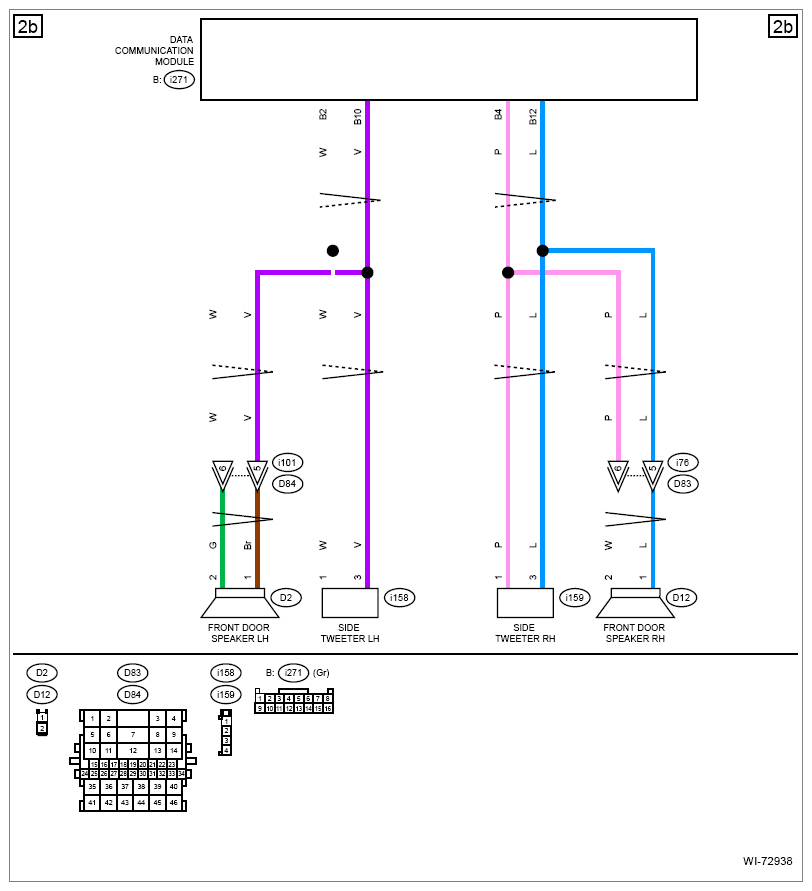

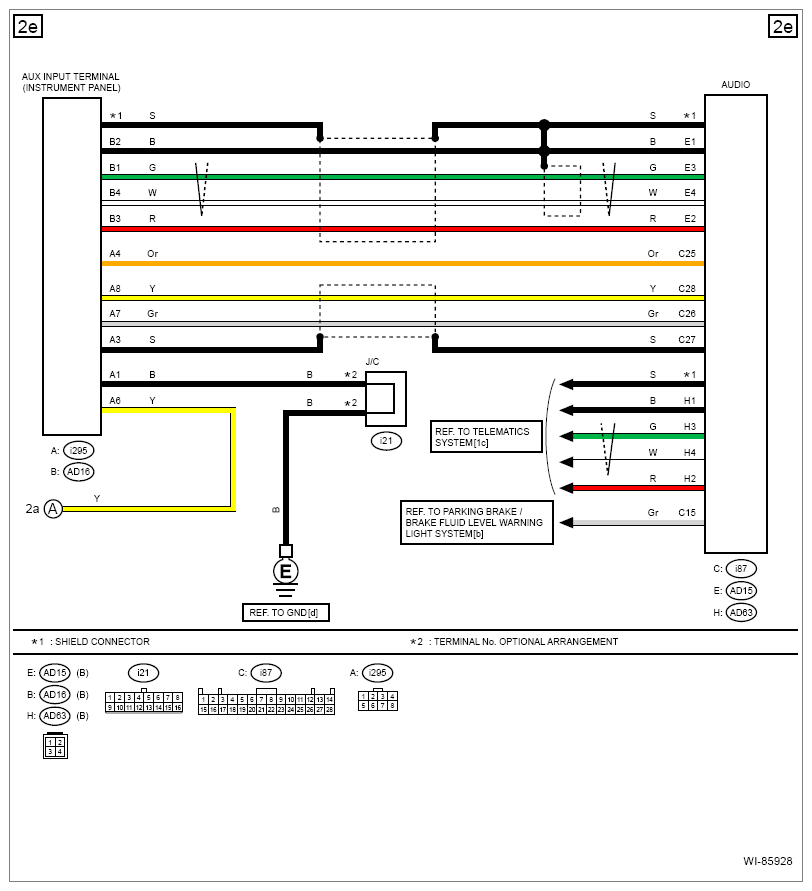

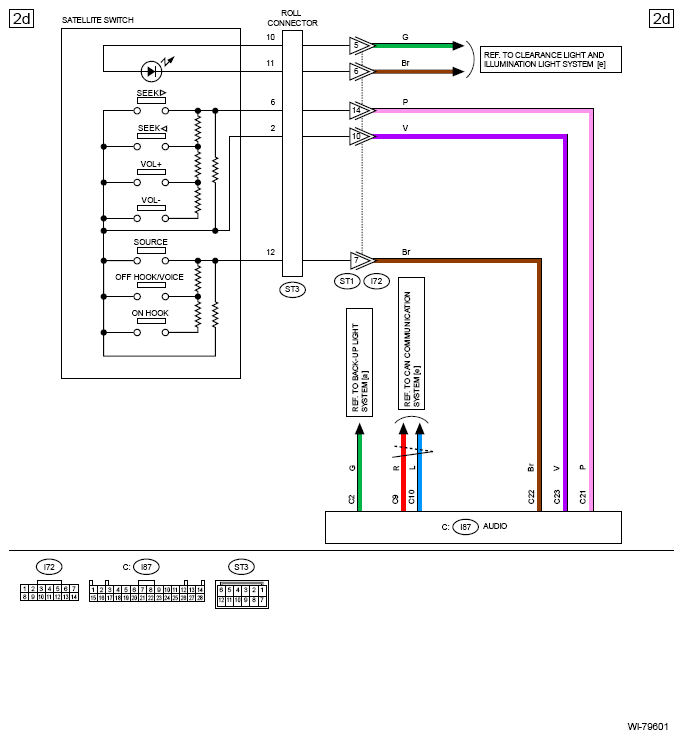

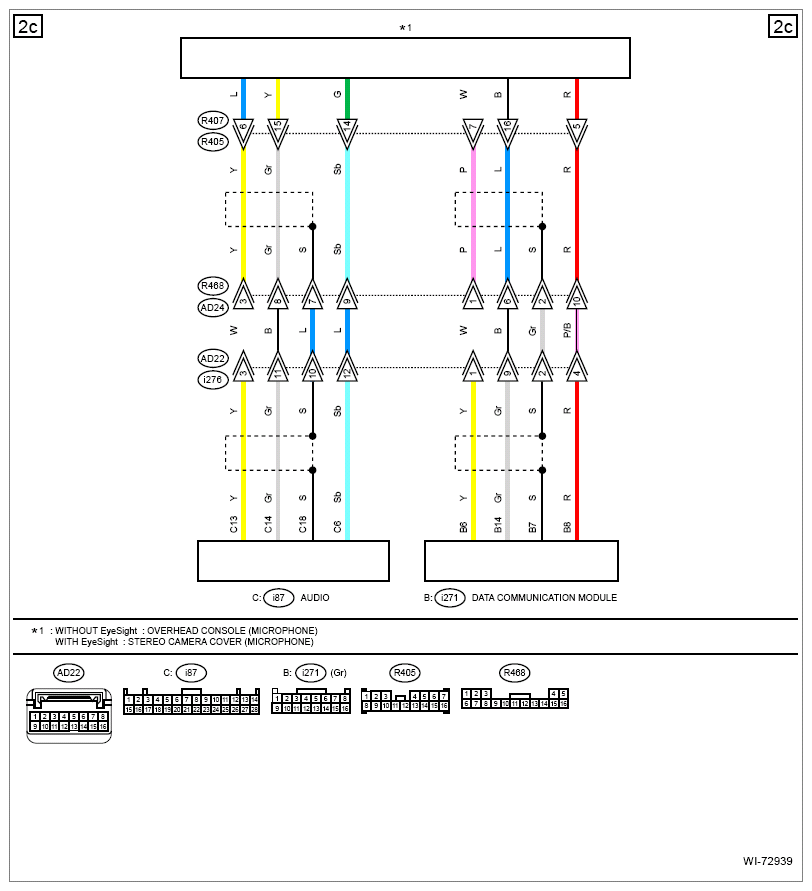

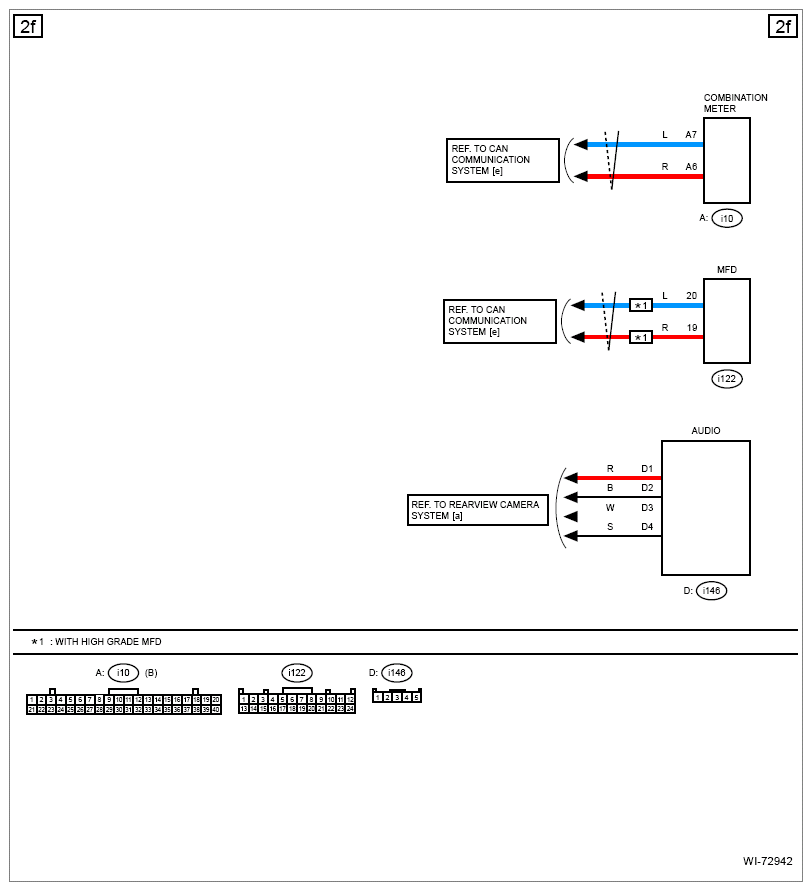

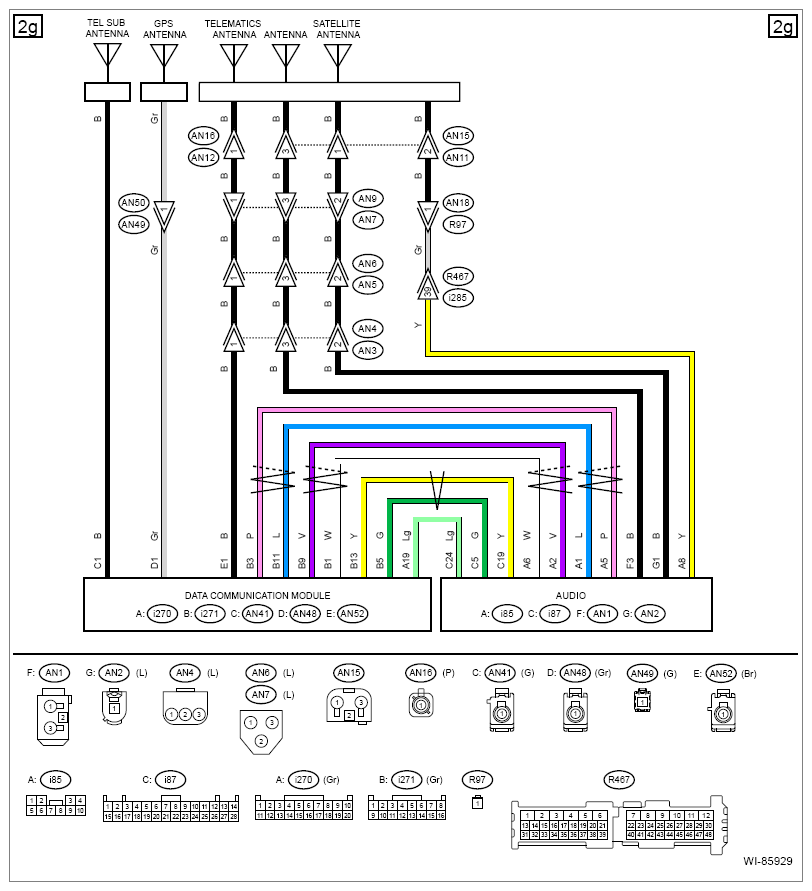

Wiring Diagram
>>
With Telematics
With Telematics
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
