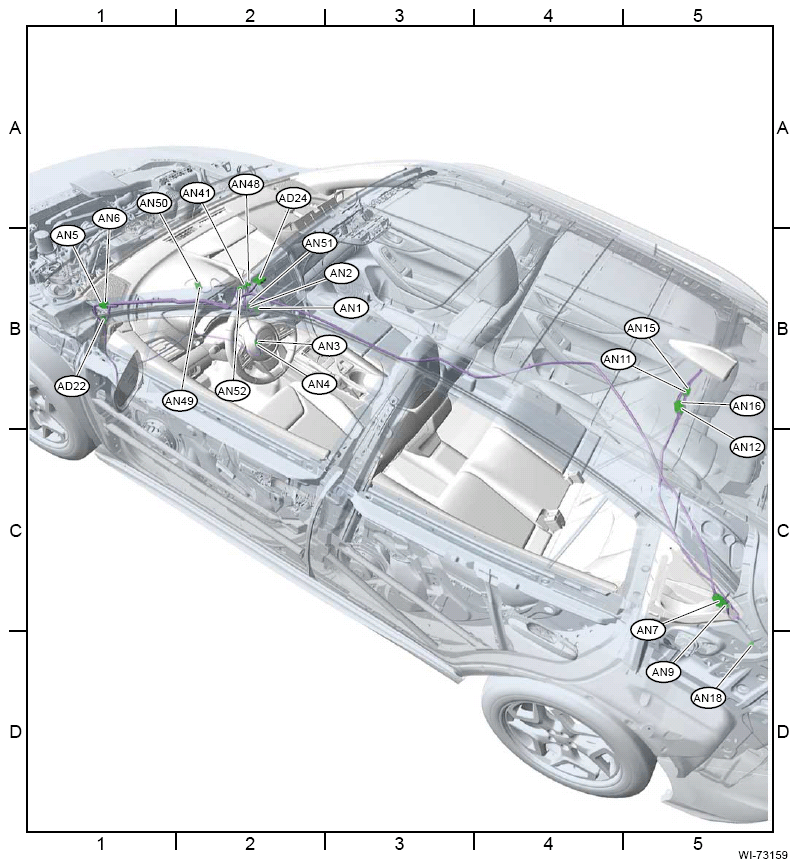

Antenna Cord: Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AD22 |
8 |
|
B-1 |
i276 |
Instrument panel wiring harness (without telematics) |
| 16 |
|
B-1 |
i276 |
Instrument panel wiring harness (with telematics) |
| AD24 |
16 |
|
B-2 |
R468 |
Roof cord |
| AN1 |
3 |
|
B-2 |
|
Audio |
| 3 |
|
B-2 |
|
Navigation unit |
| AN2 |
1 |
L |
B-2 |
|
Audio |
| 1 |
L |
B-2 |
|
Navigation unit |
| AN3 |
4 |
|
B-2 |
AN4 |
Antenna cord (without telematics) |
| 3 |
L |
B-2 |
AN4 |
Antenna cord (with telematics) |
| AN4 |
4 |
|
B-2 |
AN3 |
Antenna cord (without telematics) |
| 3 |
L |
B-2 |
AN3 |
Antenna cord (with telematics) |
| AN5 |
3 |
|
B-1 |
AN6 |
Antenna cord (without telematics) |
| 3 |
L |
B-1 |
AN6 |
Antenna cord (with telematics) |
| AN6 |
3 |
|
B-1 |
AN5 |
Antenna cord (without telematics) |
| 3 |
L |
B-1 |
AN5 |
Antenna cord (with telematics) |
| AN7 |
3 |
|
C-5 |
AN9 |
Antenna cord (without telematics) |
| 3 |
L |
C-5 |
AN9 |
Antenna cord (with telematics) |
| AN9 |
3 |
|
C-5 |
AN7 |
Antenna cord (without telematics) |
| 3 |
L |
C-5 |
AN7 |
Antenna cord (with telematics) |
| AN11 |
3 |
|
B-5 |
AN15 |
Antenna |
| AN12 |
1 |
P |
B-5 |
AN16 |
| AN15 |
3 |
|
B-5 |
AN11 |
Antenna cord |
| AN16 |
1 |
P |
B-5 |
AN12 |
| AN18 |
1 |
|
D-5 |
R97 |
Rear wiring harness LH |
| AN41 |
1 |
G |
B-2 |
|
Data communication module |
| AN48 |
1 |
Gr |
B-2 |
|
| AN49 |
1 |
G |
B-2 |
AN50 |
GPS antenna (without navigation) |
| 3 |
|
B-2 |
AN50 |
GPS antenna (with navigation) |
| AN50 |
1 |
G |
B-2 |
AN49 |
GPS antenna (without navigation) |
| 3 |
|
B-2 |
AN49 |
GPS antenna (with navigation) |
| AN51 |
1 |
Gr |
B-2 |
|
Navigation unit |
| AN52 |
1 |
Br |
B-2 |
|
Data communication module |
