Airbag System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

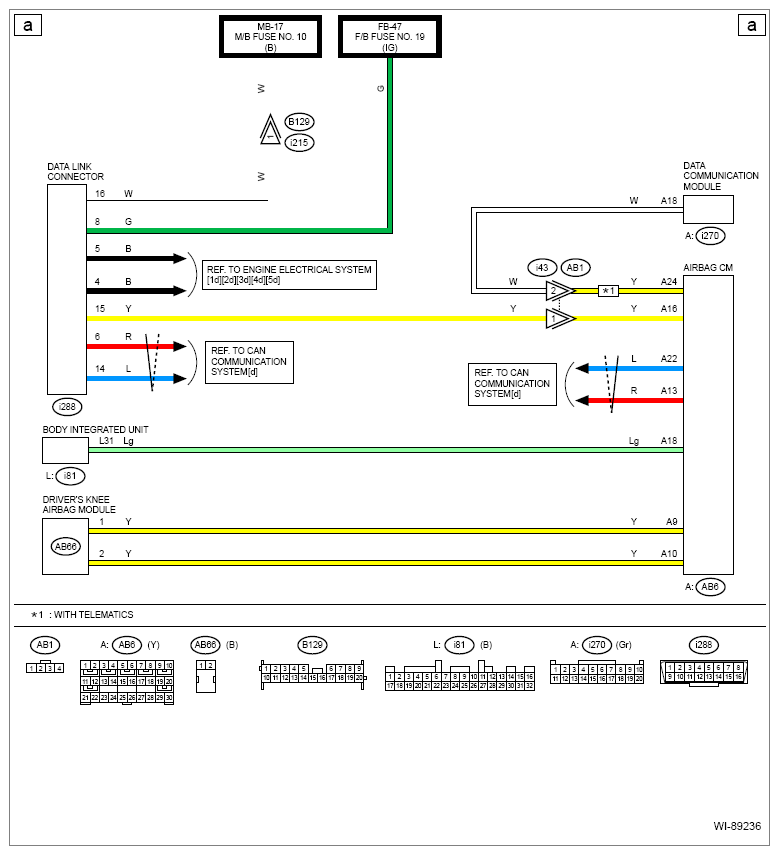

G13940258Courtesy of SUBARU OF AMERICA, INC.

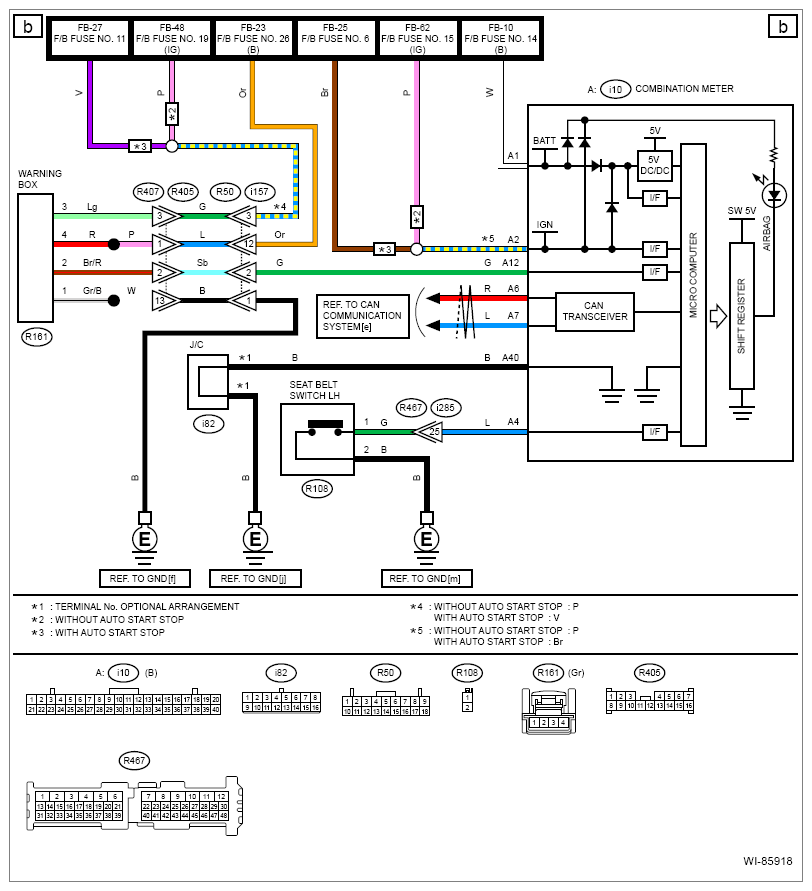

G13613948Courtesy of SUBARU OF AMERICA, INC.

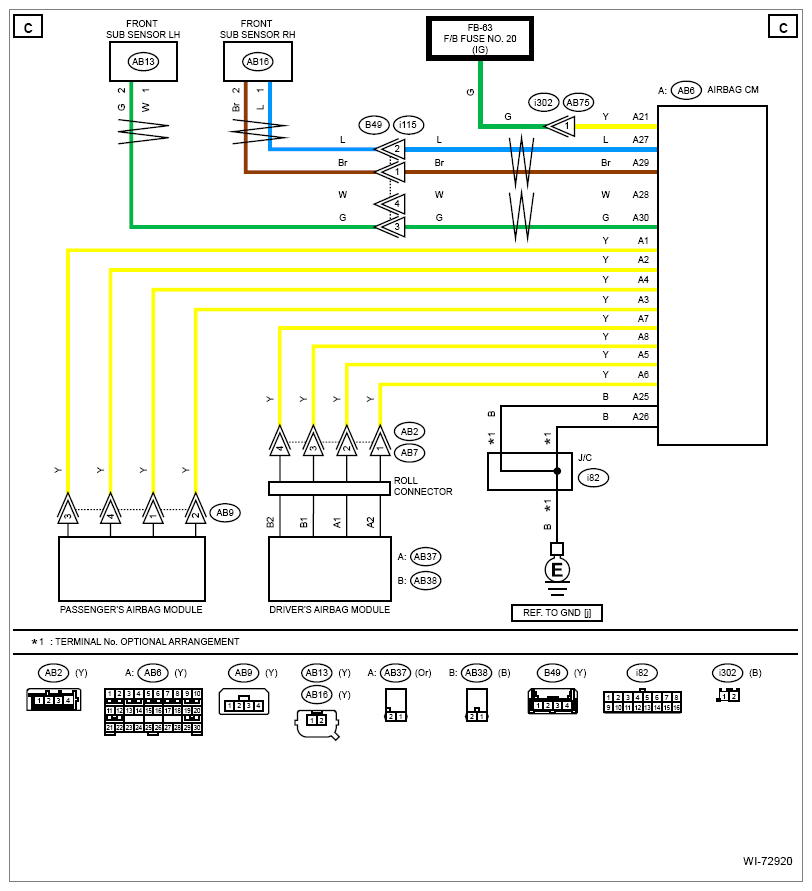

G12399630Courtesy of SUBARU OF AMERICA, INC.

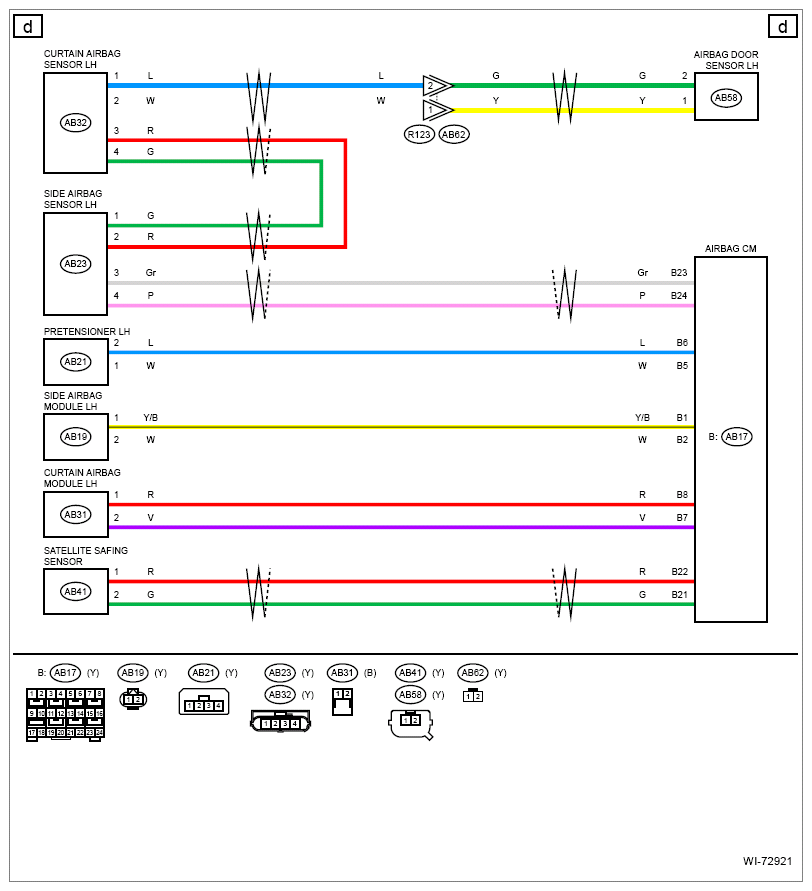

G12399631Courtesy of SUBARU OF AMERICA, INC.

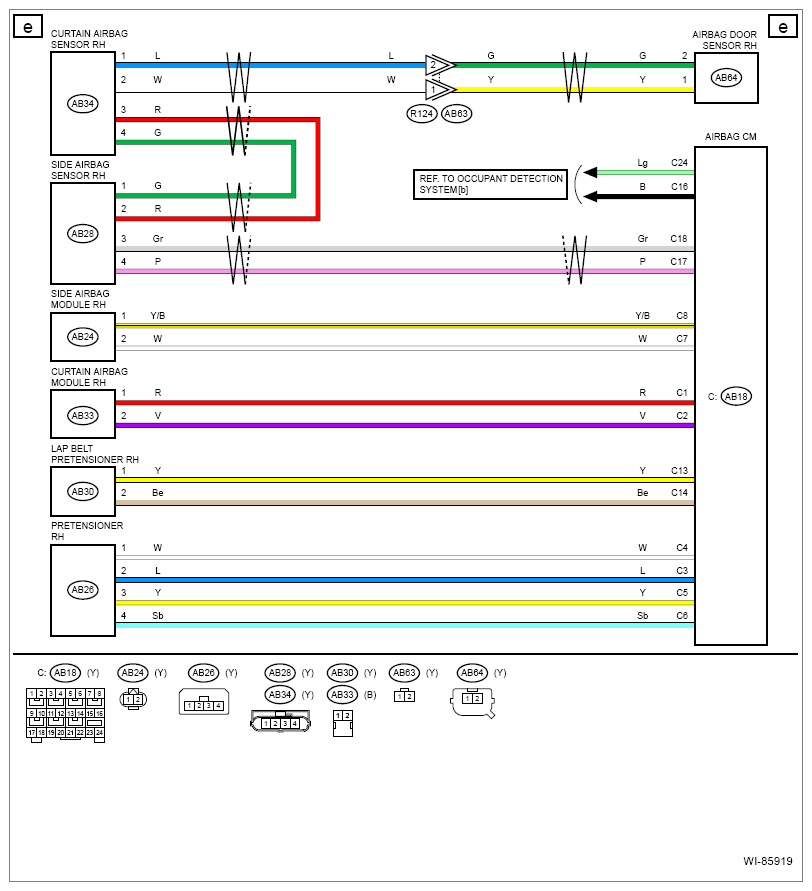

G13613951Courtesy of SUBARU OF AMERICA, INC.
