DTC P0890: TCM Power Relay Sense Circuit Low: Notes

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

1. -

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Improper gear shifting

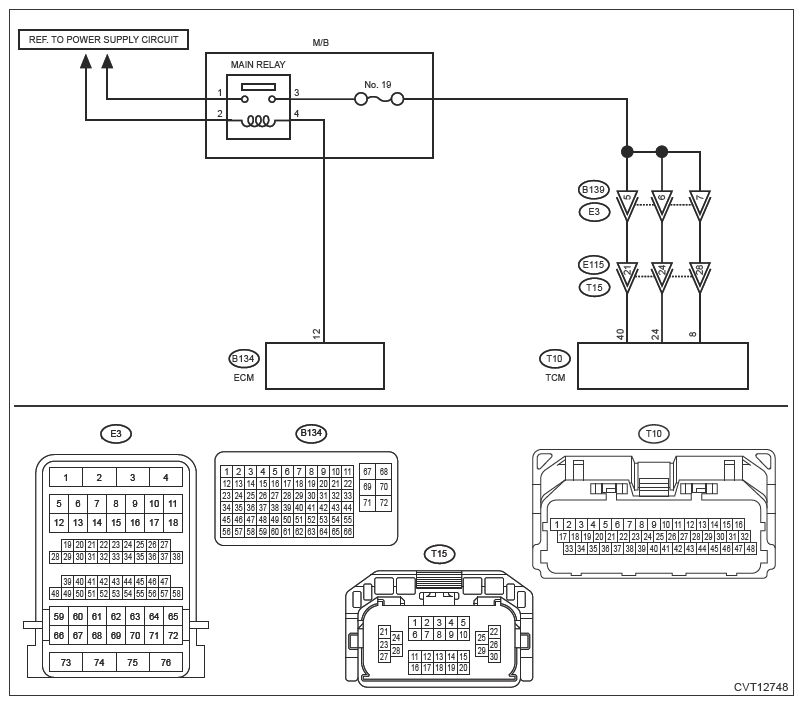

Wiring diagram:

DC power supply circuit Ref. to WIRING SYSTEM (IMPREZA MODEL)>POWER SUPPLY CIRCUIT .

CVT control system Ref. to WIRING SYSTEM (IMPREZA MODEL)>CVT CONTROL SYSTEM .

Engine electrical system Ref. to WIRING SYSTEM (IMPREZA MODEL)>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Use the check board when measuring the TCM/ECM terminal voltage and resistance.
After servicing or replacing faulty parts, perform the last step of the basic diagnostic procedure.

CHECK HARNESS .
1. Disconnect the TCM connector.
2. Remove the main relay.
3. Measure the resistance between TCM connector and M/B.
  Connector & terminal

  (T10) No. 8 - (M/B) No. 3:

  (T10) No. 24 - (M/B) No. 3:

  (T10) No. 40 - (M/B) No. 3:
Is the resistance less than 1 Ω?

Yes: Go to 2.

No: Repair the open circuit of harness.
CHECK HARNESS .
1. Disconnect the ECM connector.
2. Measure the resistance between ECM connector and M/B.
  Connector & terminal

  (B134) No. 12 - (M/B) No. 4:
Is the resistance less than 1 Ω?

Yes: Go to 3.

No: Repair the open circuit of harness.
CHECK HARNESS .
Measure the resistance between TCM connector and chassis ground.

Connector & terminal

(T10) No. 8 - Chassis ground:

(T10) No. 24 - Chassis ground:

(T10) No. 40 - Chassis ground:

Is the resistance 1 MΩ or more?

Yes: Go to 4.

No: Repair the short circuit of harness.
CHECK RELAY POWER SUPPLY .
Measure the voltage between M/B and chassis ground.

Connector & terminal

(M/B) No. 1 (+) - Chassis ground (-):

(M/B) No. 2 (+) - Chassis ground (-):

Is the voltage 10 V or more?

Yes: Go to 5.

No: Repair the open or short circuit of harness.
CHECK MAIN RELAY .
1. Turn the ignition switch to OFF.
2. Check the main relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>MAIN RELAY>INSPECTION .
Is the check result OK?

Yes: Go to 6.

No: Replace the main relay.
CHECK INPUT SIGNAL FOR TCM .
1. Connect all connectors.
2. Install the main relay.
3. Using the Subaru Select Monitor, read data of [Control module voltage] in the [Data Monitor] of [Transmission]. Ref. to TRANSMISSION (DIAGNOSTICS) (IMPREZA MODEL)>DATA MONITOR .
Is [Control module voltage] 10 V or more?

Yes: Current condition is normal. Check for poor contact in connectors or harnesses, and repair the defective part.

No: Go to 7.
CHECK MAIN RELAY .
1. Turn the ignition switch to OFF.
2. Replace the main relay.
3. Using the Subaru Select Monitor, perform the clear memory of [Transmission]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
4. Read the DTC of [Transmission] using the Subaru Select Monitor. Ref. to TRANSMISSION (DIAGNOSTICS) (IMPREZA MODEL)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC P0890 displayed?

Yes: Replace the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CONTROL MODULE (TCM) .

No: The original main relay is defective.
