Secondary Speed Sensor: Removal

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  • When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the harness connector from secondary speed sensor.

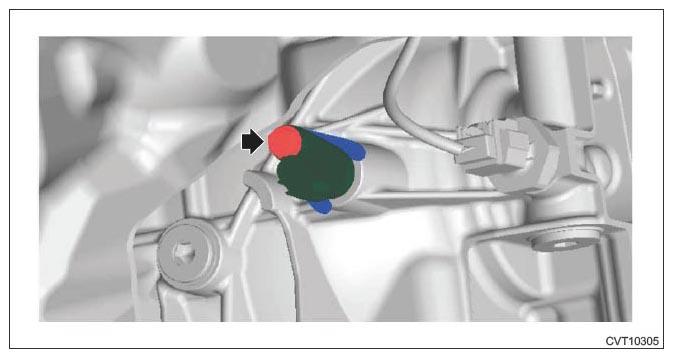

  4. Remove the secondary speed sensor and spacer.
    G11255625Courtesy of SUBARU OF AMERICA, INC.
