Inhibitor Switch: Installation

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inhibitor switch to the transmission case temporarily.
    G11255610Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector.

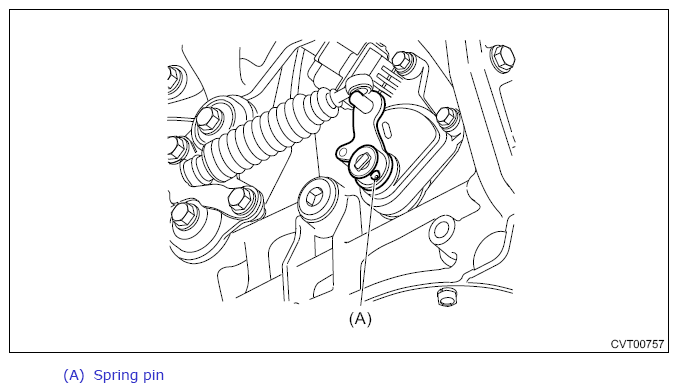

  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.
    G13936592Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    Preparation tool:  ST: STOPPER PIN (499267300)

    G11255606Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:  5 N.m (0.5 kgf-m, 3.7 ft-lb)

  7. Install the select cable to the shifter arm.

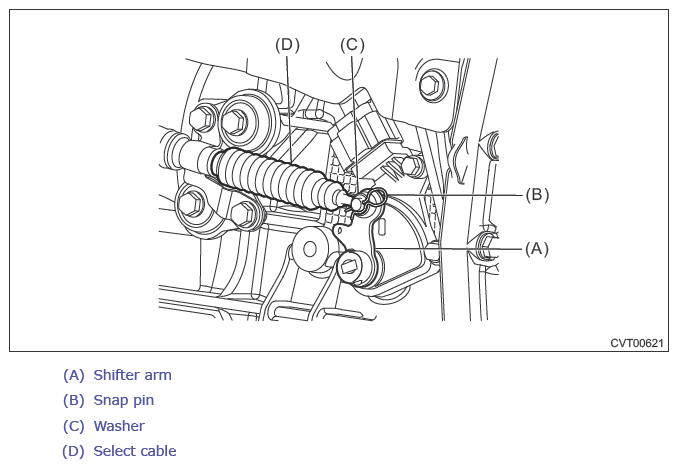

  8. Install the select cable, washer and snap pin.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13936595Courtesy of SUBARU OF AMERICA, INC.
  9. Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
  10. Lower the vehicle.
  11. Shift the select lever to "P range".
  12. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  13. Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>INHIBITOR SWITCH>INSPECTION .
