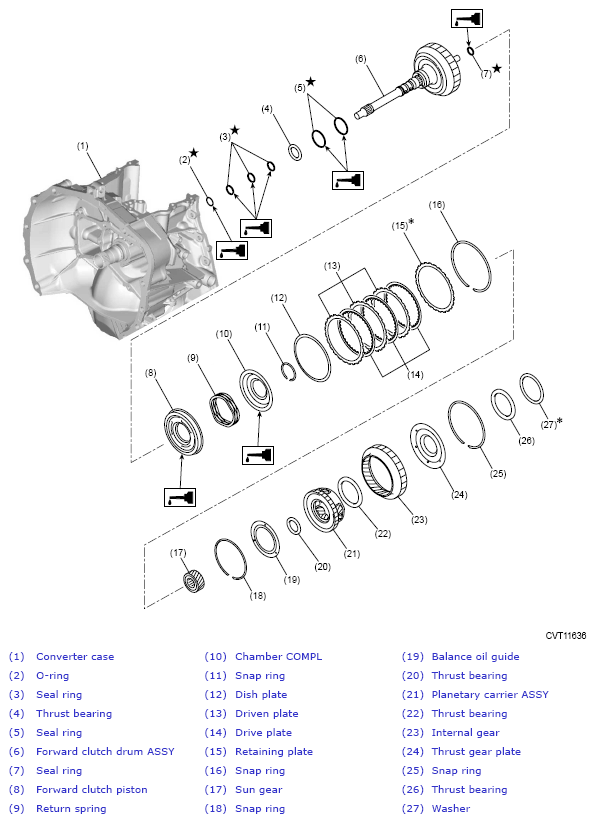

Forward Clutch Assembly

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
G13936388Courtesy of SUBARU OF AMERICA, INC.
