Drive Pinion Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

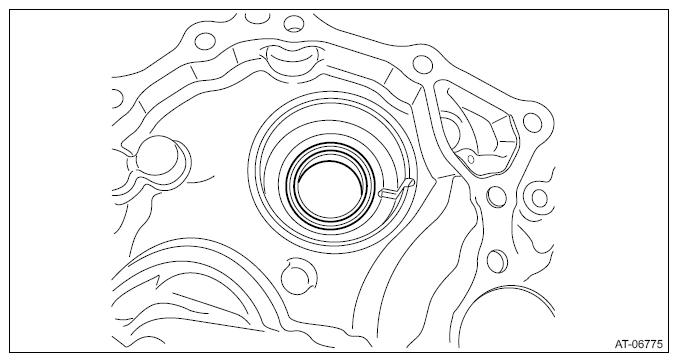

Flatten the tab of the lock nut.
Using ST1, ST2 and ST3, fix at the spline portion of drive pinion shaft to remove the lock nut.
Preparation tool:

ST1: ADAPTER (499787500)

ST2: WRENCH (499787700)

ST3: HOLDER (498937110)

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion shaft from the drive pinion retainer.

Courtesy of SUBARU OF AMERICA, INC.
Using the round bar with diameter of 36 mm (1.42 in) or 37 mm (1.46 in), remove the bearing inner race and plug.

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion washer.
Remove the drive pinion spacer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Remove the inner race and drive pinion shim from drive pinion shaft using the ST.
Preparation tool:

ST: REMOVER (498515500)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the outer race.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.
Remove the two oil seals using a screwdriver wrapped with cloth, etc.
CAUTION: Do not damage the fitting surface of oil seal.

Courtesy of SUBARU OF AMERICA, INC.
Remove the plug from drive pinion retainer.

Courtesy of SUBARU OF AMERICA, INC.
