Differential Gear Oil: Replacement

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Immediately after the vehicle has been running or after idling for a long time, the differential gear oil will be hot. Be careful not to burn yourself  .
  • Be careful not to spill differential gear oil on the exhaust pipe to prevent it from emitting smoke or causing a fire. If gear oil adheres, wipe it off completely  .
  1. Lift up the vehicle.
  2. Remove the differential gear oil drain plug using TORX® bit T70. Drain differential gear oil.
  3. Install the differential gear oil drain plug using TORX® bit T70.
    NOTE: Use a new gasket.

    Tightening torque:

    70 N.m (7.1 kgf-m, 51.6 ft-lb)

    G11255490Courtesy of SUBARU OF AMERICA, INC.

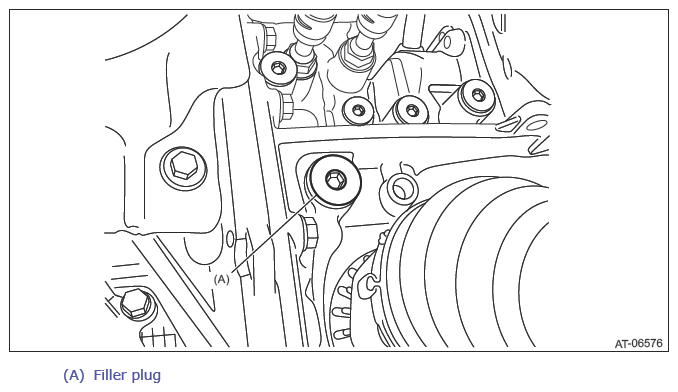

  4. Remove the filler plug.
    G13936467Courtesy of SUBARU OF AMERICA, INC.
  5. Pour gear oil into the filler plug hole.

    Recommended gear oil:

    Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>GENERAL DESCRIPTION>SPECIFICATION>RECOMMENDED GEAR OIL .

    Gear oil capacity:

    Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>GENERAL DESCRIPTION>SPECIFICATION>RECOMMENDED GEAR OIL .

    G10218493Courtesy of SUBARU OF AMERICA, INC.
  6. Adjust the level of differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>DIFFERENTIAL GEAR OIL>ADJUSTMENT .
