Reverse Idler Gear: Installation

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse shifter lever, adjusting washer, reverse idler gear, reverse idler gear shaft and washer, and secure them with a new straight pin.
    CAUTION: Be sure to install the reverse idler gear shaft from rear side.

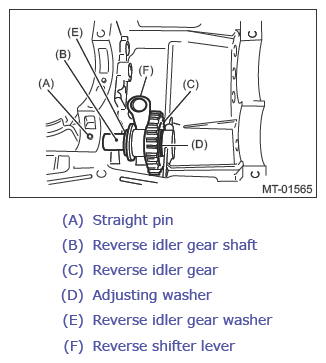

    G13937498Courtesy of SUBARU OF AMERICA, INC.
  2. Check and adjust clearance between the reverse idler gear and the timing case wall surface. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>REVERSE IDLER GEAR>INSPECTION .
  3. Install the shifter forks and rods. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>SHIFTER FORK AND ROD>INSTALLATION .
  4. Install the front differential assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>FRONT DIFFERENTIAL ASSEMBLY>INSTALLATION .
  5. Install the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> MAIN SHAFT ASSEMBLY>INSTALLATION .
  6. Install the drive pinion shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>DRIVE PINION SHAFT ASSEMBLY>INSTALLATION .
  7. Install the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> TRANSMISSION CASE>INSTALLATION .
  8. Install the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> TRANSFER CASE AND EXTENSION CASE ASSEMBLY>INSTALLATION .
  9. Install the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>SWITCHES AND HARNESS>INSTALLATION .
  10. Install the manual transmission assembly to the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
