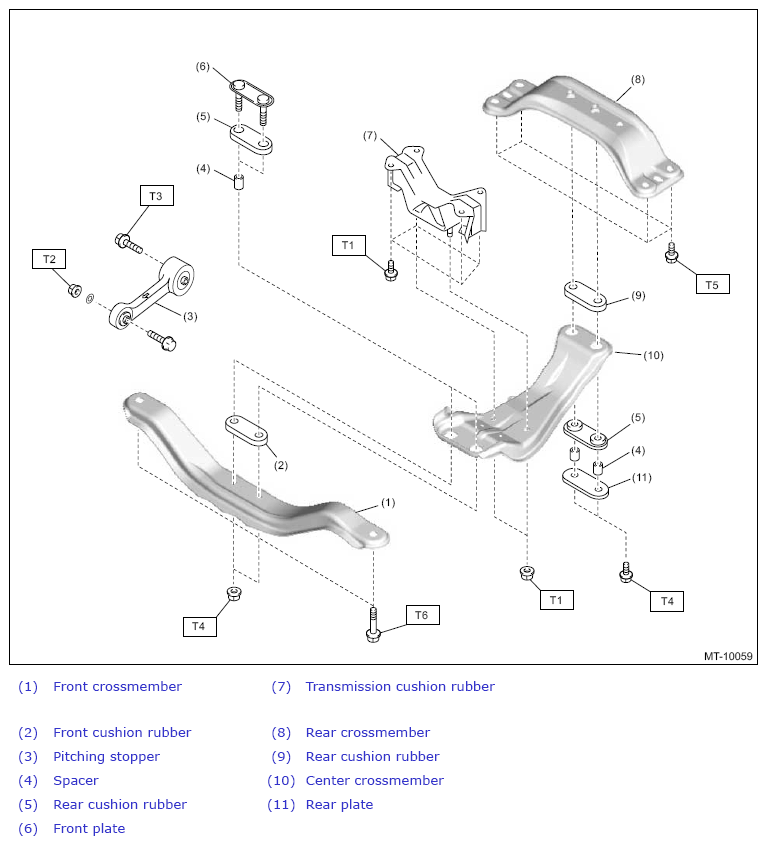

Transmission Mounting
WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 35 (3.6, 25.8)
T2: 50 (5.1, 36.9)
T3: 58 (5.9, 42.8)
T4: 70 (7.1, 51.6)
T5: 75 (7.6, 55.3)
T6: 140 (14.3, 103.3)
