Without Telematics

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

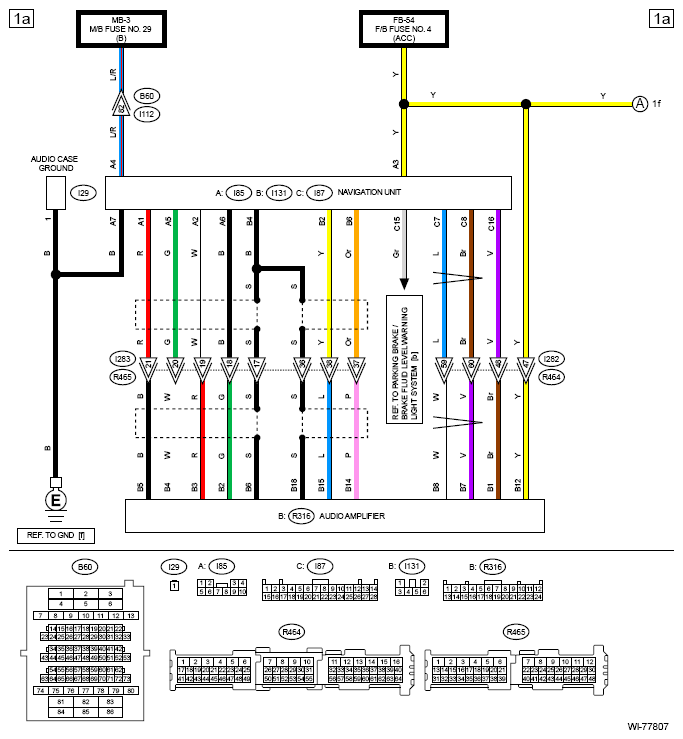

G13236007Courtesy of SUBARU OF AMERICA, INC.

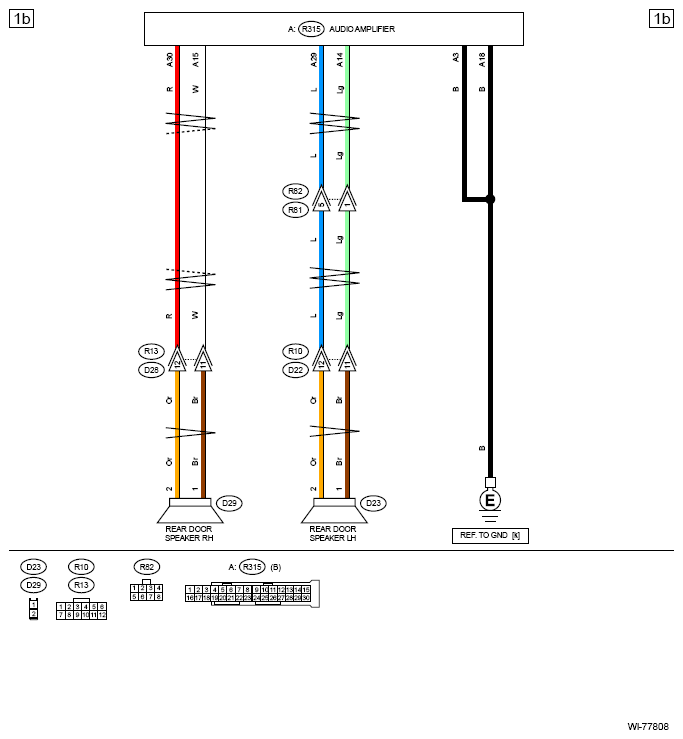

G13236008Courtesy of SUBARU OF AMERICA, INC.

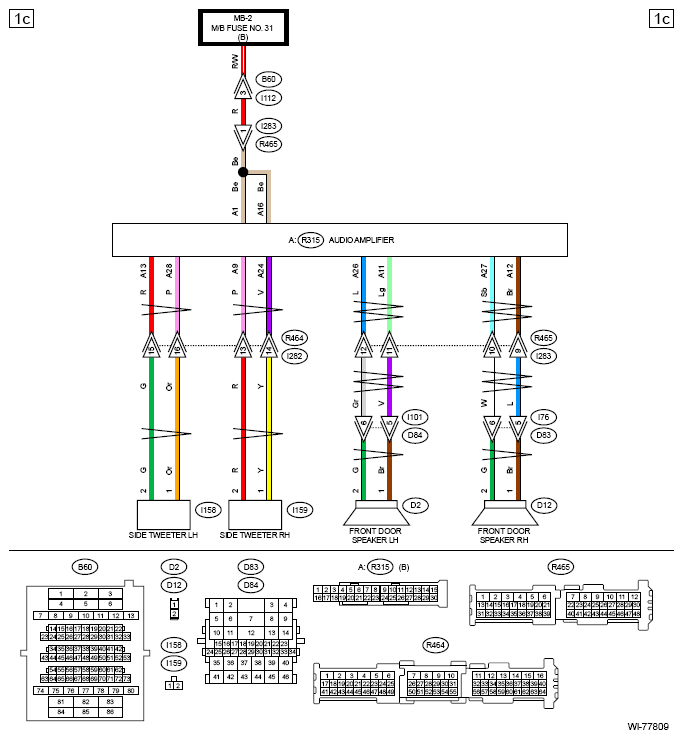

G13236009Courtesy of SUBARU OF AMERICA, INC.
G13236010Courtesy of SUBARU OF AMERICA, INC.

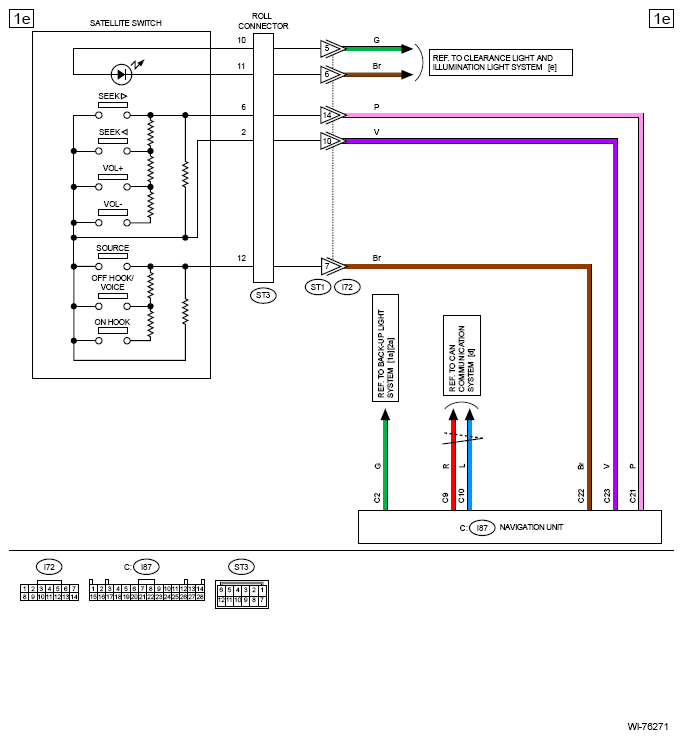

G13236011Courtesy of SUBARU OF AMERICA, INC.
G13940103Courtesy of SUBARU OF AMERICA, INC.
G13236013Courtesy of SUBARU OF AMERICA, INC.
G13607801Courtesy of SUBARU OF AMERICA, INC.
