Engine Compartment Side

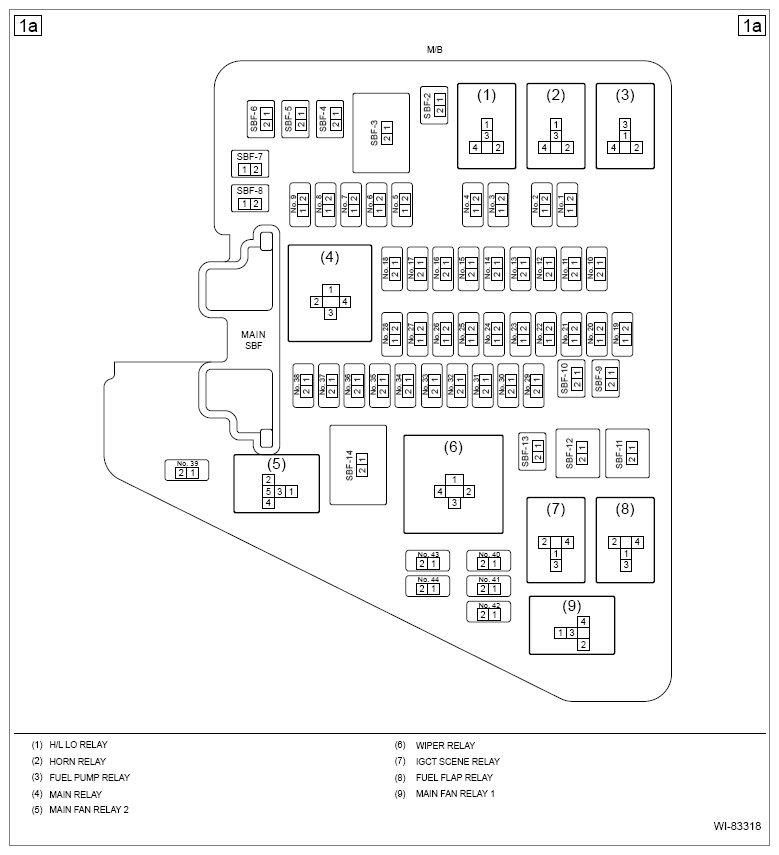

ENGINE COMPARTMENT RELAY IDENTIFICATION (1 OF 2)
| Relay Description |
|---|
| H/L Lo Relay |
| Horn Relay |
| Fuel Pump Relay |
| Main Relay |
| Main Fan Relay 2 |
| Wiper Relay |
| IGCT Scene Relay |
| Fuel Flap Relay |
| Main Fan Relay 1 |

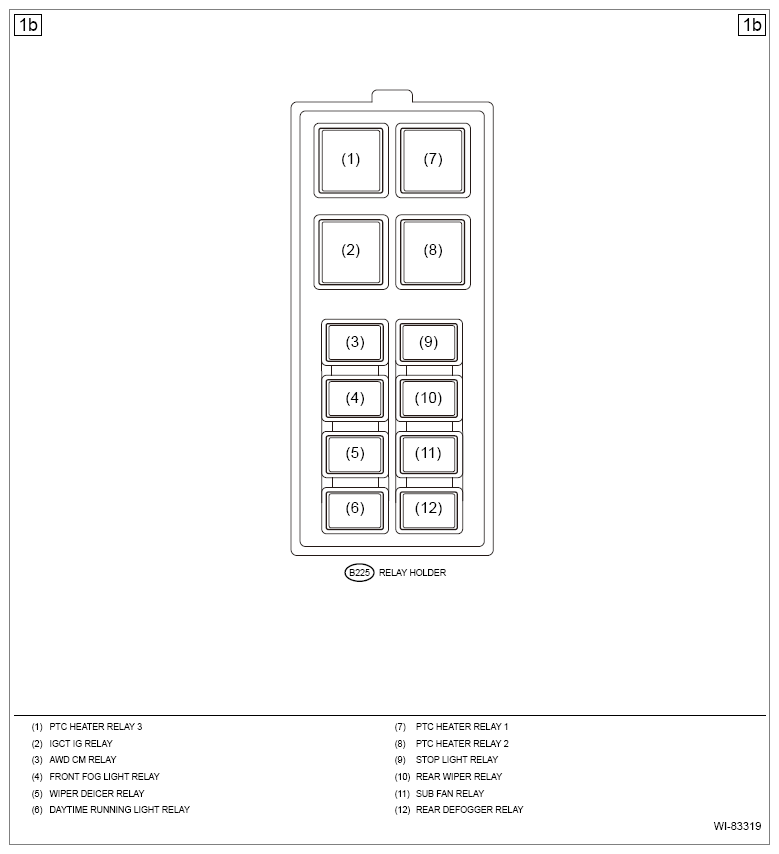

ENGINE COMPARTMENT RELAY IDENTIFICATION (2 OF 2)
| Relay Description |
|---|
| PTC Heater Relay 3 |
| IGCT IG Relay |
| AWD control module Relay |
| Front Fog Light Relay |
| Wiper Deicer Relay |
| Daytime Running Light Relay |
| PTC Heater Relay 1 |
| PTC Heater Relay 2 |
| Stop Light Relay |
| Rear Wiper Relay |
| Sub Fan Relay |
| Rear Defogger Relay |
