Front Disc Rotor: Removal

  1. Lift up the vehicle, and then remove the front wheels.

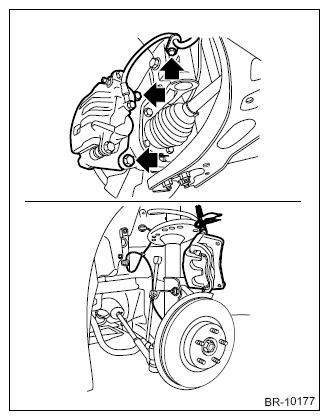

  2. Remove the disc brake assembly.
    1. Remove the brake hose bracket.
    2. Remove the mounting bolt, and remove the disc brake assembly.
    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly from the strut assembly.
    G11255178Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the disc rotor.

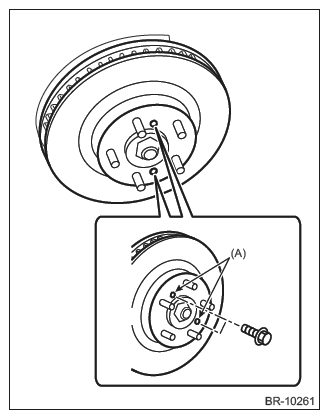

NOTE: When the disc rotor is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.
G11255179Courtesy of SUBARU OF AMERICA, INC.
