Front Bumper: Disassembly

  1. Remove the front view camera assembly. (Model with front view camera) Ref. to ENTERTAINMENT & MONITORING>CAMERA>REMOVAL .
  2. Remove the front grille assembly.
    1. Remove the screws on the back side.
    2. Release the claws, and remove the front grille assembly.
      • Impreza model
        G13606949Courtesy of SUBARU OF AMERICA, INC.

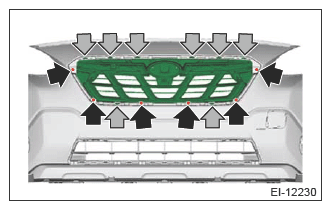

      • Crosstrek model
        G13939245Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly - fog or the light assembly - DRL. Ref. to LIGHTING SYSTEM>FRONT FOG LIGHT ASSEMBLY>REMOVAL .
  4. Remove the screws and release the claws, and then remove the cover - fog light.
    • Impreza model
      • Model without fog light/model with fog light
        G13606951Courtesy of SUBARU OF AMERICA, INC.
      • Model with DRL
      G13606952Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model
      • 2.5 except for SPORT ES

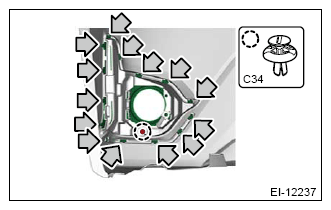

        G13939248Courtesy of SUBARU OF AMERICA, INC.
      • 2.5 SPORT ES

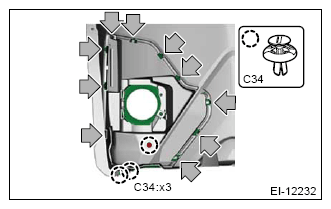

        G13939249Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips, and remove the sealing bumper - front and the plate UPR - front.
    G12399198Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the clips, and remove the energy absorber LWR - front.
    • Impreza model
      G13606955Courtesy of SUBARU OF AMERICA, INC.

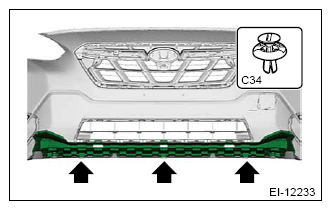

    • Crosstrek model
      G13939252Courtesy of SUBARU OF AMERICA, INC.
  7. Release the claws, and then remove the cover intake - front.
    • Impreza model
      G13606958Courtesy of SUBARU OF AMERICA, INC.

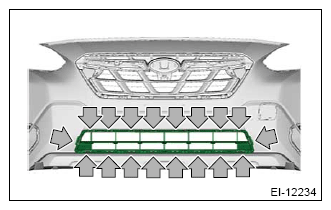

    • Crosstrek model
      G13939254Courtesy of SUBARU OF AMERICA, INC.

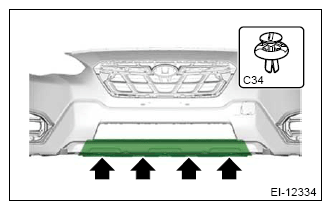

  8. Remove the clips, and remove the bumper guard front. (Hybrid model)
    G13939255Courtesy of SUBARU OF AMERICA, INC.
