center exhaust pipe (rear)

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

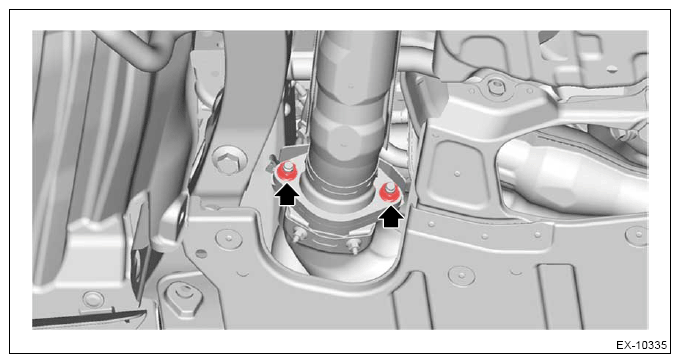

  1. Disconnect the center exhaust pipe (front) and the center exhaust pipe (rear).
    G13199067Courtesy of SUBARU OF AMERICA, INC.

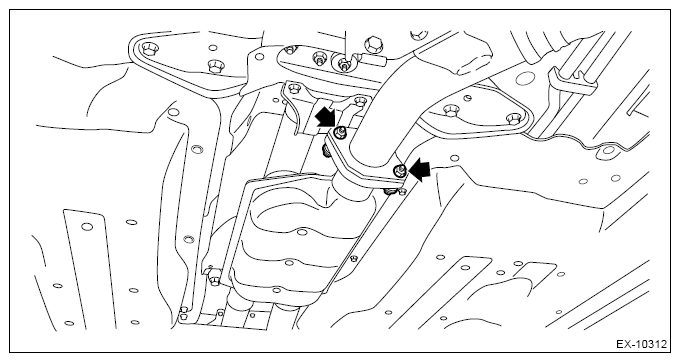

  2. Disconnect the center exhaust pipe (rear) and the rear exhaust pipe.
    NOTE: Suspend the rear exhaust pipe with rope etc.
    G13199068Courtesy of SUBARU OF AMERICA, INC.

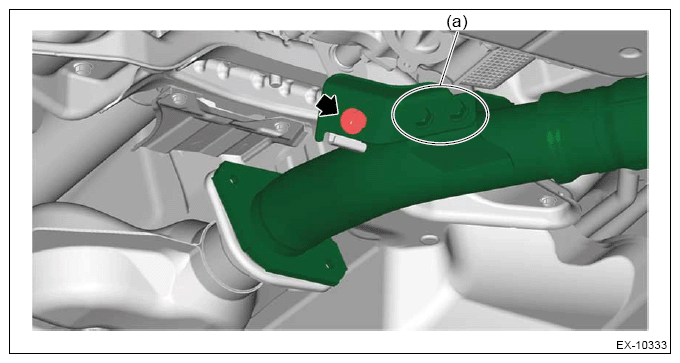

  3. Remove the bolt which holds center exhaust pipe (rear) to the hanger bracket, and remove the center exhaust pipe (rear).
CAUTION: Removing the exhaust pipe bracket from the center exhaust pipe (rear) will adversely affect the positioning accuracy. Therefore, do not remove the bolts in section (a).
G13199069Courtesy of SUBARU OF AMERICA, INC.
