Air Cleaner Element: Removal

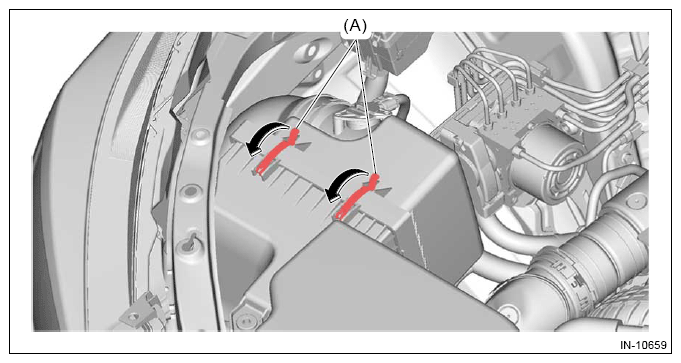

  1. Release the clip (A) lock.
    G13862346Courtesy of SUBARU OF AMERICA, INC.
  2. Lift the air cleaner case (rear), and disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).
    G13862347Courtesy of SUBARU OF AMERICA, INC.

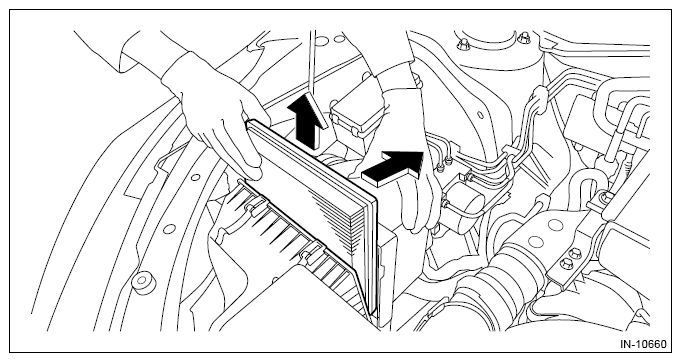

  3. Remove the air cleaner element while pulling the air cleaner case (rear) as shown in the figure.
G13862348Courtesy of SUBARU OF AMERICA, INC.
