Engine Intake System (Induction) And Turbocharger: Turbocharger: Disassembly

CAUTION:

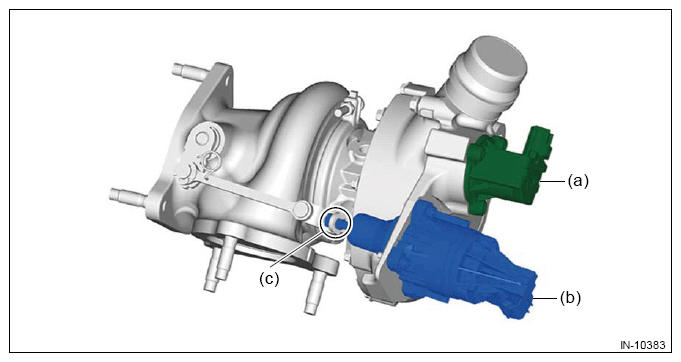

• The electronic control air by-pass valve (a) and the electronic control waste gate valve (b) are non-disassembled parts, so do not remove them  .

• Do not adjust the actuator rod nut (c)  .

Courtesy of SUBARU OF AMERICA, INC.

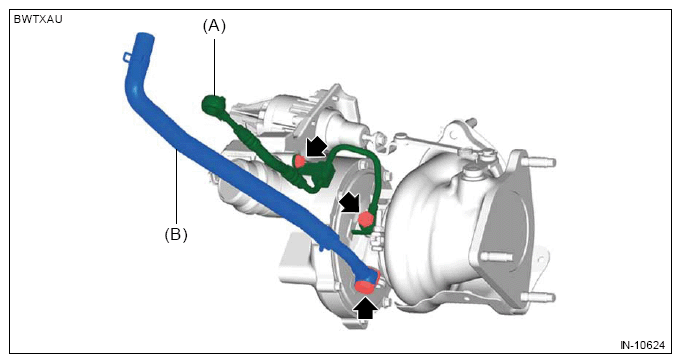

1. Remove the oil pipe (A) and water pipe (B).

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the water pipe.

   Courtesy of SUBARU OF AMERICA, INC.

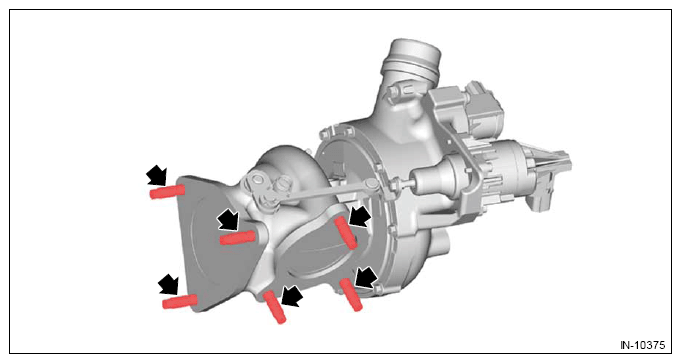

3. Remove the stud bolt using TORX® socket E10.

Courtesy of SUBARU OF AMERICA, INC.
