Engine Intake System (Induction) And Turbocharger: Turbocharger: Assembly

1. Install the stud bolt using TORX® socket E10.

   Tightening torque:

   14.7 N.m (1.5 kgf-m, 10.8 ft-lb)

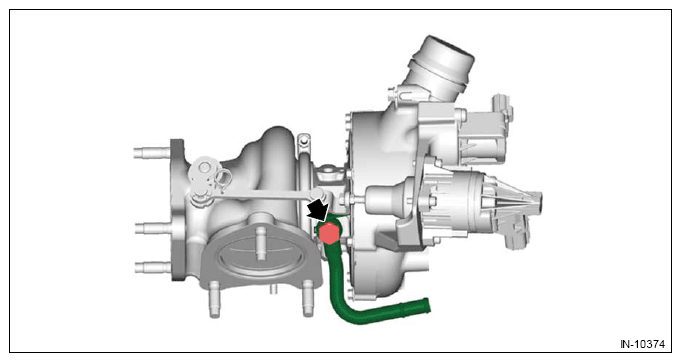

2. Install the water pipe using a new gasket.

   Tightening torque:

   32 N.m (3.3 kgf-m, 23.6 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

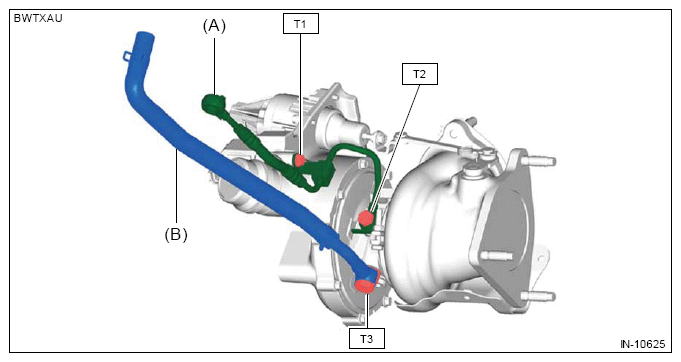

3. Install the oil pipe (A) and water pipe (B) using new gaskets.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T3: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

Fig 1: Oil Pipe And Water Pipe Bolts Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.
