Oil Catch Tank: Disassembly

  1. Remove the PCV hose assembly No. 2. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Hose Assembly>REPLACEMENT>PCV HOSE ASSEMBLY NO. 2 .

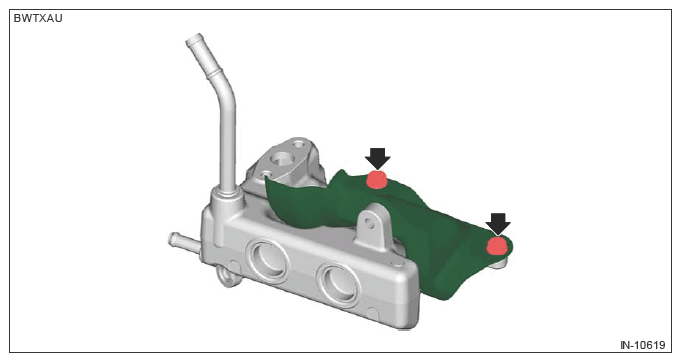

  2. Remove the exhaust cover from the oil catch tank.
G13620025Courtesy of SUBARU OF AMERICA, INC.
