Intake Duct No. 1

Connect the water hose to the intake duct No. 1.

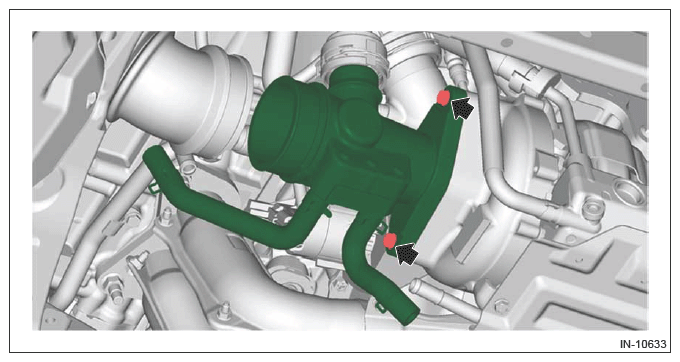

Install the intake duct No. 1 using new O-rings and gaskets.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

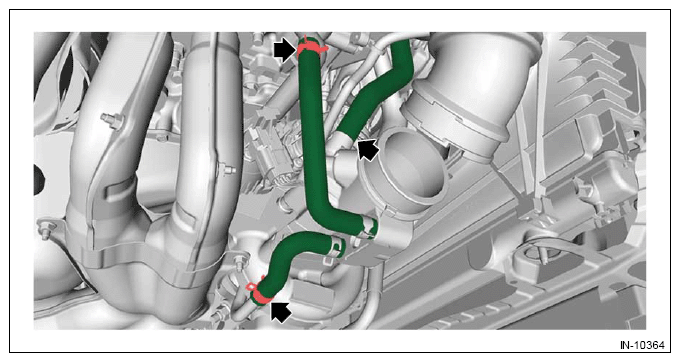

Connect the vacuum hose and the water hose.

Courtesy of SUBARU OF AMERICA, INC.

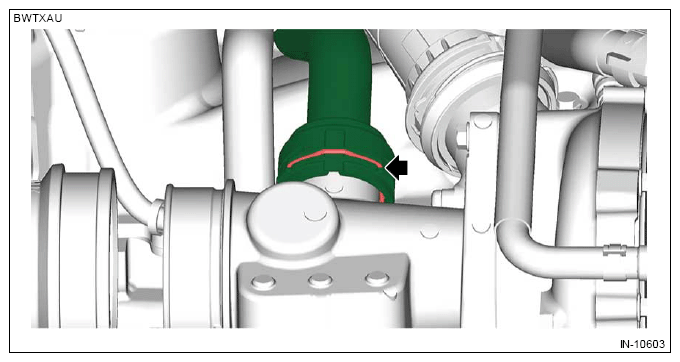

Connect the PCV pipe assembly to the intake duct No. 1 with a new O-ring and lock it.
CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe .
- Confirm that the connections are secure .
NOTE: It is possible to install with the spring locked.

Courtesy of SUBARU OF AMERICA, INC.
Connect the air intake boot to the intake duct No. 1.
NOTE: Align the protrusion with the cutout portion.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
