Turbocharger And Oil Catch Tank

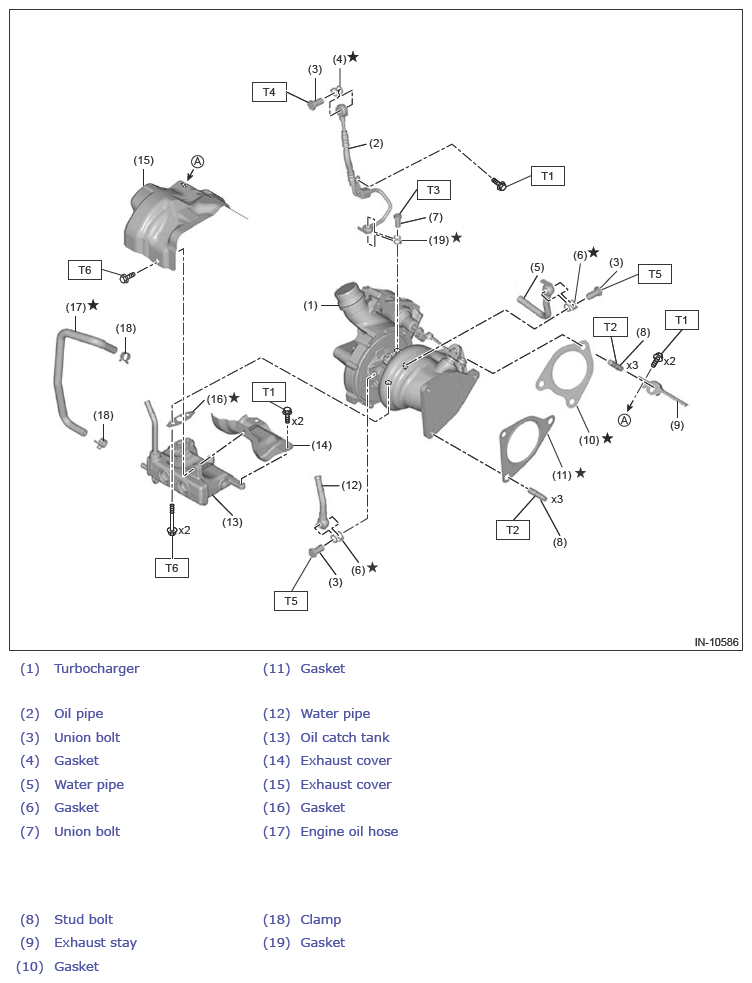

Fig 1: Exploded View Of Turbocharger And Oil Catch Tank Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14.7 (1.5, 10.8)

T3: 16 (1.6, 11.8)

T4: 24 (2.4, 17.7)

T5: 32 (3.3, 23.6)

T6:  Ref. to INTAKE (INDUCTION) (H4DOTC)>Oil Catch Tank>INSTALLATION .
