Air Intake Duct: Removal

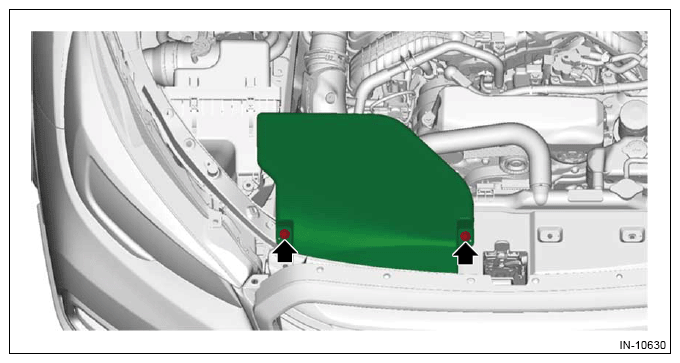

Remove the clips and remove the air intake duct.

G13862350

Courtesy of SUBARU OF AMERICA, INC.
