Roll Connector: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Position the front wheels straight ahead.
  2. Turn the ignition switch to OFF.
  3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Driver's Airbag Module>REMOVAL .
  5. Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>REMOVAL .
  6. Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>REMOVAL .
  7. Remove the steering roll connector.
    CAUTION: Make sure that the steering roll connector is not turned from the original position.

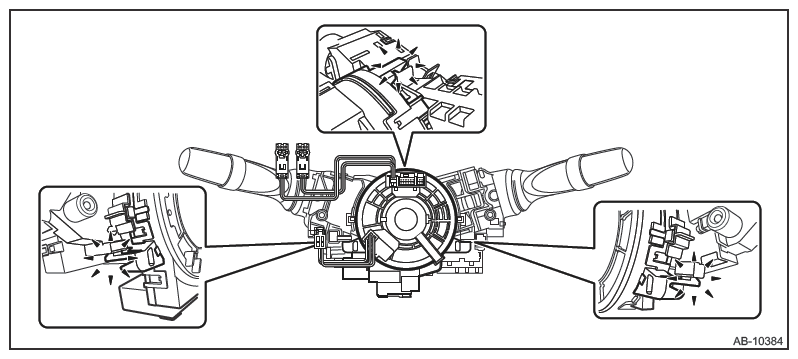

    1. Disconnect the connector under the steering roll connector.
    2. Release the claws and remove the steering roll connector.
      G11255151Courtesy of SUBARU OF AMERICA, INC.

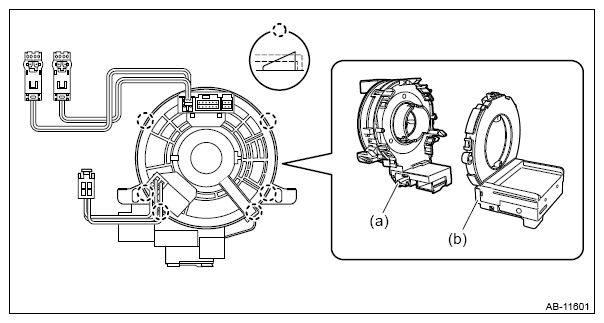

    3. Release the claws and separate the steering roll connector (a) and sensor assembly VDC steering (b).
G13863540Courtesy of SUBARU OF AMERICA, INC.
