Front Brake Pulsation/Squeal Diagnosis & Repair Front Brake Warranty Extension (06-92-24R)

FRONT BRAKE PULSATION/SQUEAL DIAGNOSIS & REPAIR FRONT BRAKE WARRANTY EXTENSION

SERVICE CAMPAIGN BULLETIN

APPLICABILITY

2019-24MY Ascent

INTRODUCTION

In the interest of customer satisfaction, Subaru of America, Inc. (SOA) is extending the New Car Limited Warranty coverage for the front brake on 2019-24 model year Ascent models to 8 years (96 months) or 150,000 miles (whichever comes first) to address cases of front brake pulsation or squealing.

In addition, this bulletin announces availability of a new diagnosis/repair procedure developed to address concerns of a squeal type sound occurring when applying the brakes. An additional tie bar component has been developed to provide added rigidity and reduce noise/vibration. The number of brake disc cooling fins has increased from 41 to 47. If a squeal type sound and/or pulsation from the front brakes is reported by the customer, follow the service procedures outlined in this bulletin.

PRODUCTION CHANGE INFORMATION

The new brake components have been incorporated into vehicle production as per starting VIN R3417029  .

PART INFORMATION

Part Description	Part Number	Quantity	Details
FRONT BRAKE DISC	26300XC01A	2
TIE BAR	26261XC000	2
MOUNTING BOLT	26208XC000	4

26296XC02A Pad Kit Breakdown
Part Description	Part Number	Quantity	Details
PAD COMPLETE	N/A	1 Kit (4 Pads)
Grease (Kluber)	N/A	1

IMPORTANT NOTES:

DO NOT  install both old and new type parts on the same vehicle. These new components MUST  be replaced in pairs.

In cases where a vehicle has been previously equipped with a tie bar, the original tie bar is to be reused.

In cases where a vehicle is not equipped with tie bars, it is CRITICAL to use the new bolts (p.n. 26208XC000)  in conjunction with the tie bars (p.n. 26261XC000).

SERVICE PROCEDURE/INFORMATION

The following service procedure has been outlined in an instructional video along with a post test for additional Technician reference.

Front Brake Pulsation-Squeal Video

STEP 1:  Perform a road test and confirm a brake squeal and/or pulsation condition is present. Use the table below to confirm the next course of action.

Condition	Course of Action
Front Brake Squeal Only	Proceed to Step 3
Front Brake Pulsation Only	Proceed to Step 2
Both Front Brake Squeal & Front Brake Pulsation	Proceed to Step 3

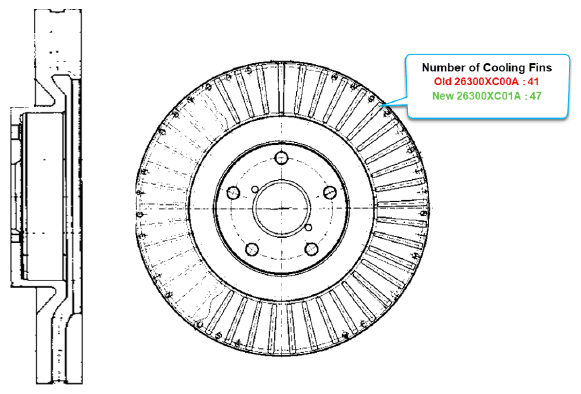

STEP 2:  Raise the vehicle using the lift manufacturer's specified procedures. Remove both front wheels. Inspect the brake disc part numbers to confirm the brake disc version currently installed on the vehicle. See the images below for part number location.

Is the vehicle currently equipped with the new brake discs?

YES:  Resurface the brake discs using a Subaru approved brake lathe. Perform a road test and confirm there is no front brake squeal/pulsation. Record and note the before and after brake thickness.

NO:  Proceed to Step 3.

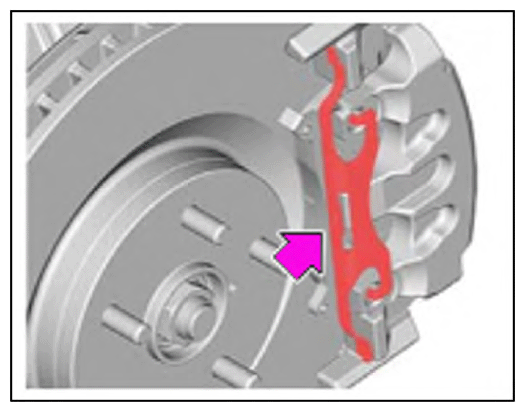

STEP 3:  Starting at the left front wheel, remove the pad clip.

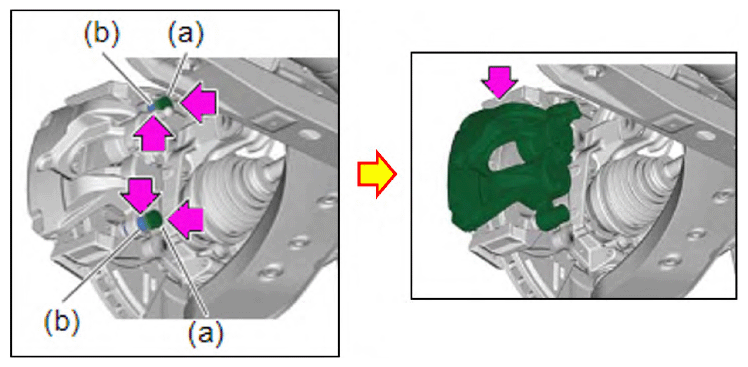

STEP 4:  Remove both dust caps (a). Using an 11 mm allen key, remove both guide pins (b). The caliper body can then be removed.

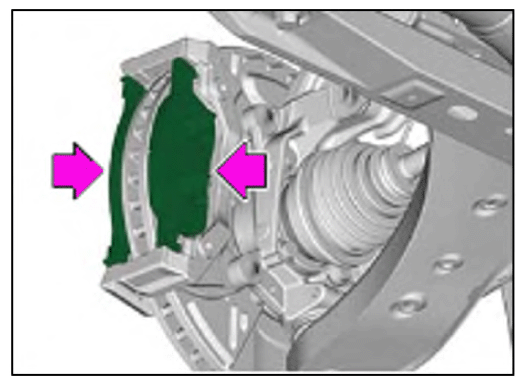

STEP 5:  Remove the inner and outer brake pad.

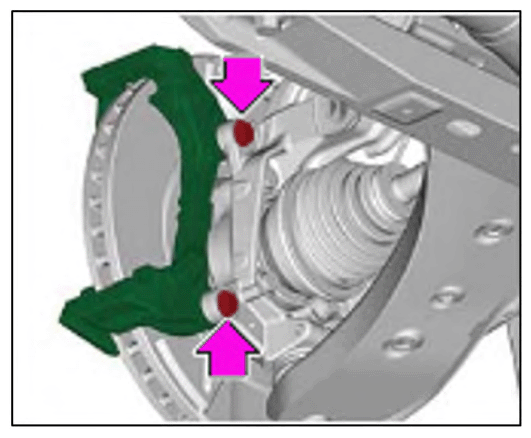

STEP 6:  Remove the caliper bracket mounting bolts and then remove the bracket. The mounting bolts removed during this Step MUST NEVER BE REUSED  during re-assembly. Discard the original mounting bolts. The front left brake disc can then be removed.

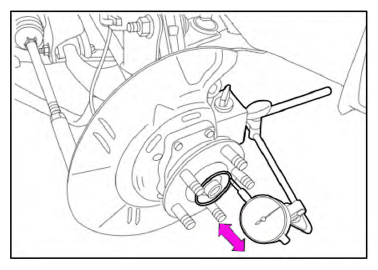

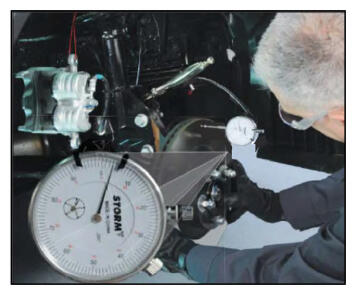

STEP 7  : Using a dial gauge, inspect for any excessive play in the axial direction of the front hub bearing. Confirm the observed measurement is below the service limit of 0.05mm (0.002 in). If the measurement exceeds the specified value, the front hub bearing will require replacement. Record and note all measurements.

Axial Measurement Video

STEP 8:  Install the new brake disc. Secure the disc to the hub using the five lug nuts in conjunction with matching suitable washers. Torque the lug nuts in a star pattern to 120 Nm (88.5ft-lb).  Using a dial gauge, inspect the outer brake disc runout. Confirm the observed measurement does not exceed 0.05 mm (0.002 inch). If the measurement exceeds the specified value, remove the brake disc from the hub. Using the wheel studs as a guide, rotate the disc clockwise one wheel stud position and reinstall the brake disc. Inspect the runout using the procedures described above. The brake disc position can be rotated up to 4 more times to confirm the position with the least amount of runout. Install the brake disc at this position. In rare cases of the measurement not reading within specification after the five position inspection, exchange the brake disc with the other side of the vehicle and repeat the measurement. If the measurement continues to produce results out of specifications, replace the brake disc. Record and note all measurements.

Lateral-Measurements Video

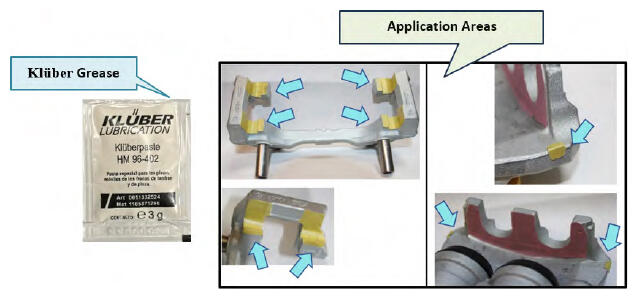

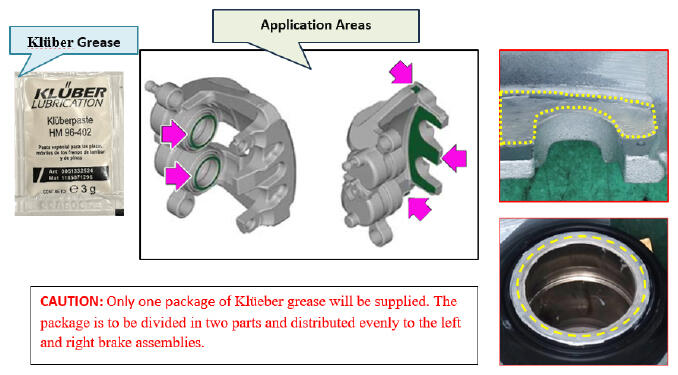

STEP 9:  Apply a thin layer of the Kluber  grease to the caliper bracket in the locations outlined in yellow specified below.

Kluber Grease Video

STEP 10:  Apply a thin layer of the Kluber  grease to the caliper in the sections specified below.

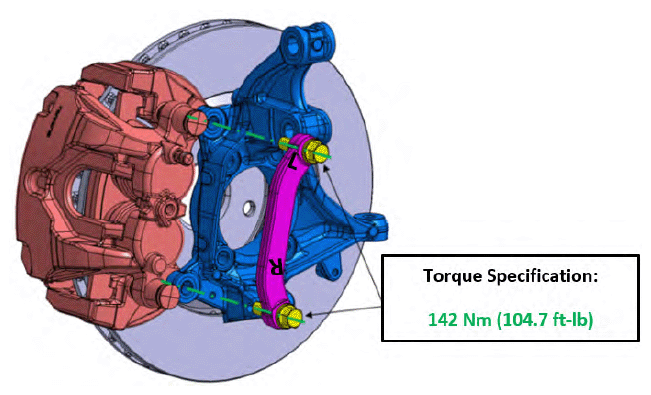

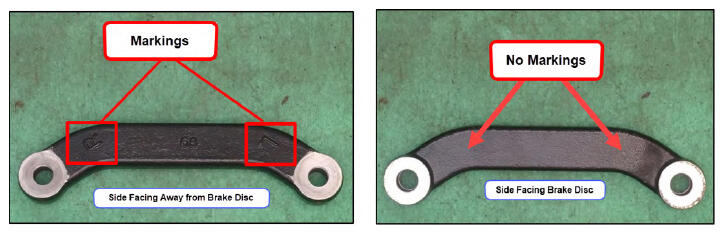

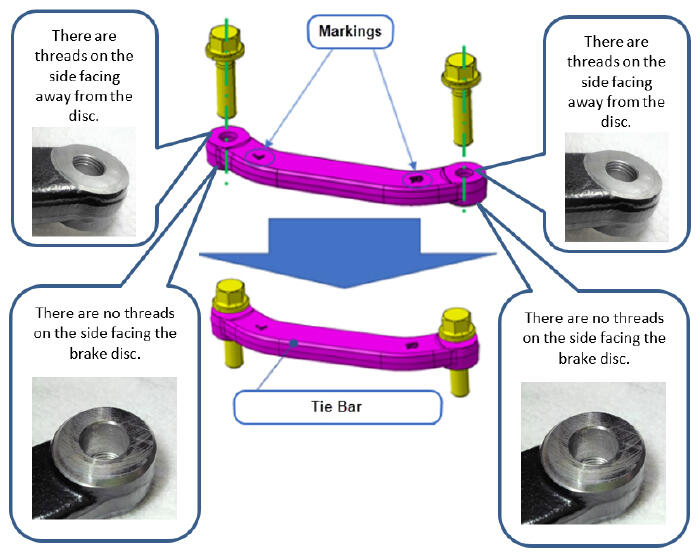

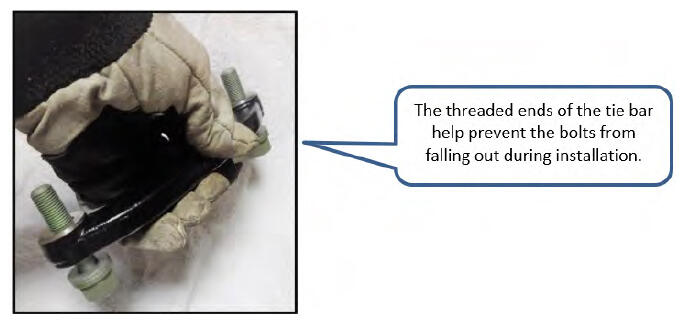

STEP 11:  Pre-assemble the new mounting bolts and the new tie bar as shown below.

STEP 12:  Reassemble the left front brake caliper bracket, caliper, and pads along with the tie bar and mounting bolts. Torque the mounting bolts to 142 Nm (104.7 ft-lb).

STEP 13:  Repeat Steps 3-12 on the right front side of the vehicle.

STEP 14:  Reinstall the left and right front wheels and torque to 120 Nm (88.5ft-lb).

TORQUE SPECIFICATION REFERENCE

Torque Specifications
Support Front Disc Brake	142Nm (14.5kgf-m, 104.7 ft-lb)
Caliper Body	55Nm (5.6kgf-m, 40.6 ft-lb)
Brake Hose Front	26Nm (2.7kgf-m, 19.2 ft-lb)
Bleeder Screw	17Nm (1.7kgf-m, 12.5 ft-lb)
Front Wheel	120Nm (12.2kgf-m, 88.5 ft-lb)

DETAILS OF WARRANTY EXTENSION

• The Warranty Extension will end once all of the new parts (brake pads, rotors, and tie bars) have been installed.
• Effective from the date of customer notification, ALL affected vehicles, regardless of mileage and Warranty start date will be covered for these repairs for a period of one year.
• All inspections and repairs must be completed prior to expiration of this Warranty Extension.
• Subaru is reimbursing customers who previously paid a Subaru retailer for repair and/or replacement related to this Warranty Extension due to conditions which would normally have been covered if the vehicle was still under the terms of the New Vehicle Limited Warranty. The period of the reimbursement shall be one year from the customer/dealer notification of the Warranty Extension.

WARRANTY/CLAIM INFORMATION

For vehicles within the Warranty Extension and Basic New Car Limited Warranty period, this repair may be submitted using the following claim information:

Vehicles WITHOUT Any Updated Parts Previously Installed
Labor Description	Labor Operation #	Labor Time	Fail Code
BOTH FRONT ROTOR R&R AND TIE BAR INSTALL. (Includes brake pad R&R.)	A511-086	1.0	QDZ-10
BOTH FRONT ROTORS R&R AND MEASURE RUNOUT 5 POSITIONS (ONE SIDE) Includes brake pad R&R.	A511-286	1.1
BOTH ROTORS R&R AND MEASURE RUNOUT 5 POSITIONS (BOTH SIDES) Includes brake pad R&R.	A511-386	1.2

Vehicles Previously Equipped WITH Updated Brake Rotors &Tie Bars
Labor Description	Labor Operation #	Labor Time	Fail Code
FRONT BRAKE PAD SET R&R	A510-086	0.5	QDZ-10
BOTH FRONT BRAKE ROTORS RESURFACE ON VEHICLE (Includes brake pad R&R.)	A510-486	1.0
BOTH FRONT BRAKE ROTORS REPLACE (Includes brake pad R&R.)	A510-586	1.0
BOTH FRONT ROTORS R&R AND MEASURE RUNOUT 5 POSITIONS (ONE SIDE) Includes brake pad R&R.	A510-686	1.1
BOTH ROTORS R&R AND MEASURE RUNOUT 5 POSITIONS (BOTH SIDES) Includes brake pad R&R.	A510-786	1.2

IMPORTANT REMINDERS:

• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.
