Reverse Assist Braking System: Wiring Diagram

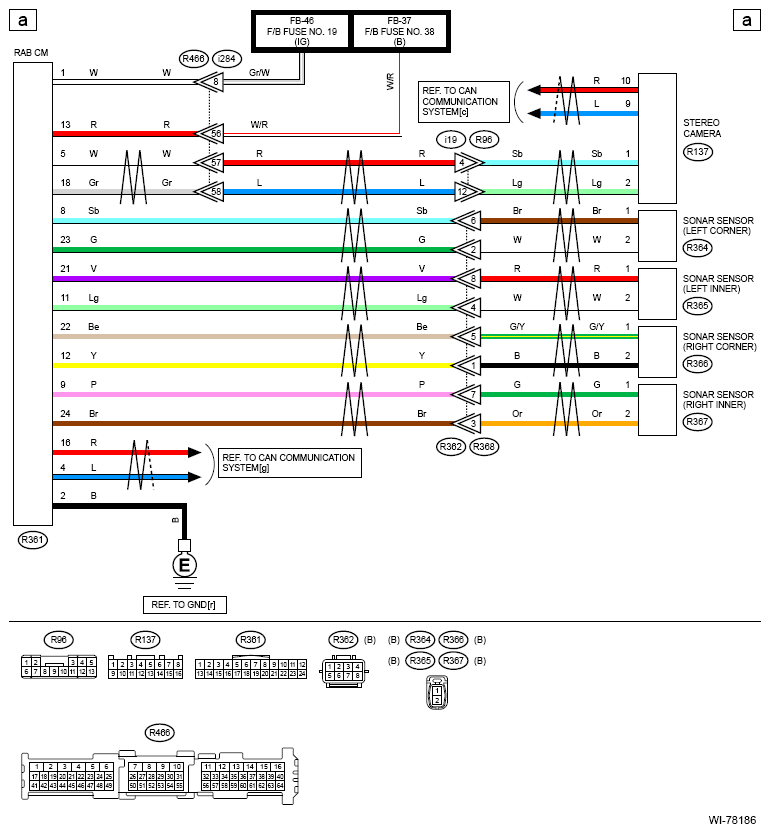

G13866074Courtesy of SUBARU OF AMERICA, INC.

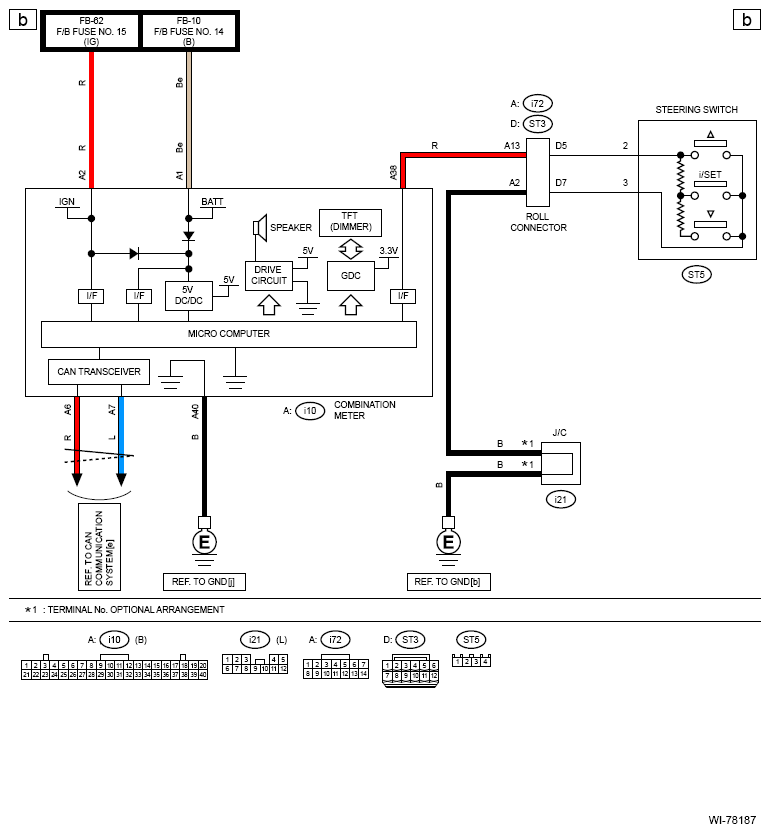

G13866075Courtesy of SUBARU OF AMERICA, INC.
