Power Rear Gate System: Wiring Diagram

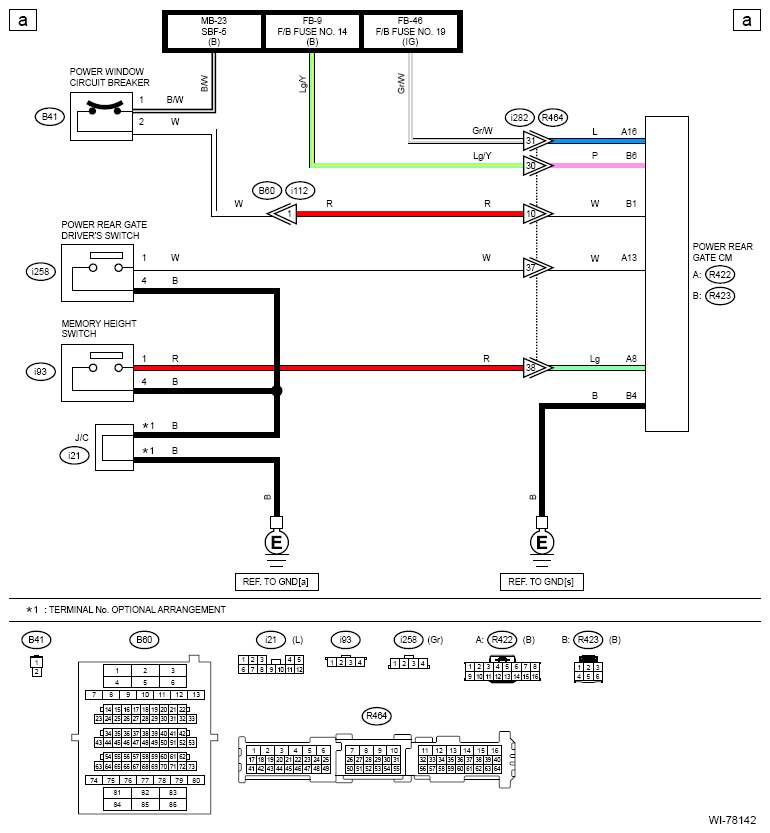

G13866025

Courtesy of SUBARU OF AMERICA, INC.

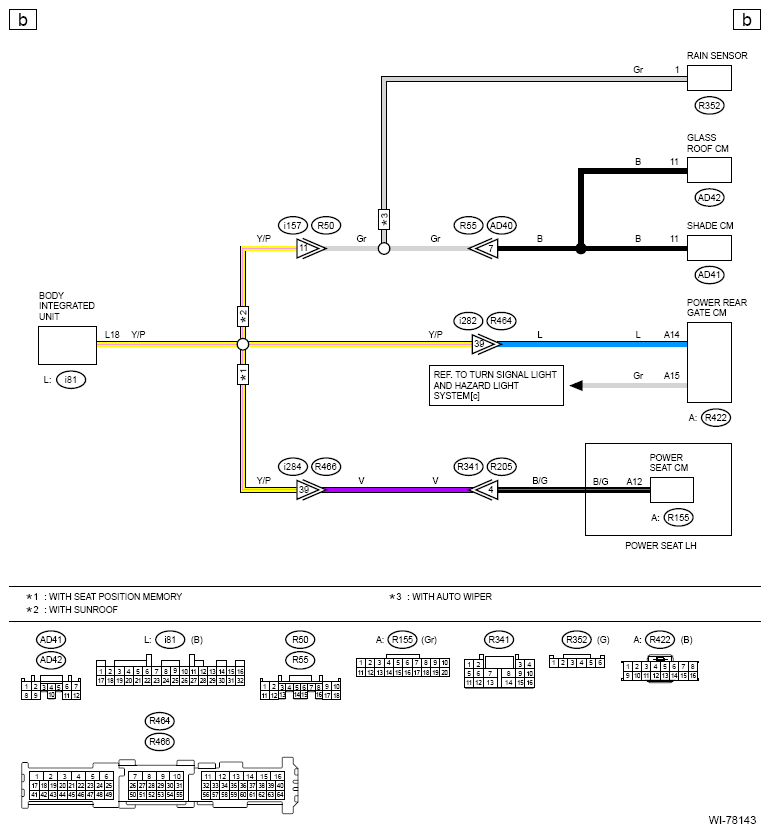

G13866026

Courtesy of SUBARU OF AMERICA, INC.

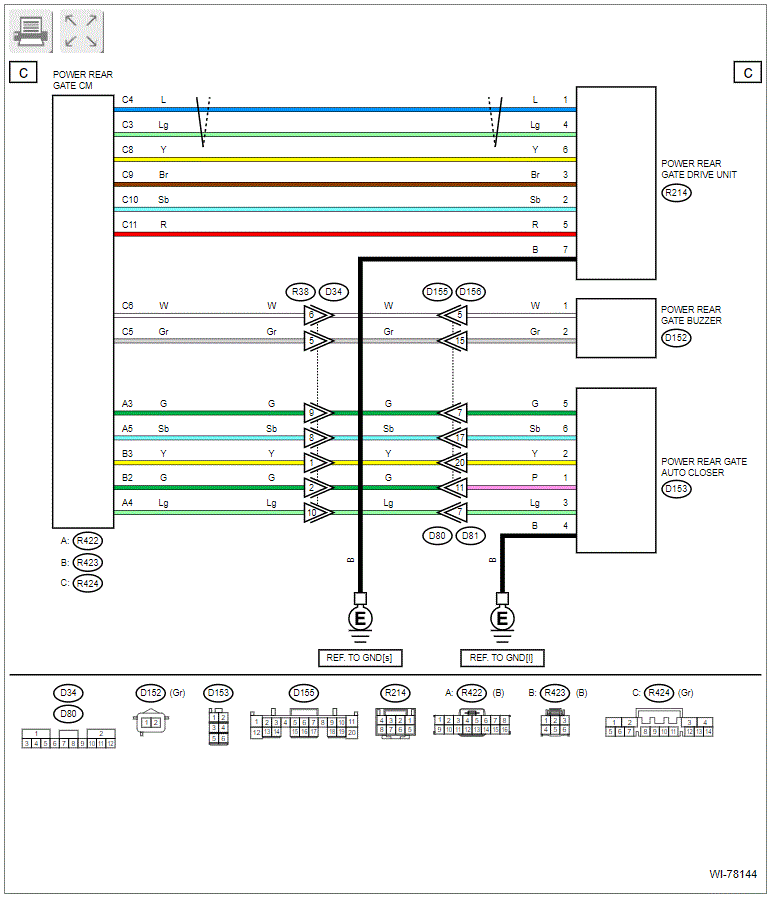

G13866027

Courtesy of SUBARU OF AMERICA, INC.

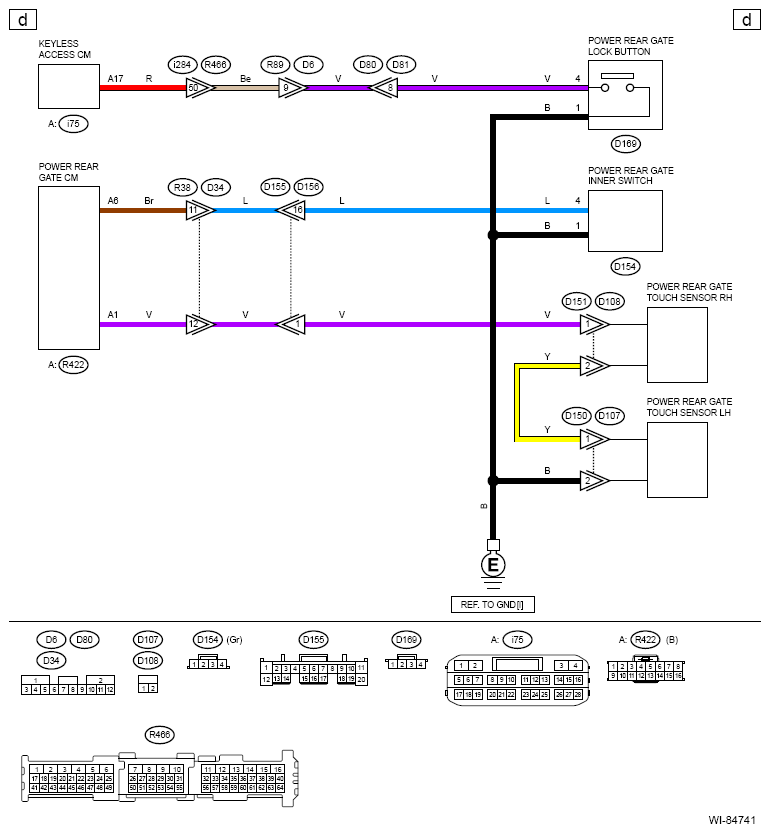

G13866028

Courtesy of SUBARU OF AMERICA, INC.
