EyeSight System: Wiring Diagram

G13865928Courtesy of SUBARU OF AMERICA, INC.

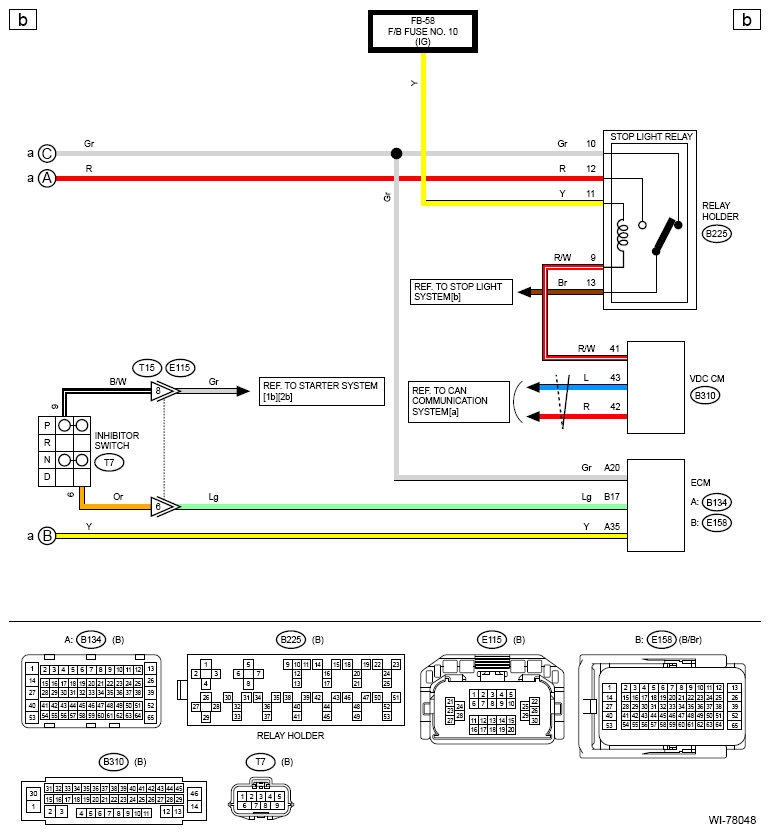

G13865929Courtesy of SUBARU OF AMERICA, INC.

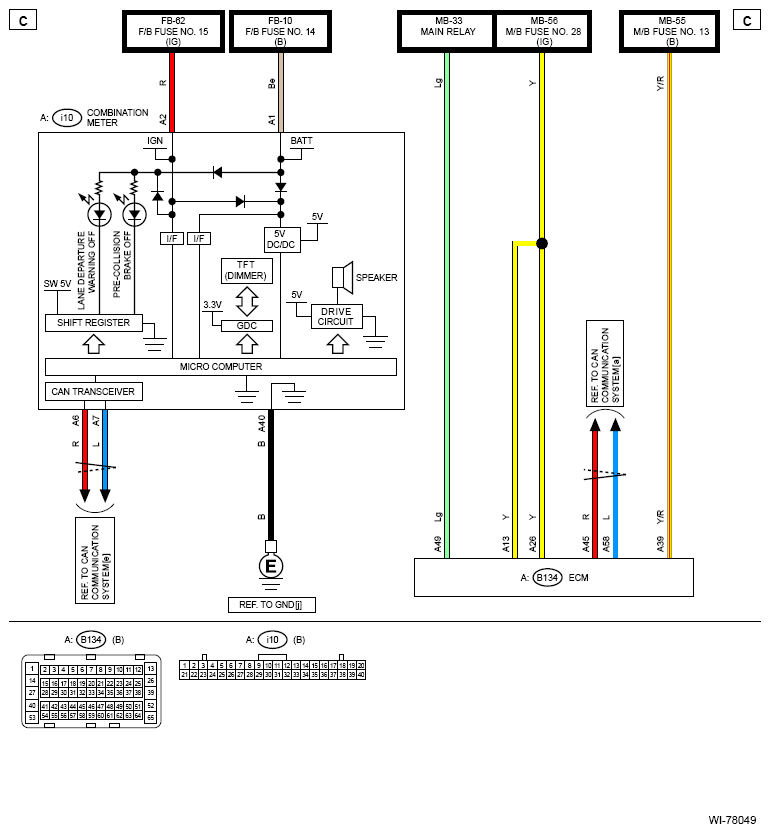

G13865930Courtesy of SUBARU OF AMERICA, INC.

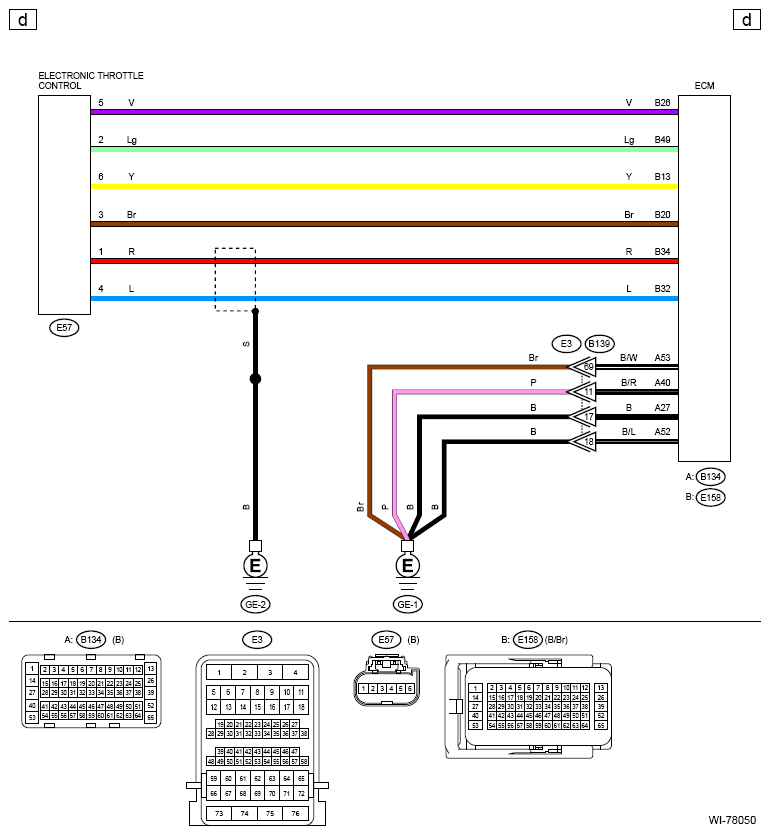

G13865931Courtesy of SUBARU OF AMERICA, INC.

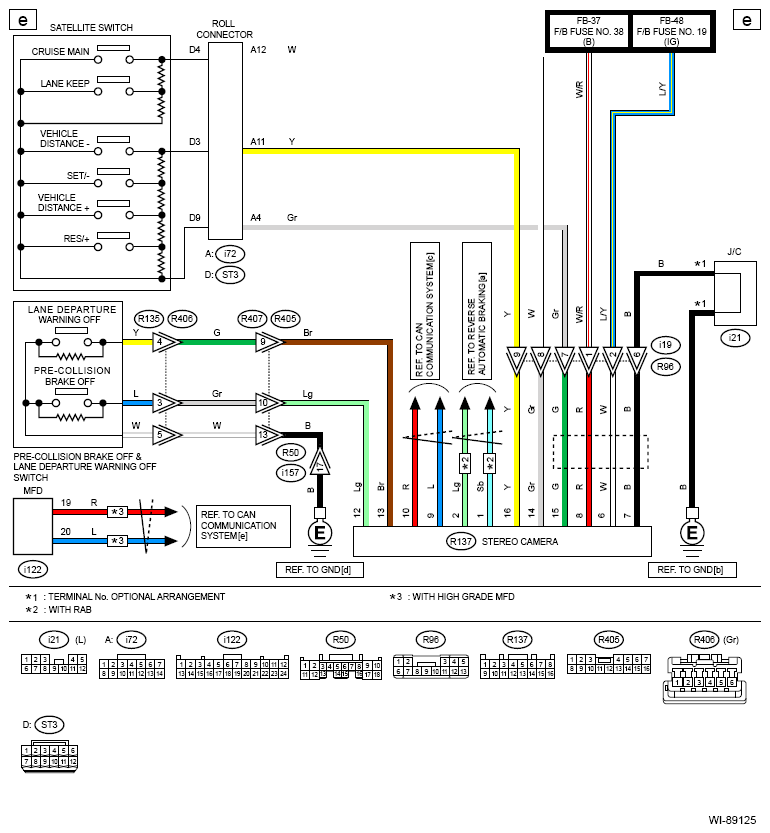

G13865932Courtesy of SUBARU OF AMERICA, INC.

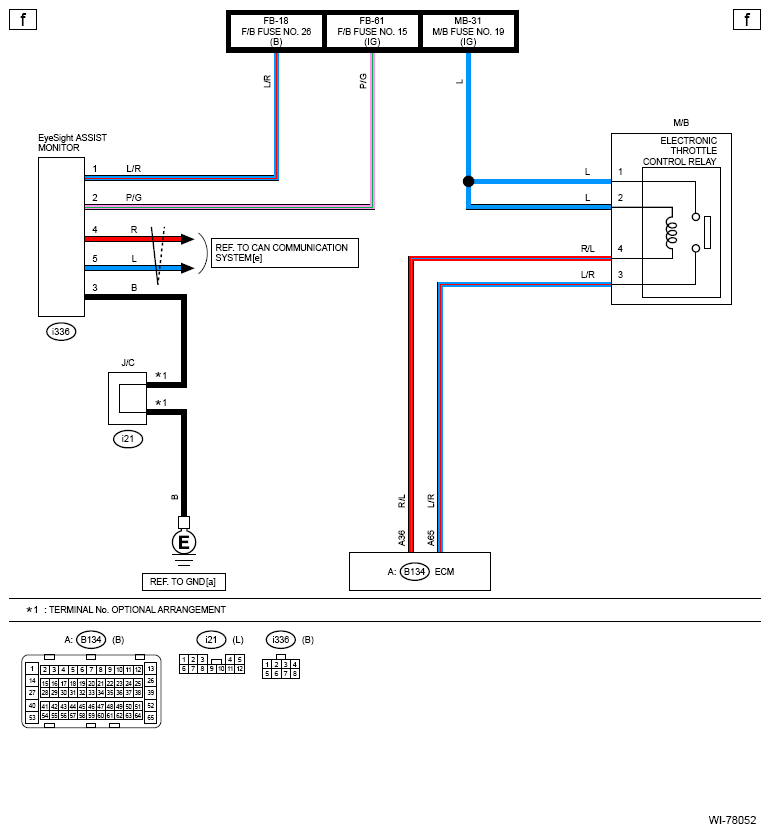

G13865933Courtesy of SUBARU OF AMERICA, INC.
