Airbag System: Wiring Diagram

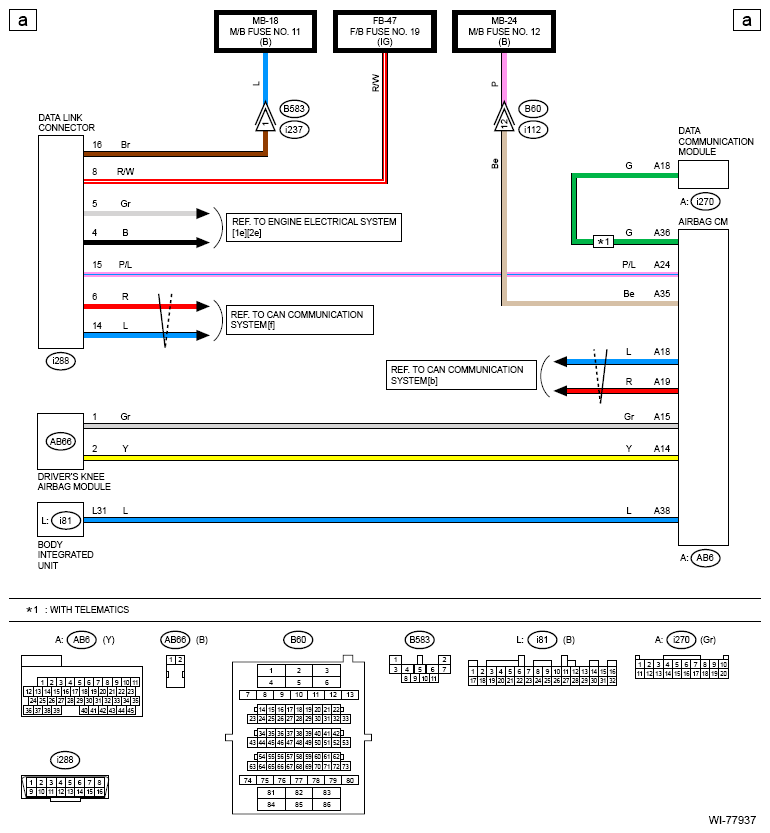

G13865818Courtesy of SUBARU OF AMERICA, INC.

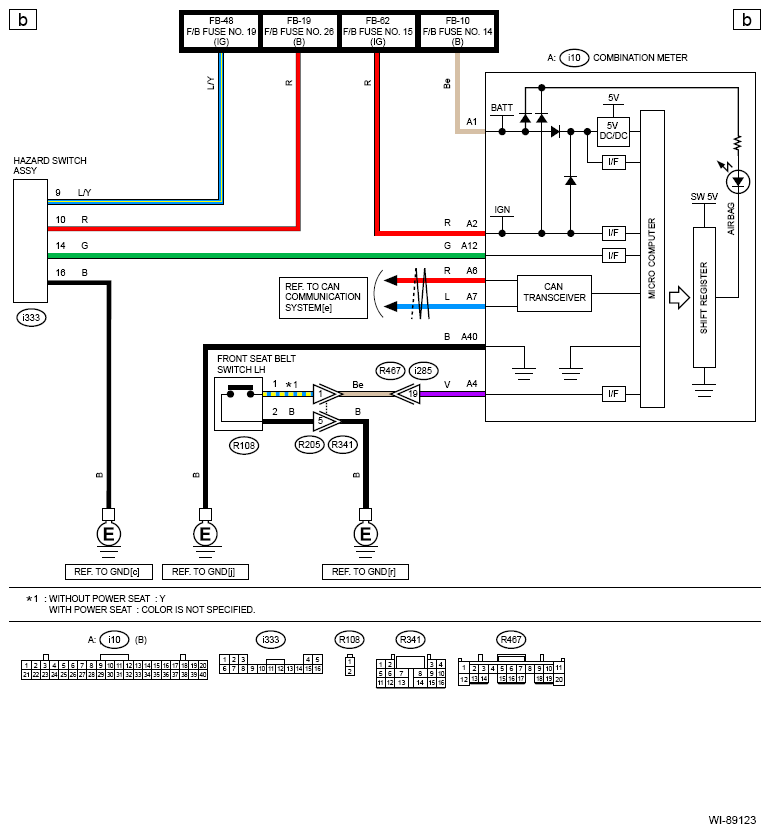

G13865819Courtesy of SUBARU OF AMERICA, INC.

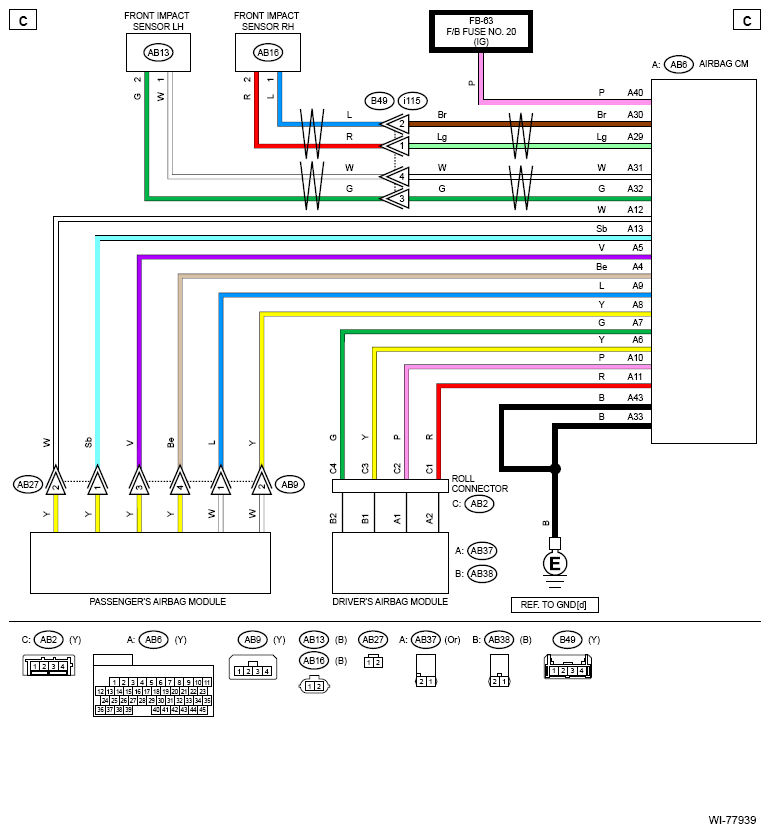

G13865820Courtesy of SUBARU OF AMERICA, INC.

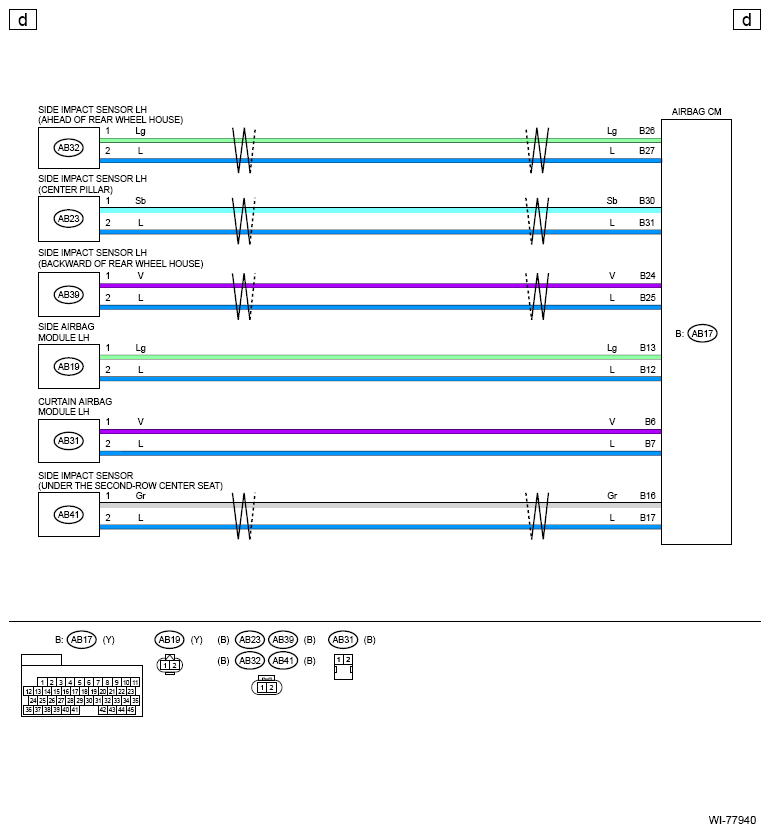

G13865821Courtesy of SUBARU OF AMERICA, INC.

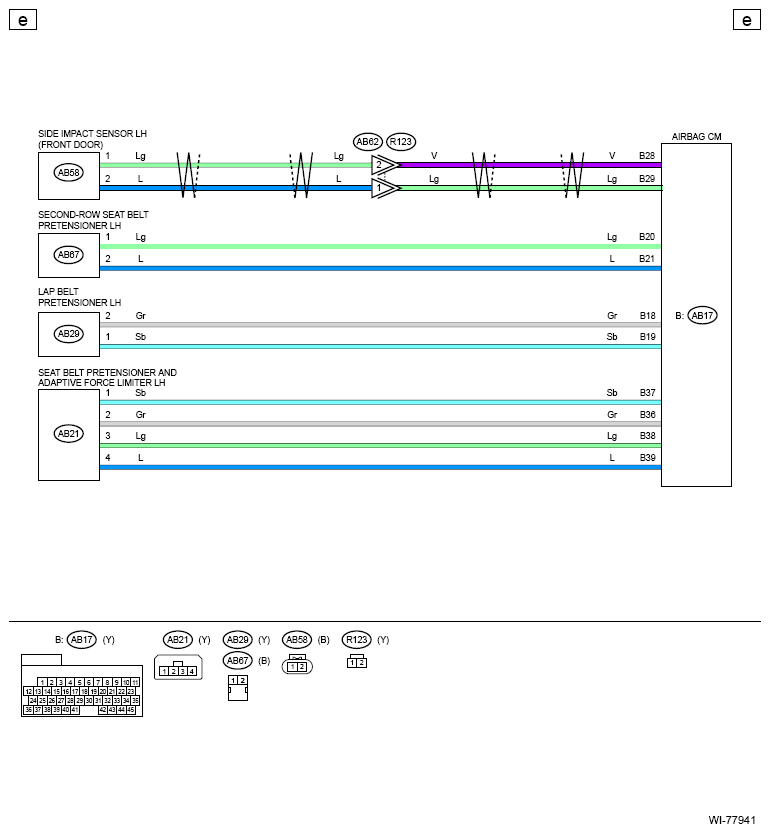

G13865822Courtesy of SUBARU OF AMERICA, INC.

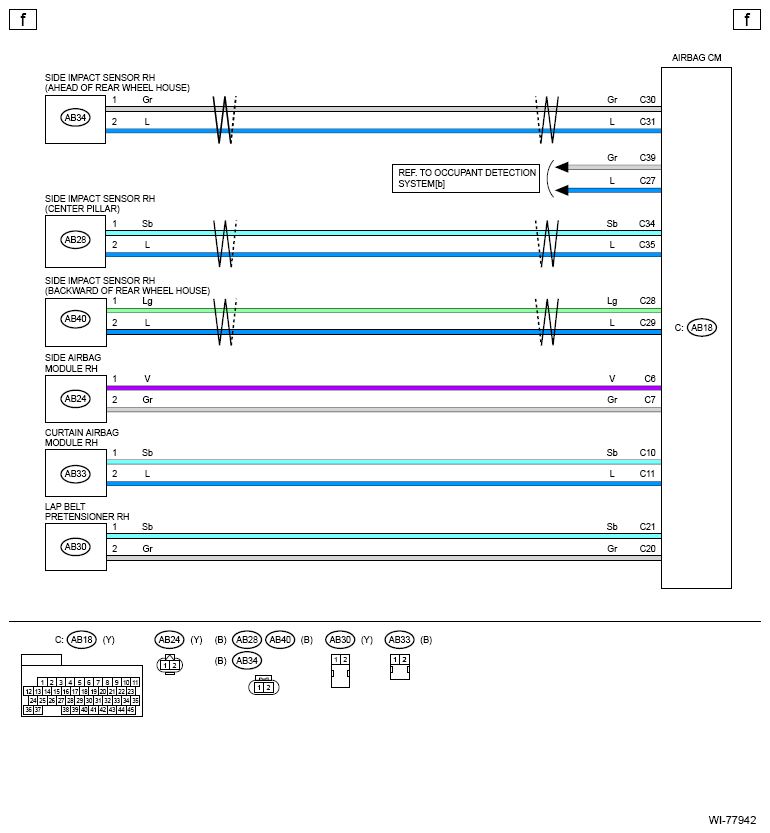

G13865823Courtesy of SUBARU OF AMERICA, INC.

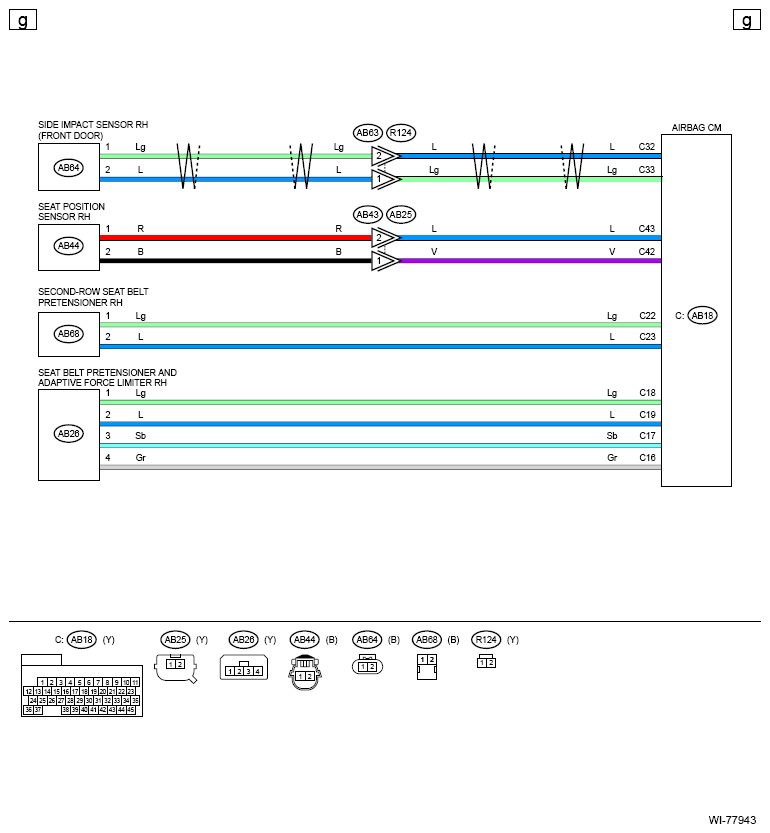

G13865824Courtesy of SUBARU OF AMERICA, INC.
