Bumper Face

  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct.
    G13201438Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bumper face front.
    1. Remove the relay holder and move it in the direction of arrow. (Model with front view monitor camera)

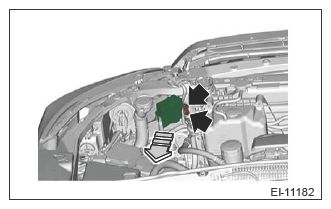

      G13201542Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the connector holder. (Model with front view monitor camera)
      CAUTION: Do not pull with excessive force. The claws of connector holder may be damaged  .

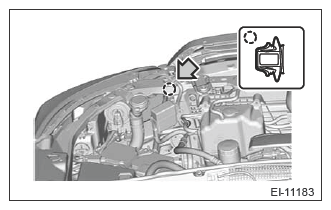

      G13201543Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the clip.

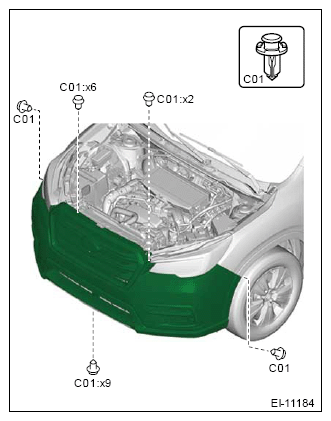

      G13201544Courtesy of SUBARU OF AMERICA, INC.
    4. While pushing up the lower side (a) of the bumper face front, release the engagement in order from (b) to (j).
      CAUTION: Do not pull forcibly. It may damage the flange section on the bumper face front side when it comes off from the claws of the bracket side front and bracket corner front  .

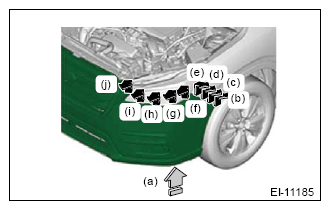

      G13201545Courtesy of SUBARU OF AMERICA, INC.
    5. Disconnect the fog light assembly connector. (Model with fog light)
      NOTE: Detach the opposite side in the same manner.
    6. Remove the bumper face front while pulling up the center part of the bumper.

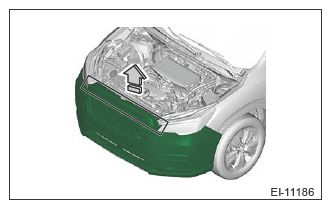

G13201546Courtesy of SUBARU OF AMERICA, INC.
