Related Lines, More Than 52 Ω And Less Than 62 Ω (Keyless Entry/TPMS)

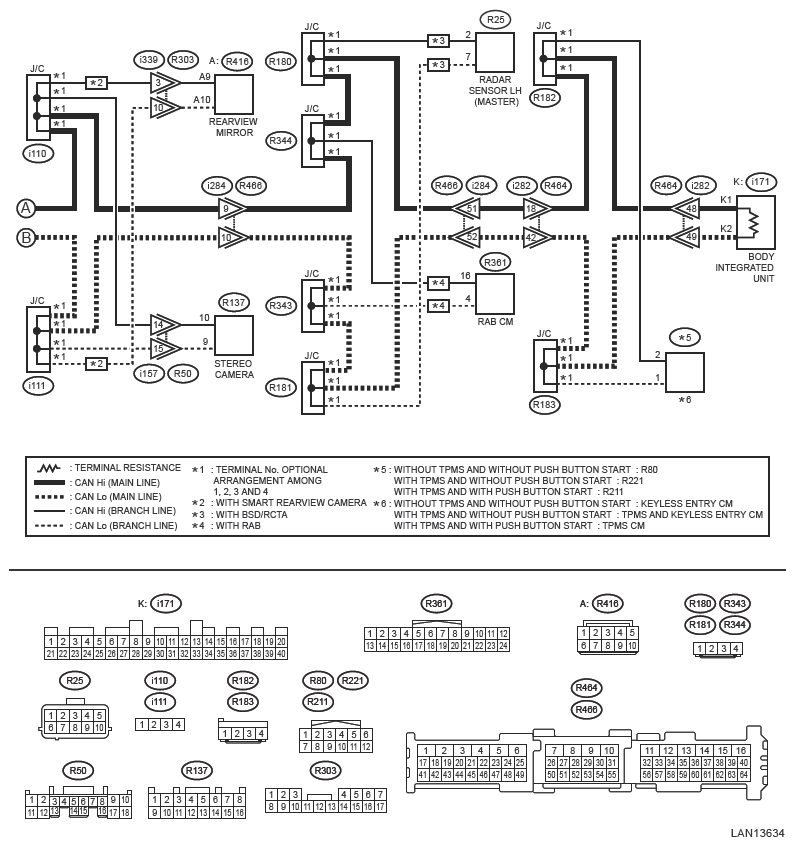

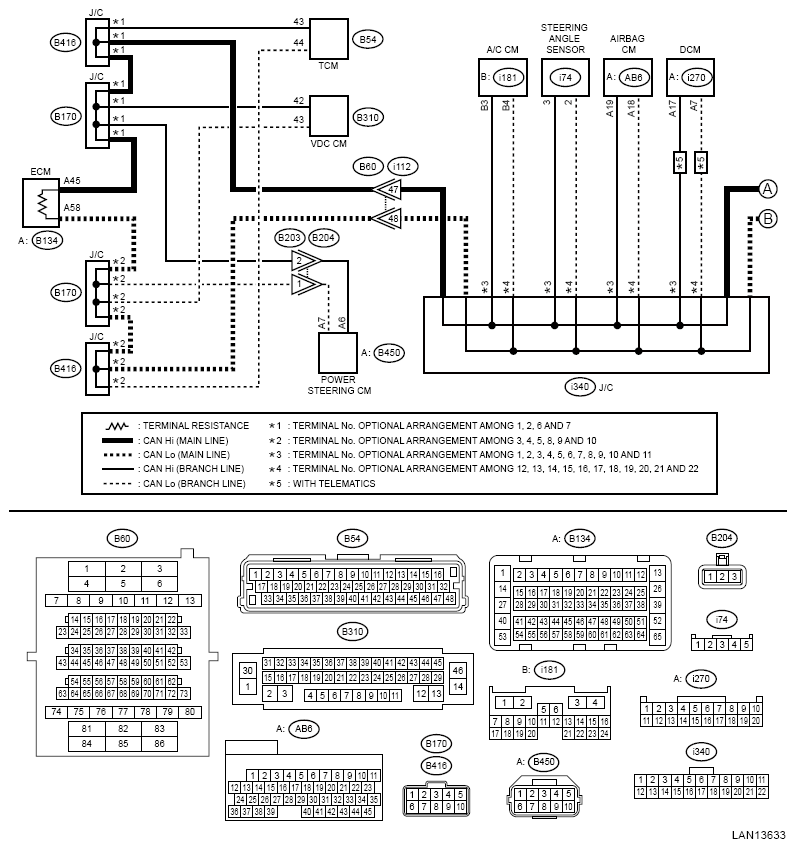

Wiring diagram:
CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS
.
- Disconnect the keyless entry control module, TPMS control module or keyless entry & TPMS control module connector.
- Using a tester, measure the resistance between keyless entry control module, TPMS control module or keyless entry & TPMS control module connector terminals.
Connector & terminal
Keyless entry control module
(R80) No. 2 - (R80) No. 1:
TPMS control module
(R211) No. 2 - (R211) No. 1:
Keyless entry & TPMS control module
(R221) No. 2 - (R221) No. 1:
Is the resistance 400 Ω or more?
Yes : Related line between keyless entry control module, TPMS control module or keyless entry & TPMS control module and main wiring harness is open, or main wiring harness is open at two places or more.
No : Go to 2.
- CHECK RELATED LINES
.
- Disconnect the steering angle sensor connector.
- Using a tester, measure the resistance between keyless entry control module, TPMS control module or keyless entry & TPMS control module connector and steering angle sensor connector.
Connector & terminal
Keyless entry control module
(R80) No. 2 - (i74) No. 3:
(R80) No. 1 - (i74) No. 2:
TPMS control module
(R211) No. 2 - (i74) No. 3:
(R211) No. 1 - (i74) No. 2:
Keyless entry & TPMS control module
(R221) No. 2 - (i74) No. 3:
(R221) No. 1 - (i74) No. 2:
Is the resistance 10 Ω or more?
Yes : Repair or replace the open circuit of keyless entry/TPMS related lines.
No : The communication harness is normal. Check DTC of keyless entry/TPMS. Ref. to KEYLESS ENTRY (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) . Ref. to TIRE PRESSURE MONITOR (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
