Parking Brake Harness

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle, and then remove the rear wheels.
  3. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank Protector>REMOVAL .
  4. Remove the adapter cord EPB.
    1. Disconnect the connector (a), and remove the clamp (b).
    2. Disconnect the connector (c), and remove the clamp (d).
    3. Remove the clamp (e).
    4. Remove the clamp (f).
    5. Remove the clamp (g).
    6. Remove the clamp (h).
    7. Disconnect the connector (i).

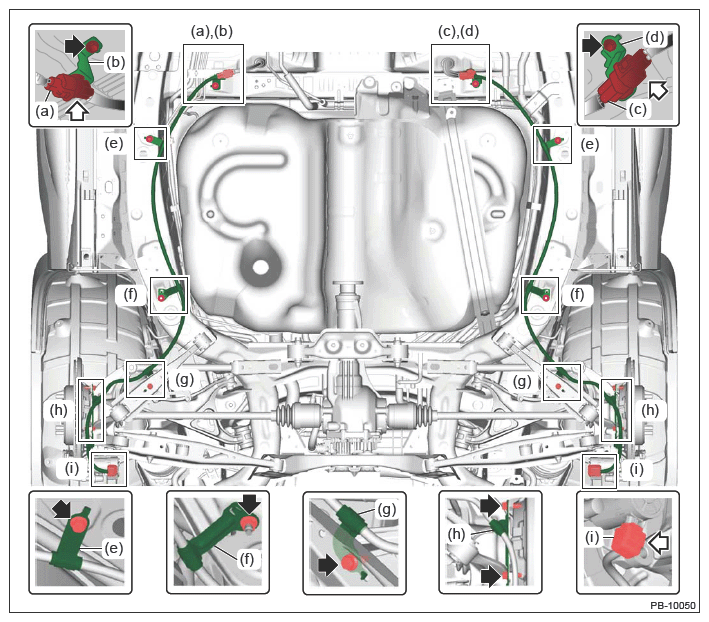

    G13199806Courtesy of SUBARU OF AMERICA, INC.
