Adjustment When VDC Warning Light And Eyesight Warning Light Is Illuminating

1. Release the steering wheel lock, tilt the steering column to the lowest end and fully retract the column by the telescopic system.
2. Affix the masking tape (a) to protect the steering wheel from damage, pass the measure (b) through the steering wheel and fix it to the vertical center position of the brake pedal.
   CAUTION: If the measure (b) interferes with the knee airbag module, remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .

   Courtesy of SUBARU OF AMERICA, INC.

3. Set the measure (b) so that it becomes straight from the brake pedal, and add a marking (c) on the masking tape (a).

   Courtesy of SUBARU OF AMERICA, INC.

4. Operate the brake pedal, and read the position where the stop light illuminates (the amount of the pedal stroke) using the marking added in the previous step.
   CAUTION: If the pedal stroke is less than 3 mm (0.12 in), it may lead to an incorrect light illumination by vibrations, etc.

Adjustment value (amount of pedal stroke):

3 mm (0.12 in) or more, 5 mm (0.2 in) or less

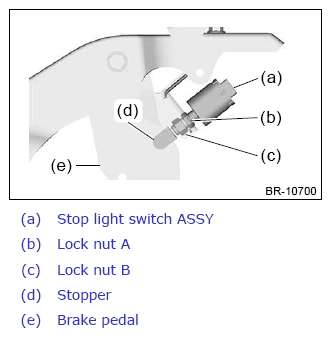

1. Loosen the lock nut A.
2. Turn the lock nut B to adjust the stop light switch assembly position so that the stop light illuminating position is within the adjustment value.
3. After adjustment, tighten the lock nut A.

   Tightening torque:

   8 N.m (0.8 kgf-m, 5.9 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

4. After the lock nut is tightened, check again that the stop light illuminating position is within the adjustment value. If it's not within the adjustment value, perform the adjustment procedure again.
   CAUTION: If the stop light illuminating position is less than 3 mm (0.12 in), it may lead to an incorrect stop light illumination by vibrations etc. even when the brake pedal is not operated while driving.
