Rear Brake Hose

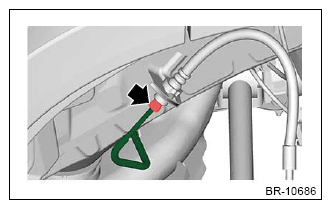

  1. Disconnect the pipe center brake rear.

    Preparation tool:

    Flare nut wrench

    G13199784Courtesy of SUBARU OF AMERICA, INC.

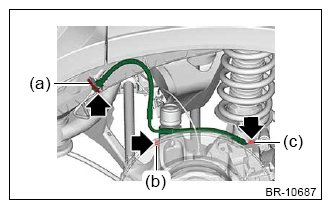

  2. Remove the clamp (a), brake hose bracket bolt (b) and union bolt (c), and remove brake hose rear.
    G13199785Courtesy of SUBARU OF AMERICA, INC.
